Power Seat: Notes

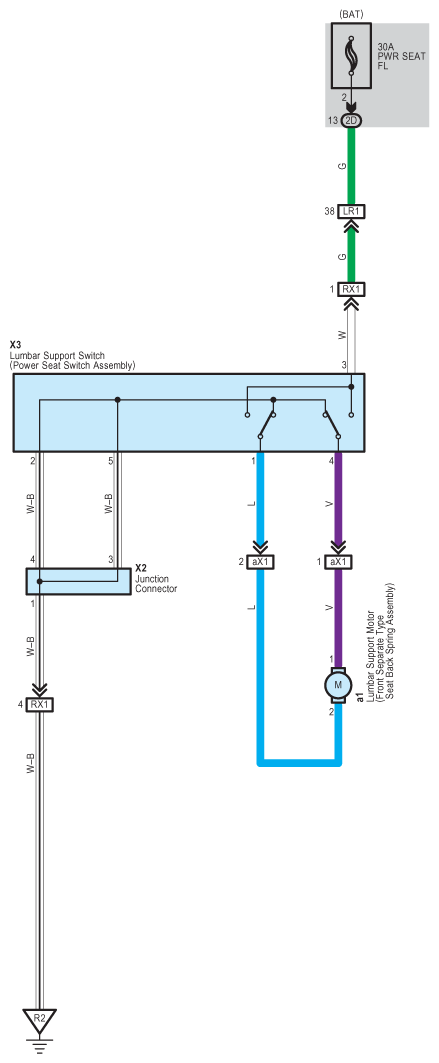

Fig 1: Power Seat System Wiring Diagram

G08862940

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
