Shift Lever
>>
Components
>>
Illustration
Shift Lever: Components: Illustration

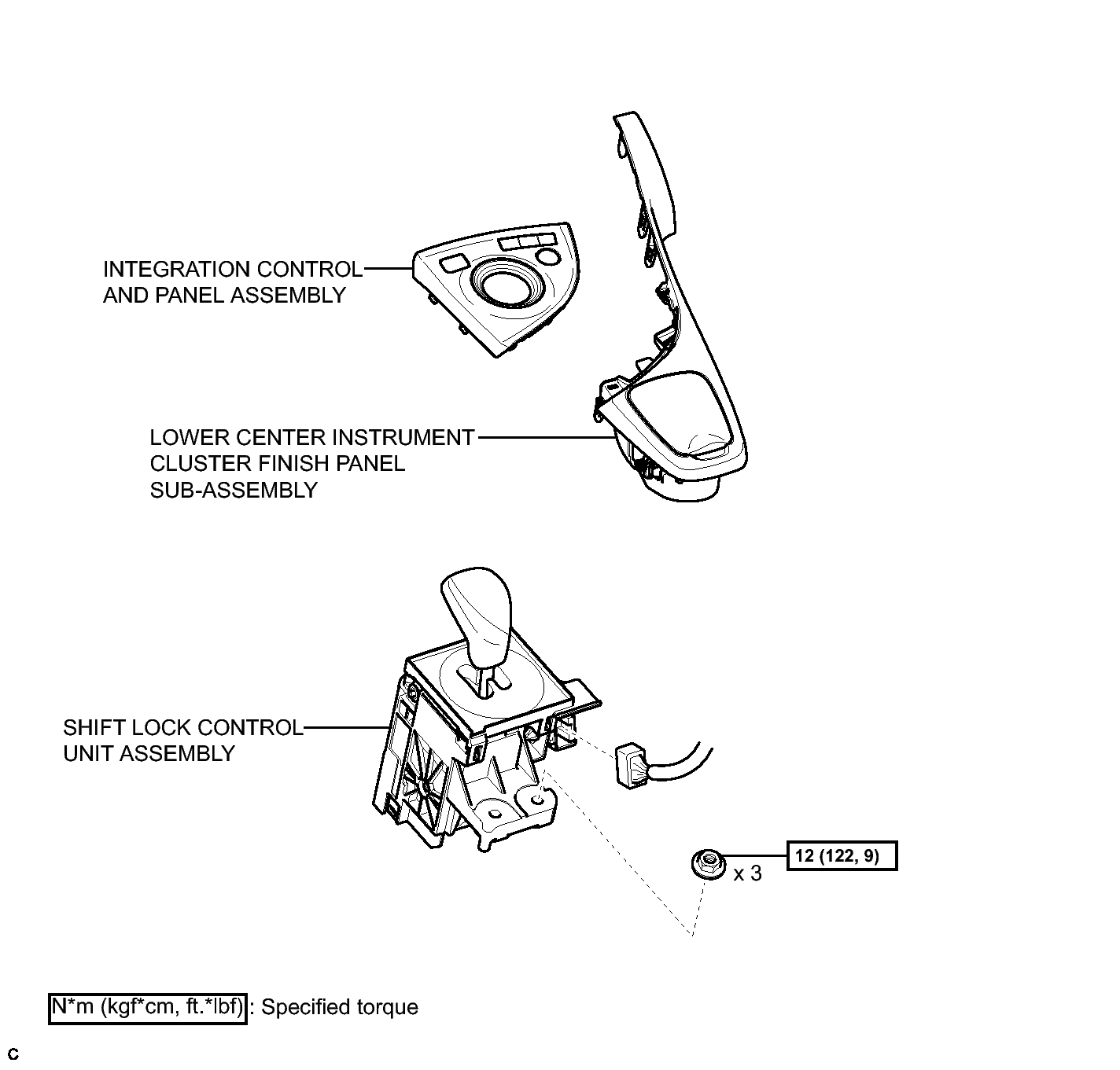

Fig 1: Identifying Identifying Shift Lever Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
