Parts Location: Illustrations

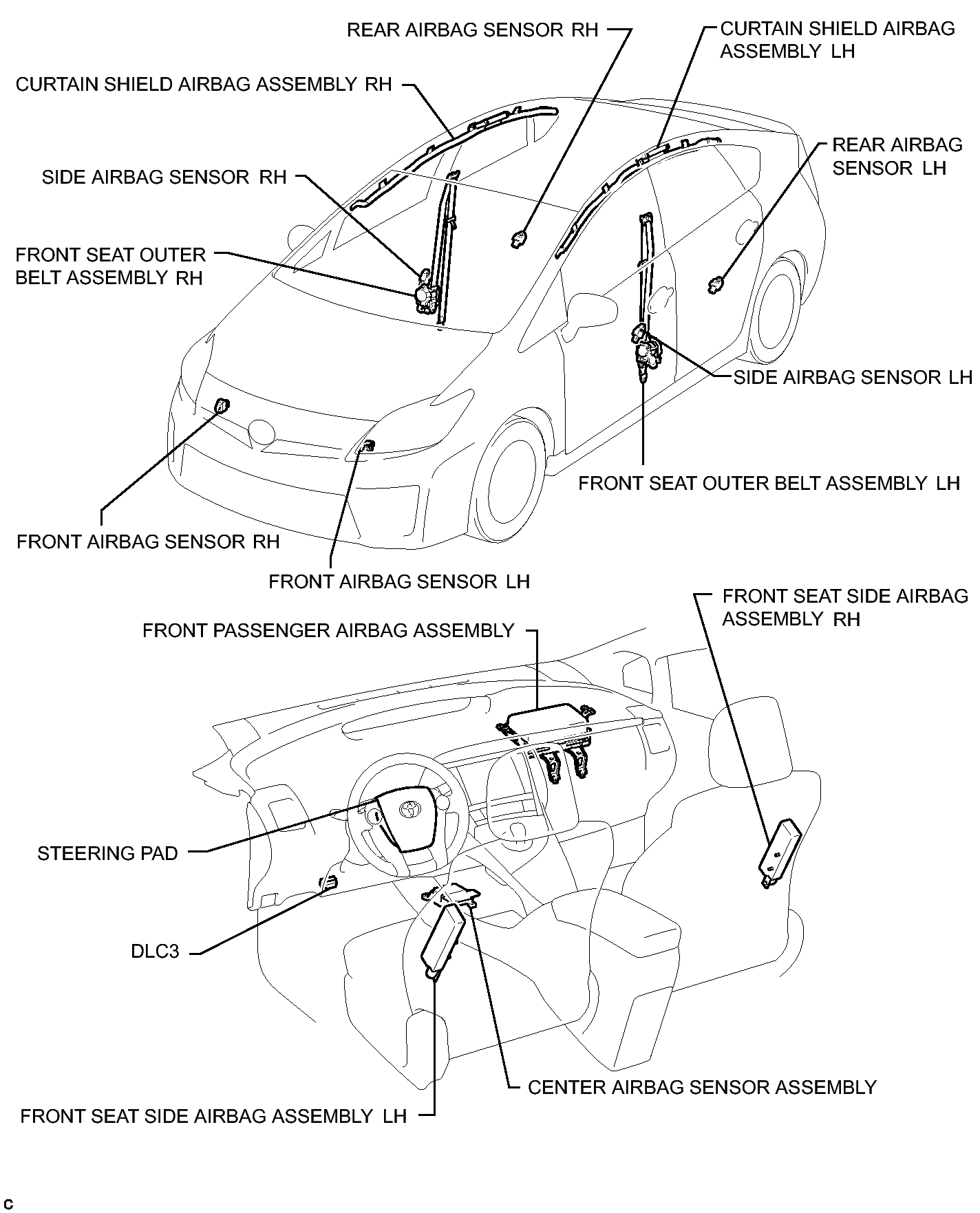

Fig 1: Identifying Airbag System Components Location (1 Of 2)
GTY341864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

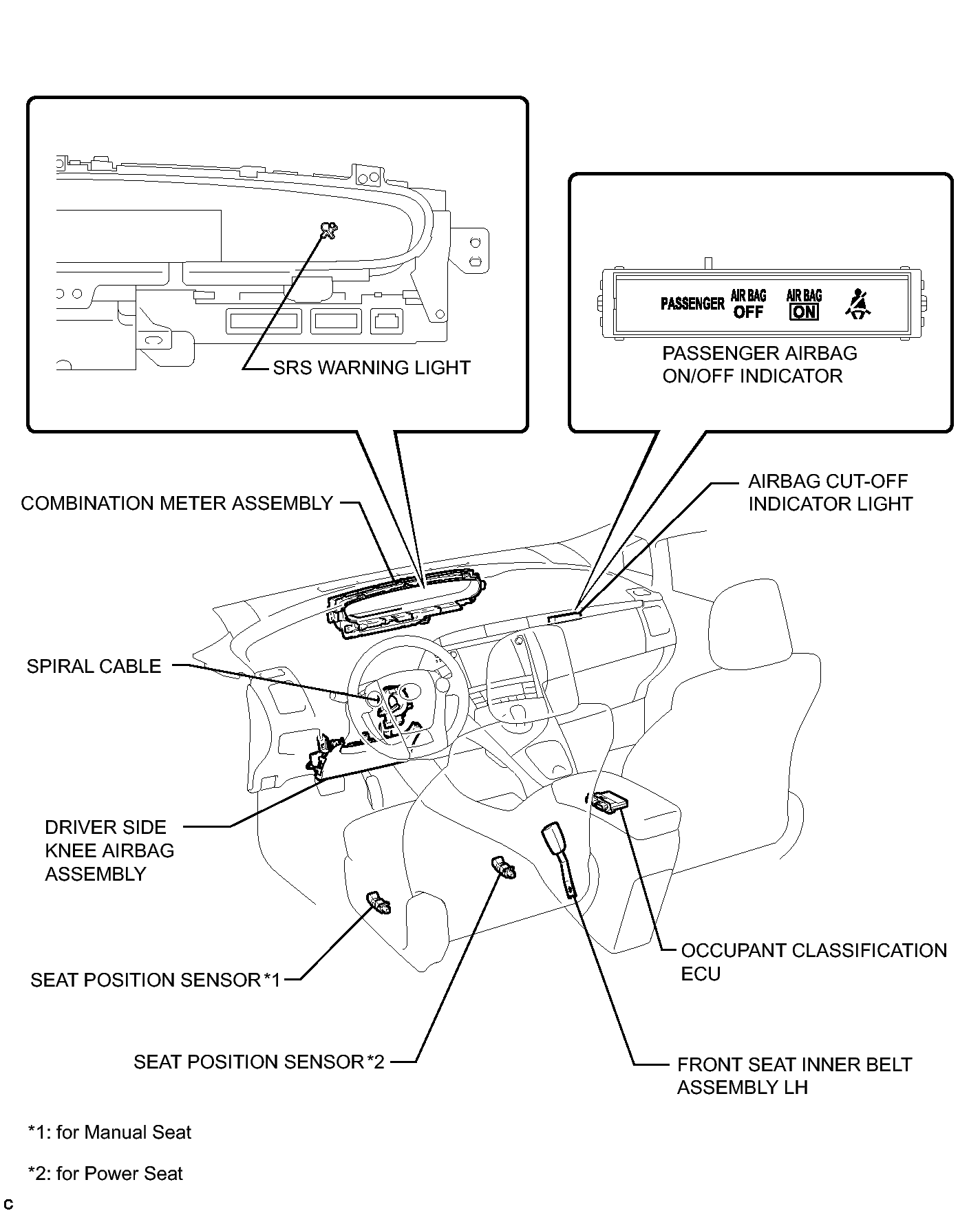

Fig 2: Identifying Airbag System Components Location (2 Of 2)
GTY325070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
