HV Relay Assembly: Components: Illustration

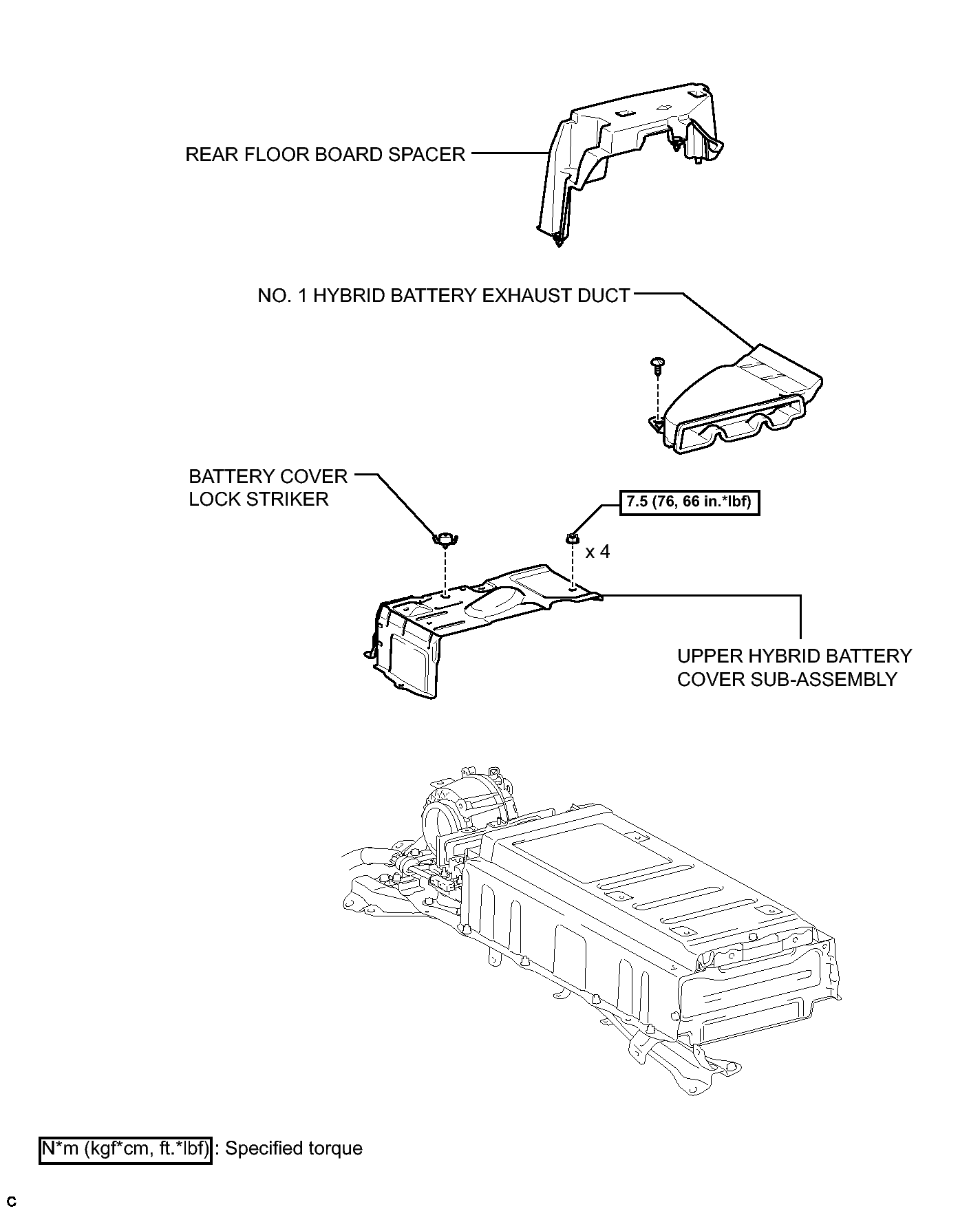

Fig 1: Identifying HV Relay Assembly Replacement Components With Torque Specifications (1 Of 2)
GTY294160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

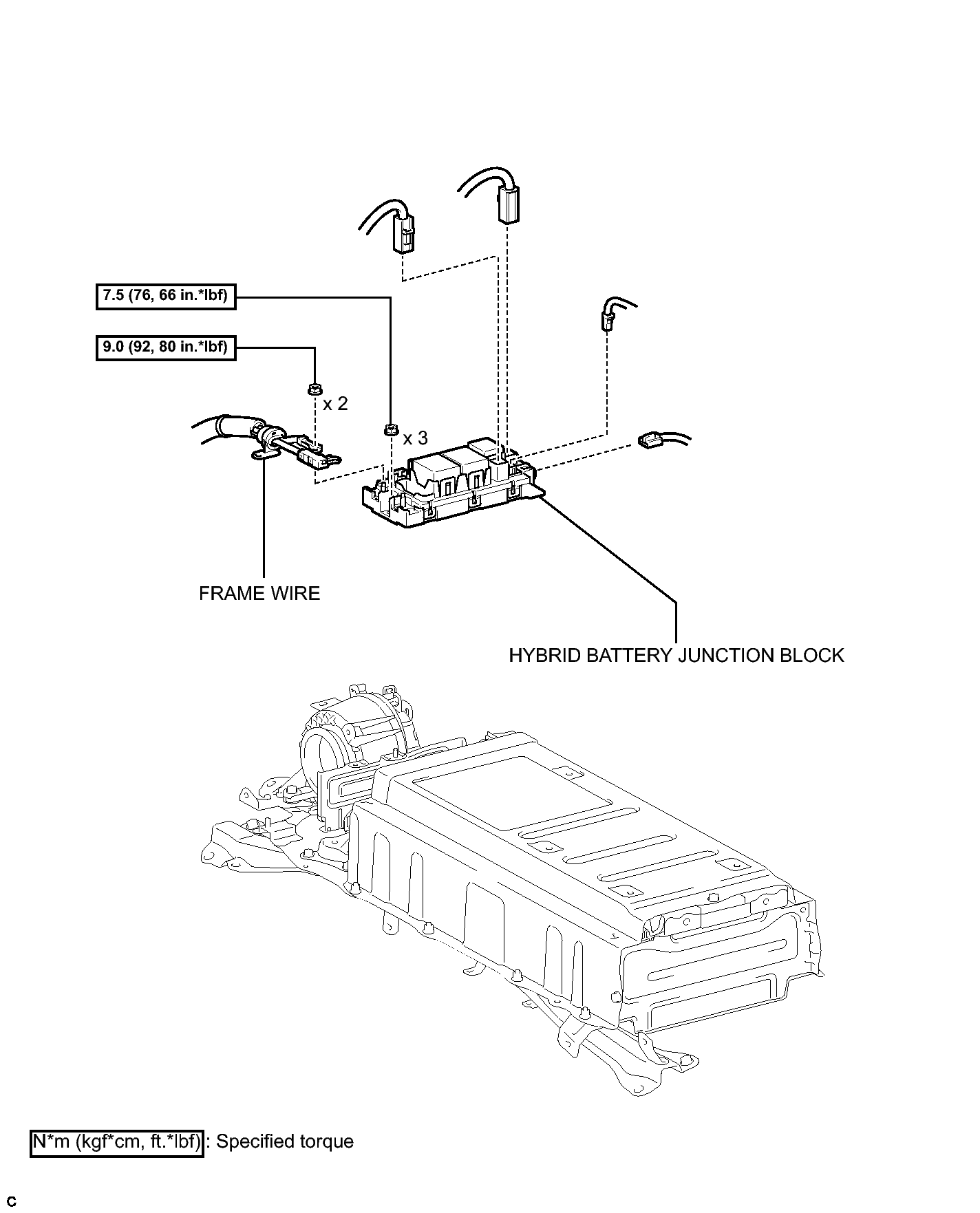

Fig 2: Identifying HV Relay Assembly Replacement Components With Torque Specifications (2 Of 2)
GTY291546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
