Lower Instrument Panel: Installation: Installation

1. When using a new lower instrument panel sub-assembly:

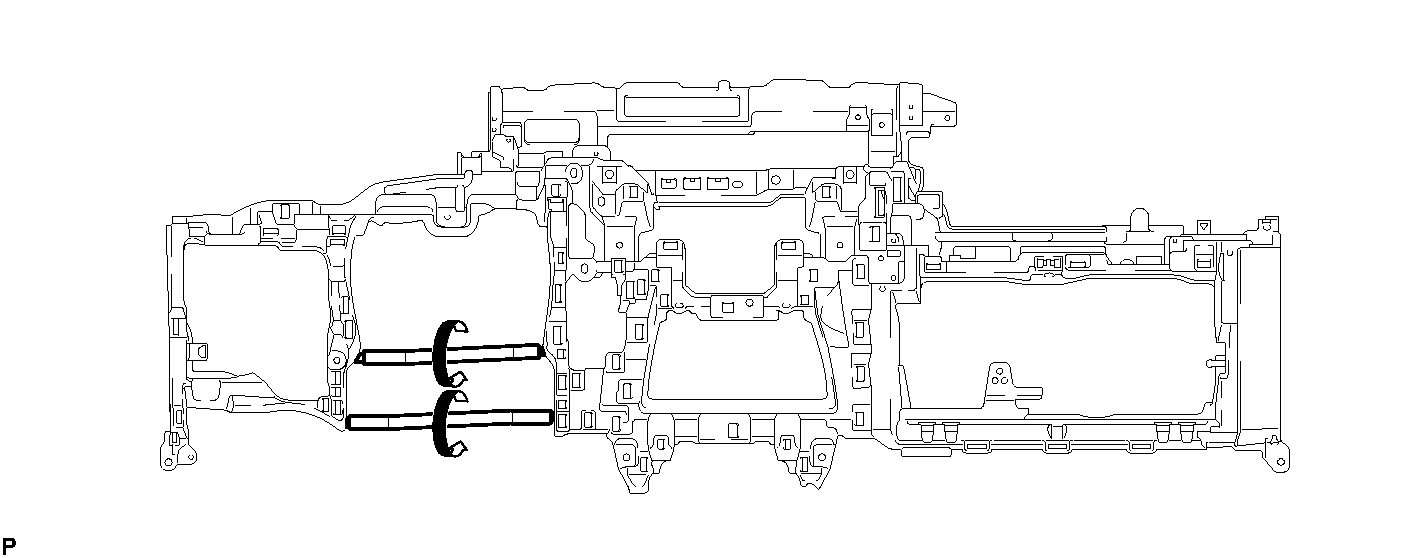

   1. Immediately before installing the lower instrument panel sub-assembly, twist and cut off the portions shown in the illustration.
      Fig 1: Twisting Off Portions Of Lower Instrument Panel Sub-Assembly

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

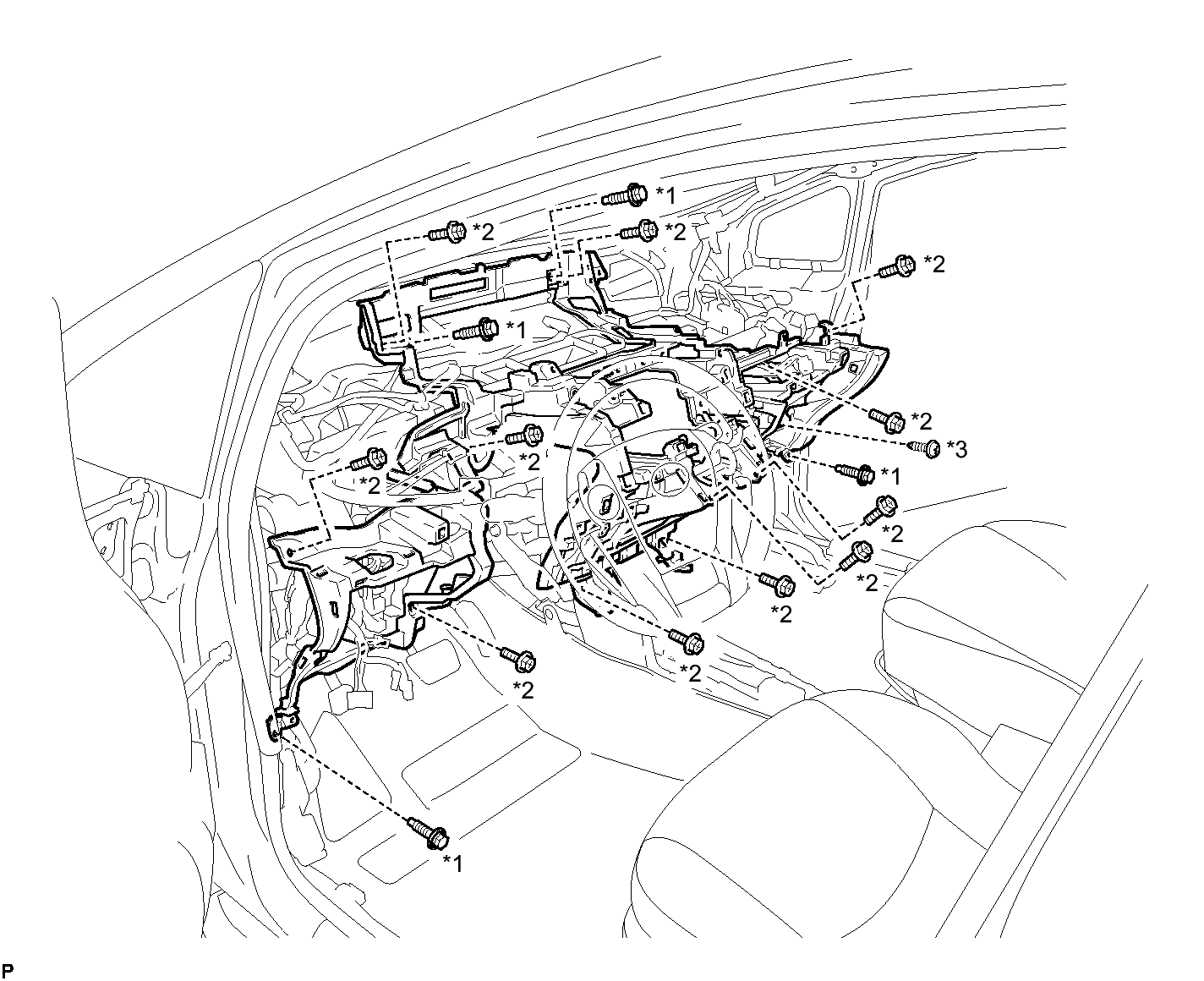

2. Install the lower instrument panel sub-assembly with the 4 bolts <B>, 11 bolts <C> and screw <E>.
   Fig 2: Identifying Lower Instrument Panel Sub-Assembly, Bolts & Screw

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1	Bolt <B>	*2	Bolt <C>
   *3	Screw <E>	-	-

3. Engage each clamp.

1. Engage the claw and guide.
2. Install the glove compartment door lock assembly with the screw <E>.

1. Install the No. 1 heater to register duct with the 3 clips.

HINT:

Use the same procedure for the RH side and LH side See step  41.

HINT:

Use the same procedure for the RH side and LH side See step  42.

1. Engage the claw to install the glove compartment door stopper sub-assembly.

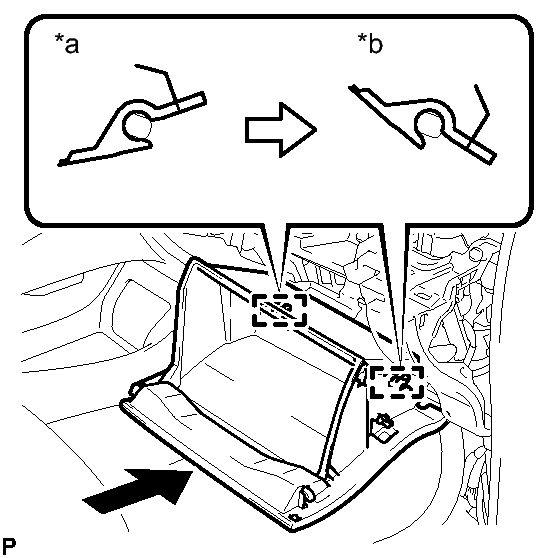

1. With the glove compartment door assembly opened approximately 55° from its closed position, engage the 2 hinges horizontally.
   Fig 3: Installing Glove Compartment Door Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *a	Opened Approximately 55°
   *b	Closed

   NOTE:

   Engaging the hinges from the top will deform the hinges. Be sure to install the glove compartment door assembly horizontally.

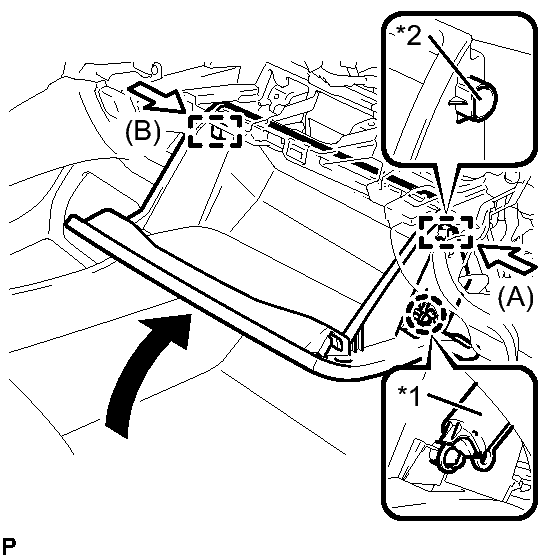

2. Slightly bend the stoppers (A) and (B) in the directions indicated by the arrows in the illustration and engage the stoppers to install the glove compartment door assembly.
   Fig 4: Installing Glove Compartment Door Assembly & Stoppers

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1	Glove Compartment Door Stopper Sub-assembly
   *2	Stopper

3. Engage the claw and connect the glove compartment door stopper sub-assembly.

1. Connect the connector.

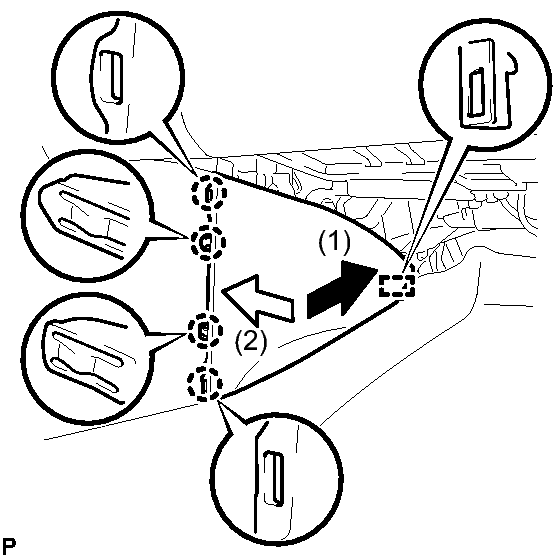

2. Engage the guide and 3 claws to install the No. 2 instrument panel under cover sub-assembly.

1. Connect each connector.

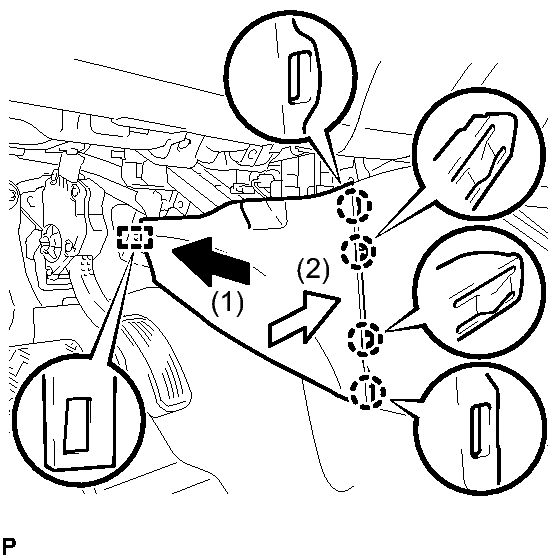

2. Engage the guide and claw.
3. Install the No. 1 instrument panel under cover sub-assembly with the 2 screws <E>.

1. Connect each connector and the air conditioning duct sub-assembly.
2. Engage the 5 claws to install the No. 1 switch hole base.

1. Temporarily install the console box assembly.

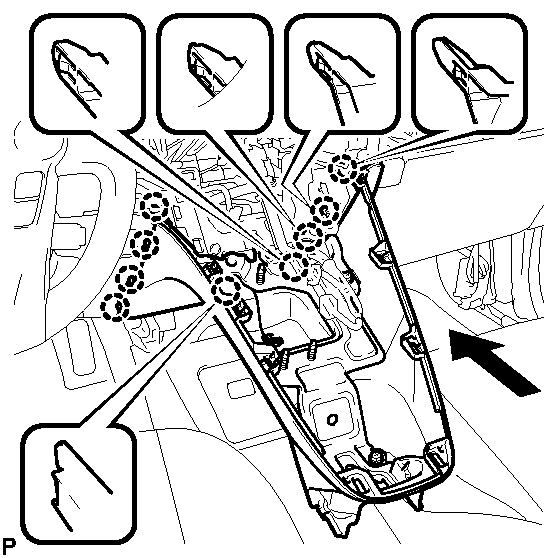

2. Engage the 9 claws as shown in the illustration.
   Fig 5: Engaging Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the upper instrument panel finish panel assembly with the 2 bolts <A>.
4. Engage the clamp.

1. Connect each connector.

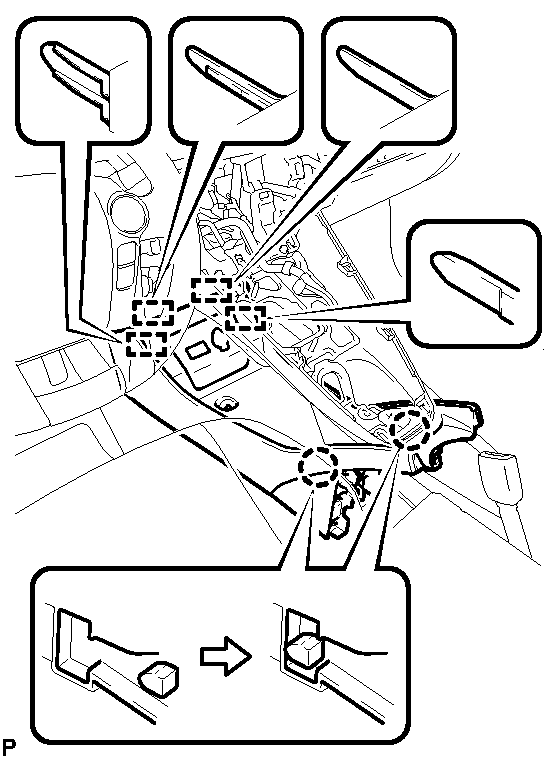

2. Engage the 4 guides and 2 claws as shown in the illustration.
   Fig 6: Engaging Guides & Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the console box assembly with the bolt <B> and 2 clips.

1. Install the box bottom mat.

1. Engage the guide and 4 claws to install the front No. 2 console box insert as shown in the illustration.
   Fig 7: Installing Front No. 2 Console Box Insert

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the guide and 4 claws to install the front No. 1 console box insert as shown in the illustration.
   Fig 8: Installing Front No. 1 Console Box Insert

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the No. 2 console box mounting bracket with the 6 bolts <B>.

Refer to INSTALLATION
