Front Console Box: Reassembly: Reassembly

WARNING: This page is about a different variant/trim than selected.

INSTALL CENTER POWER OUTLET SOCKET COVER . Refer to INSTALLATION - Step 1
INSTALL CENTER POWER OUTLET SOCKET ASSEMBLY . Refer to INSTALLATION - Step 2
INSTALL NO. 1 STEREO JACK ADAPTER ASSEMBLY . Refer to INSTALLATION - Step 1
INSTALL FRONT CONSOLE BOX FILLER SUB-ASSEMBLY . Refer to INSTALLATION - Step 3
INSTALL NO. 2 BOX SIDE PANEL

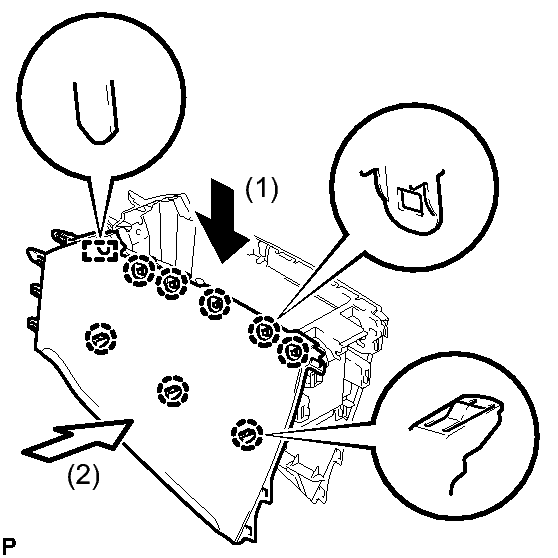

1. Engage the 8 claws and guide to install the No. 2 box side panel as shown in the illustration.

  Fig 1: Installing No. 2 Box Side Panel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 BOX SIDE PANEL
HINT:

Use the same procedure as for the No. 2 box side panel.
INSTALL NO. 2 CONSOLE COMPARTMENT DOOR INSERT

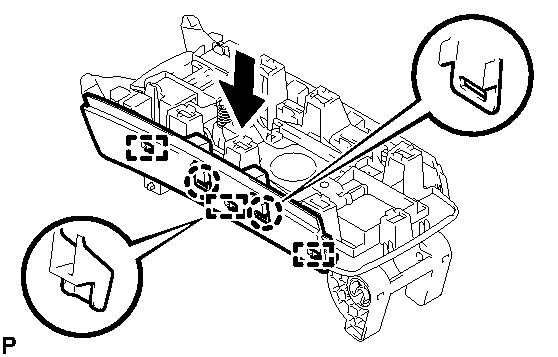

1. Engage the 2 claws and 3 guides to install the No. 2 console compartment door insert as shown in the illustration.

  Fig 2: Installing No. 2 Console Compartment Door Insert
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 CONSOLE COMPARTMENT DOOR INSERT
HINT:

Use the same procedure as for the No. 2 console compartment door insert.
INSTALL REAR CONSOLE COMPARTMENT DOOR BOX COVER

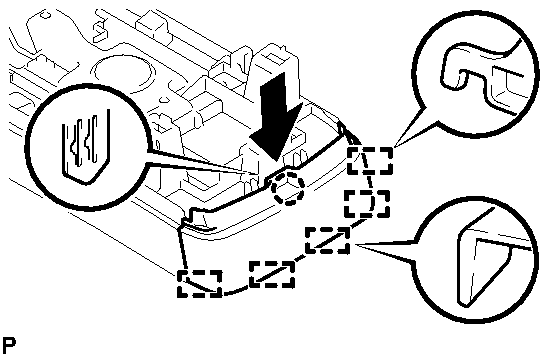

1. Engage the claw and 5 guides to install the rear console compartment door box cover as shown in the illustration.

  Fig 3: Engaging Claws & Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE COMPARTMENT DOOR PAD SUB-ASSEMBLY

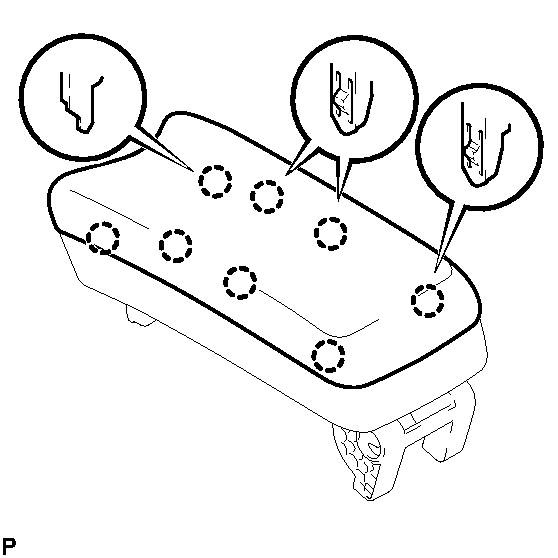

1. Engage the 8 claws to install the console compartment door pad sub-assembly.

  Fig 4: Identifying Console Compartment Door Pad Sub-Assembly Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY
1. Temporarily install the console compartment door sub-assembly.

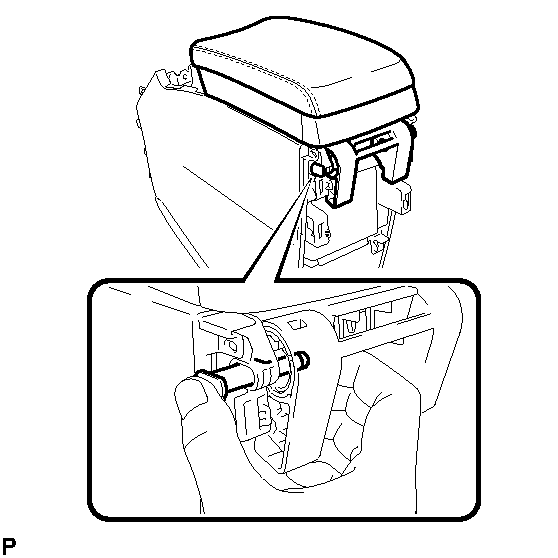

2. Push in the box door hinge shafts by hand as far as possible.

  Fig 5: Installing Box Door Hinge Shafts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:
  - The illustration is for the LH side.
  - Use the same procedure for the RH side and LH side.

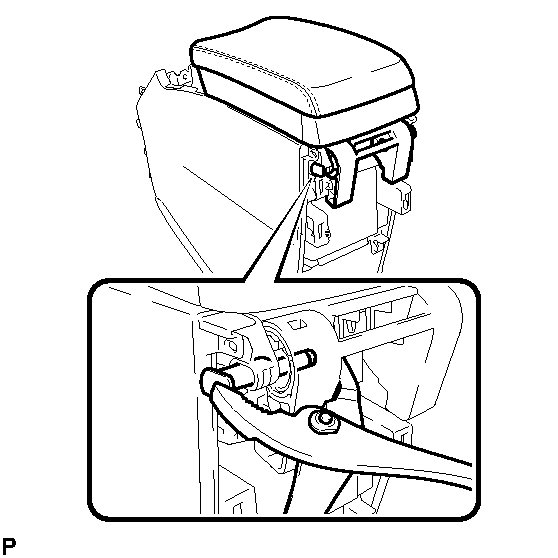

3. Using pliers, push in the box door hinge shafts completely and install the console compartment door sub-assembly.

  Fig 6: Installing Box Door Hinge Shafts Completely Using Pliers
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:
  - The illustration is for the LH side.
  - Use the same procedure for the RH side and LH side.
INSTALL CONSOLE REAR END PANEL

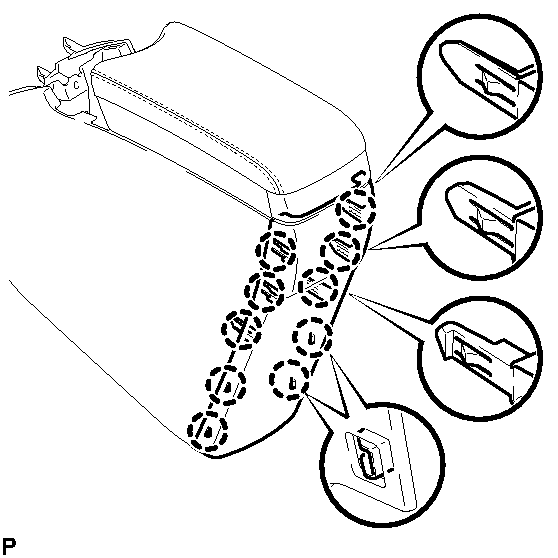

1. Engage the 10 claws to install the console rear end panel.

  Fig 7: Identifying Console Rear End Panel & Claws (W/ Power Outlet Socket)
