  1. INSTALL PATTERN SELECT SWITCH ASSEMBLY
    1. Engage the 2 claws to install the pattern select switch assembly.

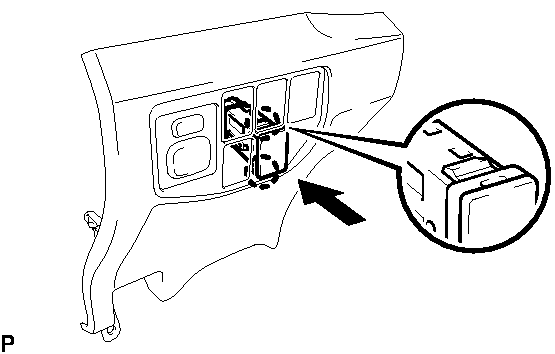

      Fig 1: Installing Pattern Select Switch Assembly
      GTY334255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY  . Refer to INSTALLATION - Step 22
  3. INSTALL COWL SIDE TRIM BOARD LH  . Refer to INSTALLATION - Step 41
  4. INSTALL FRONT DOOR SCUFF PLATE LH  . Refer to INSTALLATION - Step 42
