Combination Meter: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

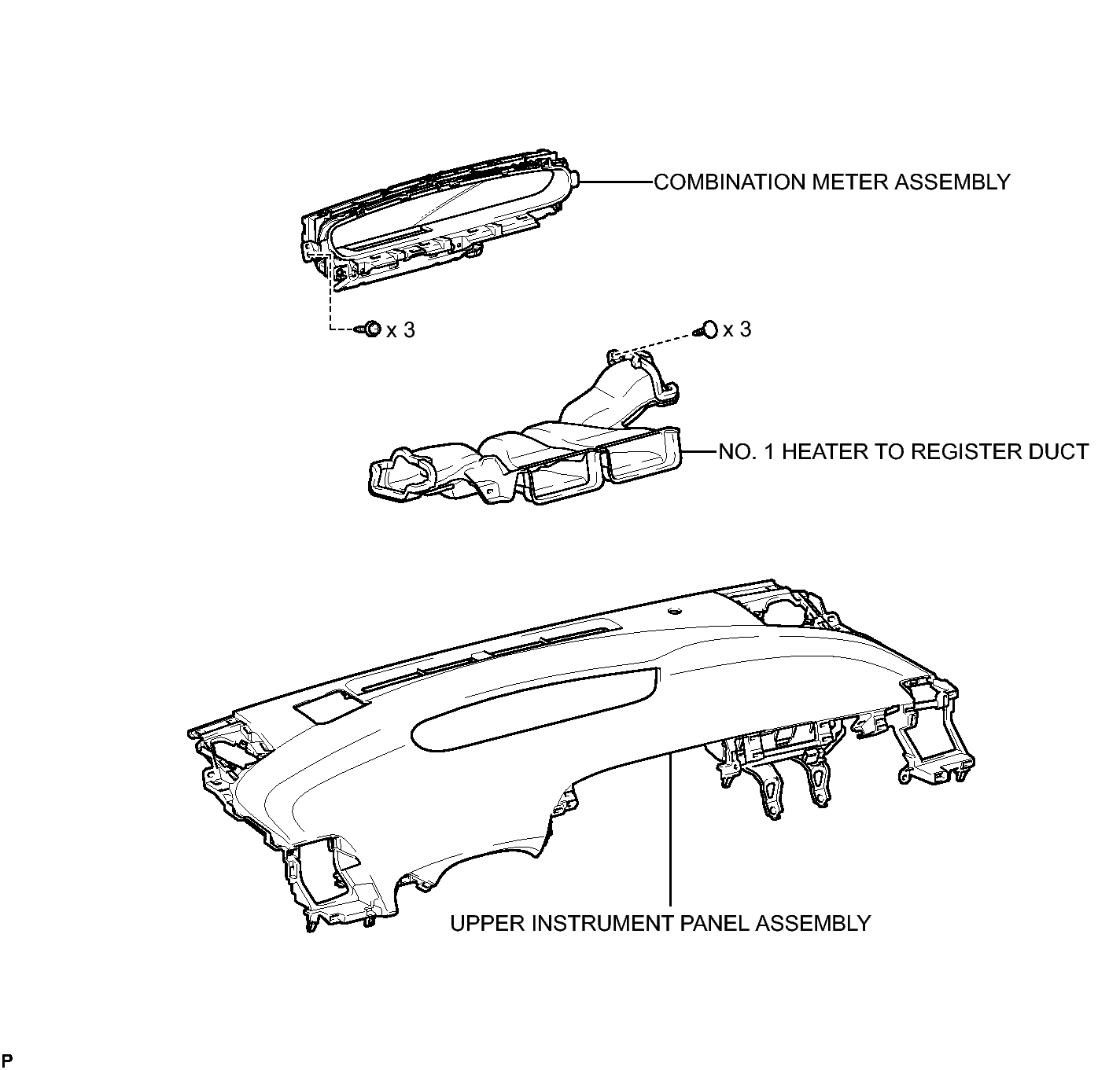

Fig 1: Identifying Combination Meter Replacement Components (1 Of 2)
GTY342765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

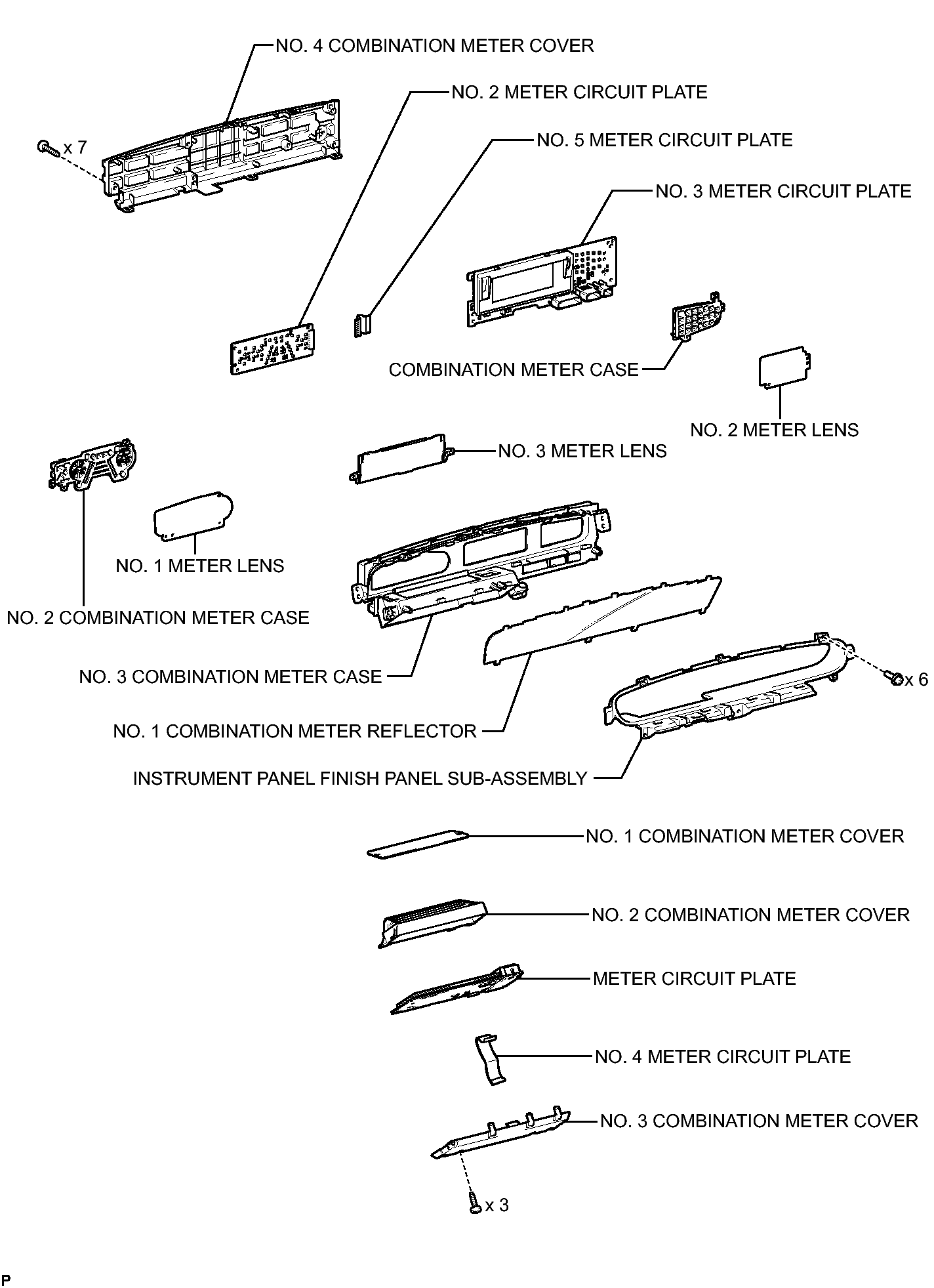

Fig 1: Identifying Combination Meter Replacement Components (2 Of 2)
GTY222937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
