Section 2 (Hybrid Battery Control System (Plug-In) (Service Information))
>>
Inverter With Converter
>>
Components
>>
Illustration
Inverter With Converter: Components: Illustration
WARNING:
This page is about a different variant/trim than selected.

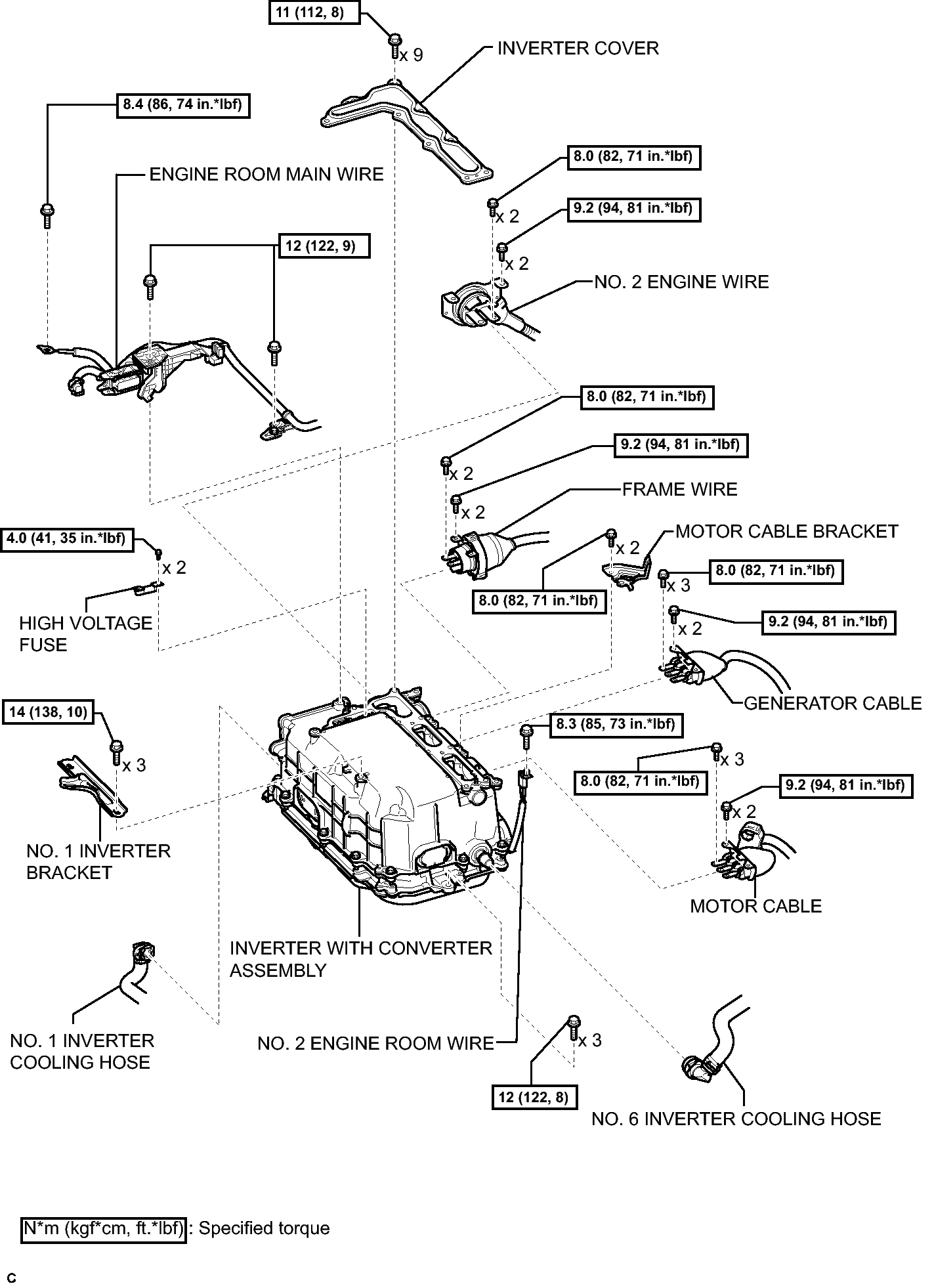

Fig 1: Identifying Inverter With Converter Assembly Replacement Components (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

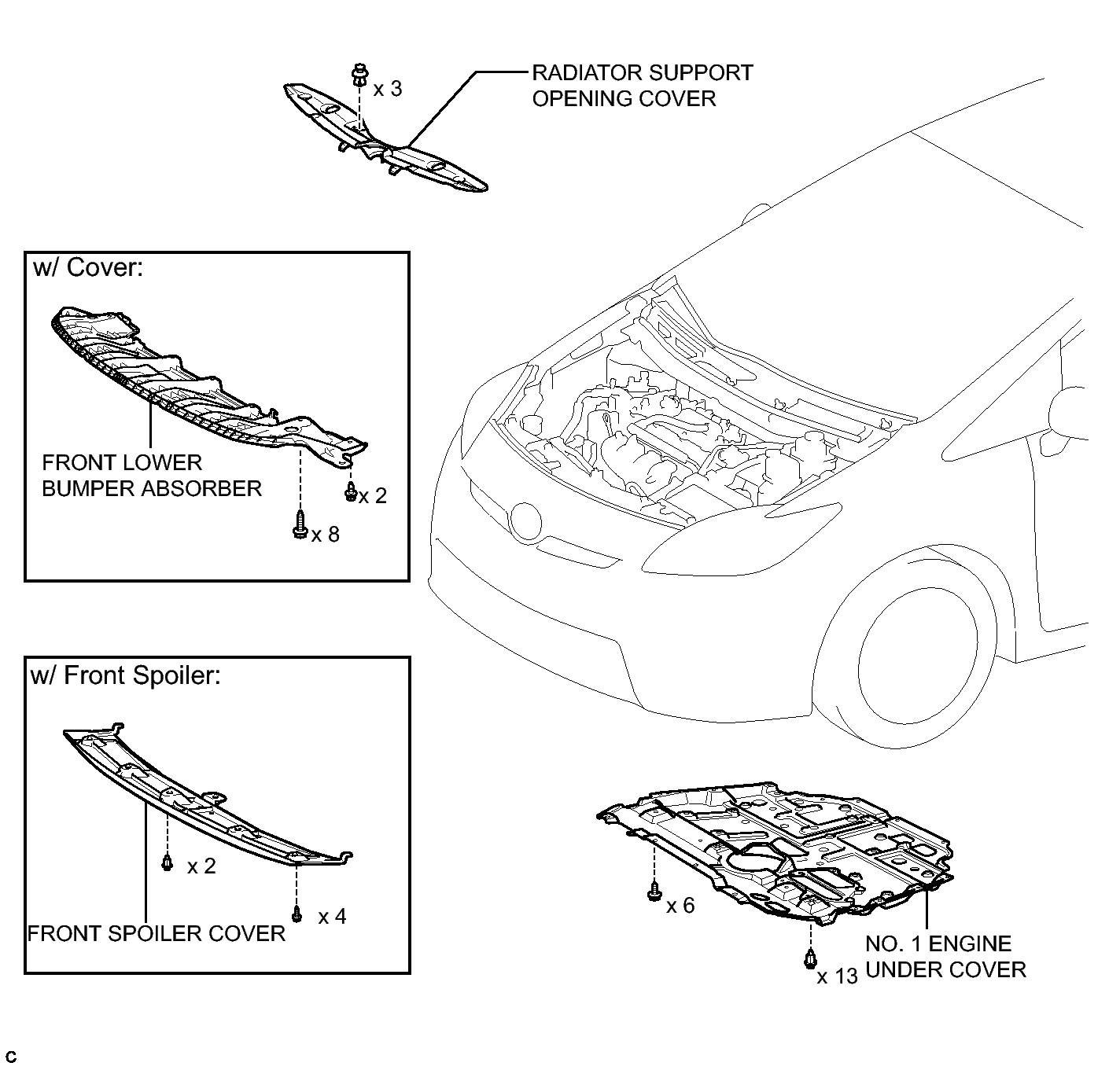

Fig 1: Identifying Inverter With Converter Assembly Replacement Components (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Inverter With Converter Assembly Replacement Components With Torque Specifications (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
