Rear Wiper and Washer: Notes

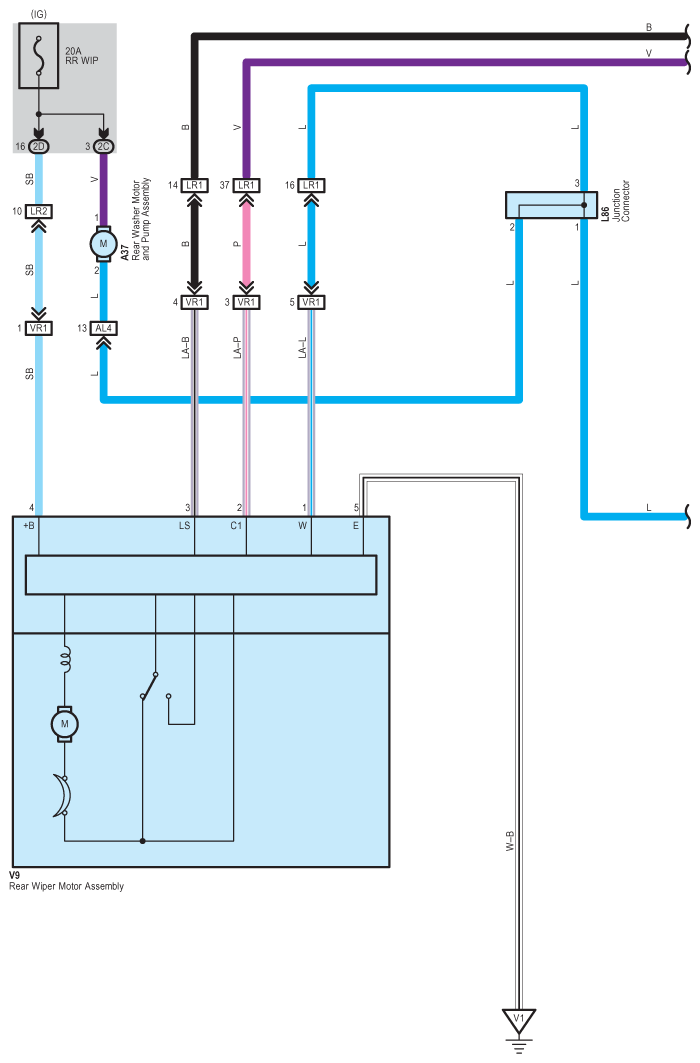

Fig 1: Rear Wiper And Washer System Wiring Diagram (1 Of 2)
G08850075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

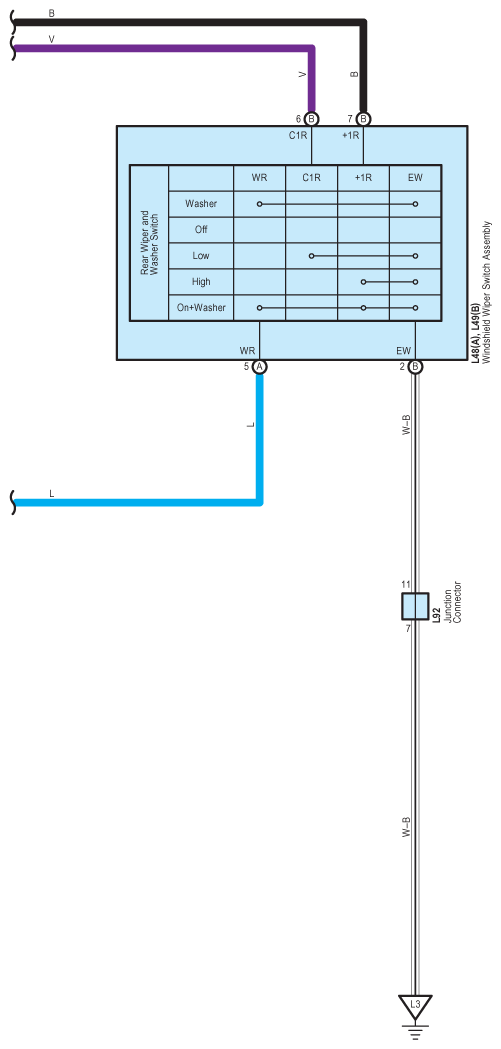

Fig 2: Rear Wiper And Washer System Wiring Diagram (2 Of 2)
G08850076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
