Audio Receiver Assembly Communication Stop Mode: Wiring Diagram

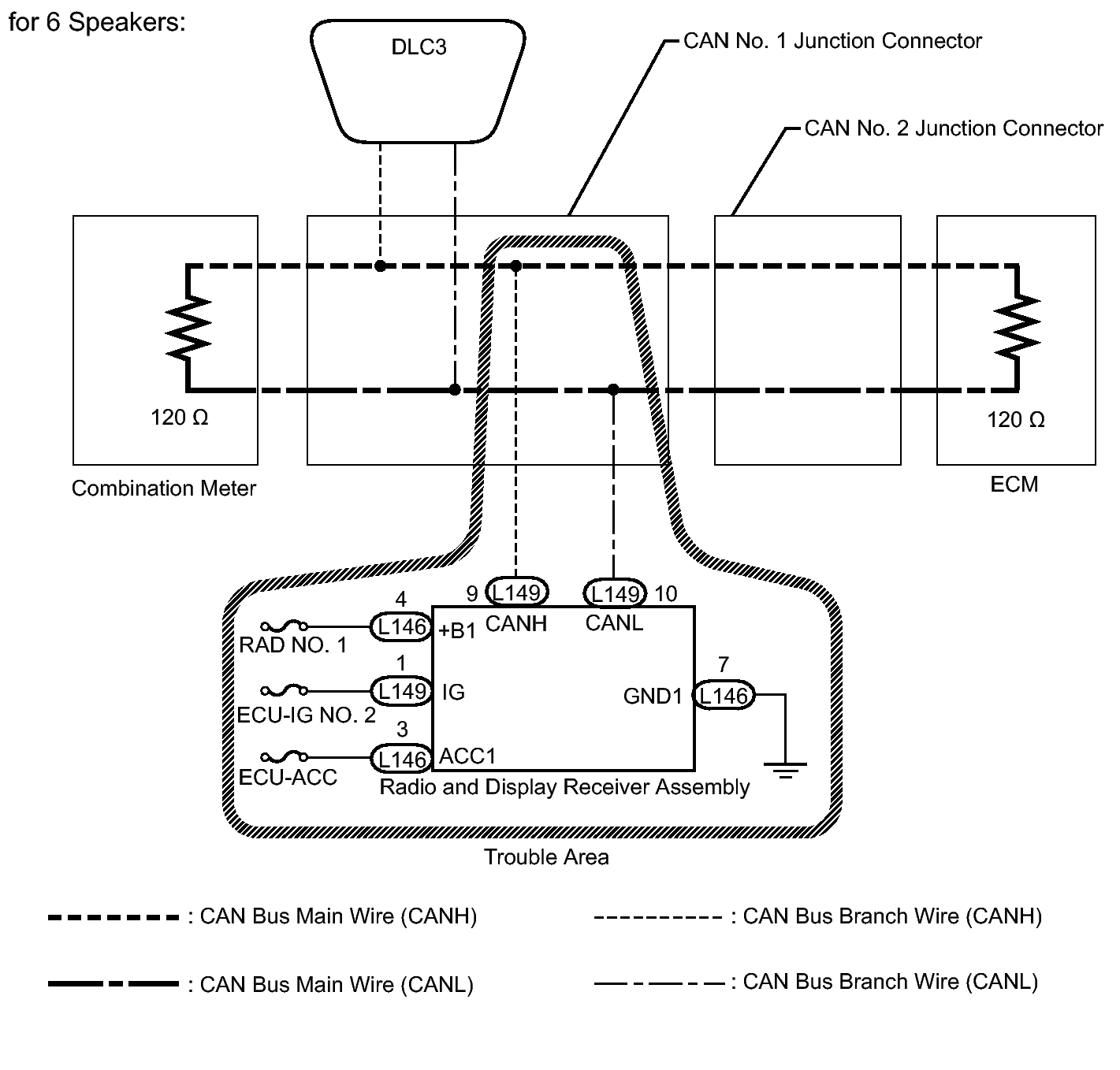

Fig 1: Audio Receiver Assembly Communication Stop Mode (1 Of 2)
GTY338275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

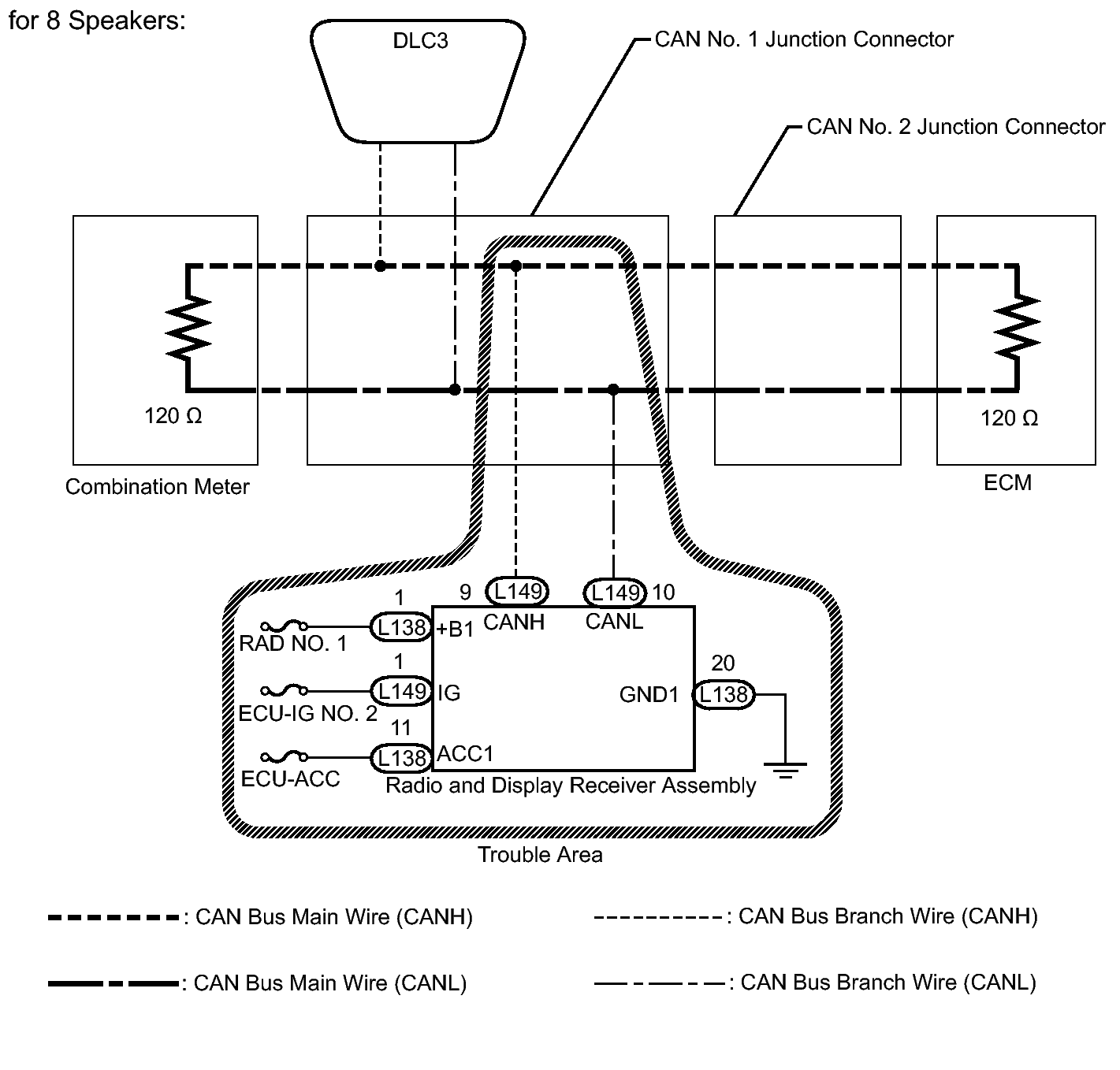

Fig 2: Audio Receiver Assembly Communication Stop Mode (2 Of 2)
GTY325056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
