Generator Cable: Removal: Removal

PRECAUTION
HINT:

Refer to PRECAUTION
REMOVE REAR NO. 2 FLOOR BOARD (for Separate Type) . Refer to REMOVAL - Step 1
REMOVE REAR DECK FLOOR BOX . Refer to REMOVAL - Step 2
REMOVE REAR NO. 3 FLOOR BOARD . Refer to REMOVAL - Step 3
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
REMOVE SERVICE PLUG GRIP . Refer to REMOVAL - Step 6
REMOVE FRONT SPOILER COVER (w/ Front Spoiler)
REMOVE ENGINE UNDER COVER (w/ Cover)
REMOVE NO. 1 ENGINE UNDER COVER
DRAIN COOLANT (for Engine) . Refer to REPLACEMENT - Step 2
DRAIN COOLANT (for Inverter) . Refer to REPLACEMENT - Step 3
REMOVE RADIATOR SUPPORT OPENING COVER . Refer to REMOVAL - Step 1
REMOVE NO. 1 INVERTER BRACKET . Refer to REMOVAL - Step 12
DISCONNECT ENGINE ROOM MAIN WIRE . Refer to REMOVAL - Step 13
REMOVE INVERTER TERMINAL COVER . Refer to REMOVAL - Step 14
CHECK TERMINAL VOLTAGE . Refer to REMOVAL - Step 15
DISCONNECT FRAME WIRE . Refer to REMOVAL - Step 16
DISCONNECT HIGH VOLTAGE CABLE OF FRONT TRANSAXLE . Refer to REMOVAL - Step 17
DISCONNECT NO. 2 ENGINE WIRE . Refer to REMOVAL - Step 18
INSTALL INVERTER TERMINAL COVER . Refer to REMOVAL - Step 19
DISCONNECT NO. 2 ENGINE ROOM WIRE . Refer to REMOVAL - Step 20
DISCONNECT WATER HOSE . Refer to REMOVAL - Step 21
REMOVE INVERTER WITH CONVERTER ASSEMBLY . Refer to REMOVAL - Step 22
REMOVE INVERTER RESERVE TANK ASSEMBLY . Refer to REMOVAL - Step 46
REMOVE INVERTER TRAY BRACKET . Refer to REMOVAL - Step 47
REMOVE RADIATOR PIPE
1. Disconnect the clamps, No. 1 radiator hose, No. 4 water by-pass hose and No. 3 radiator hose.

  Fig 1: Identifying Radiator Pipe, No. Hose, No. Bypass Hose, No. Radiator Hose & Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts and radiator pipe.
REMOVE GENERATOR CABLE
NOTE:
Wear insulated gloves.
1. Disconnect the generator cable clamp from the motor cable bracket.

  Fig 2: Identifying Generator Cable Clamp & Motor Cable Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

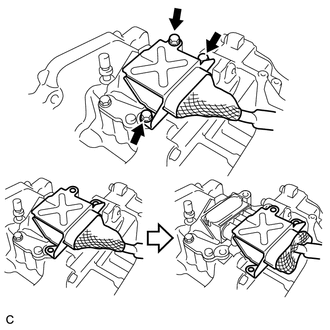

2. Remove the 3 bolts and slide the generator cable connector shell back.

  Fig 3: Identifying Cable Connector Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disengage the 2 claws to remove the terminal cap.

  Fig 4: Identifying Terminal Cap & Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the 3 bolts and generator cable from the hybrid transaxle assembly.

  Fig 5: Identifying Generator Cable & Hybrid Transaxle Assembly & Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
