System Diagram

Fig 1: Identifying Hybrid Control System Diagram (1 Of 4)
GTY332712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

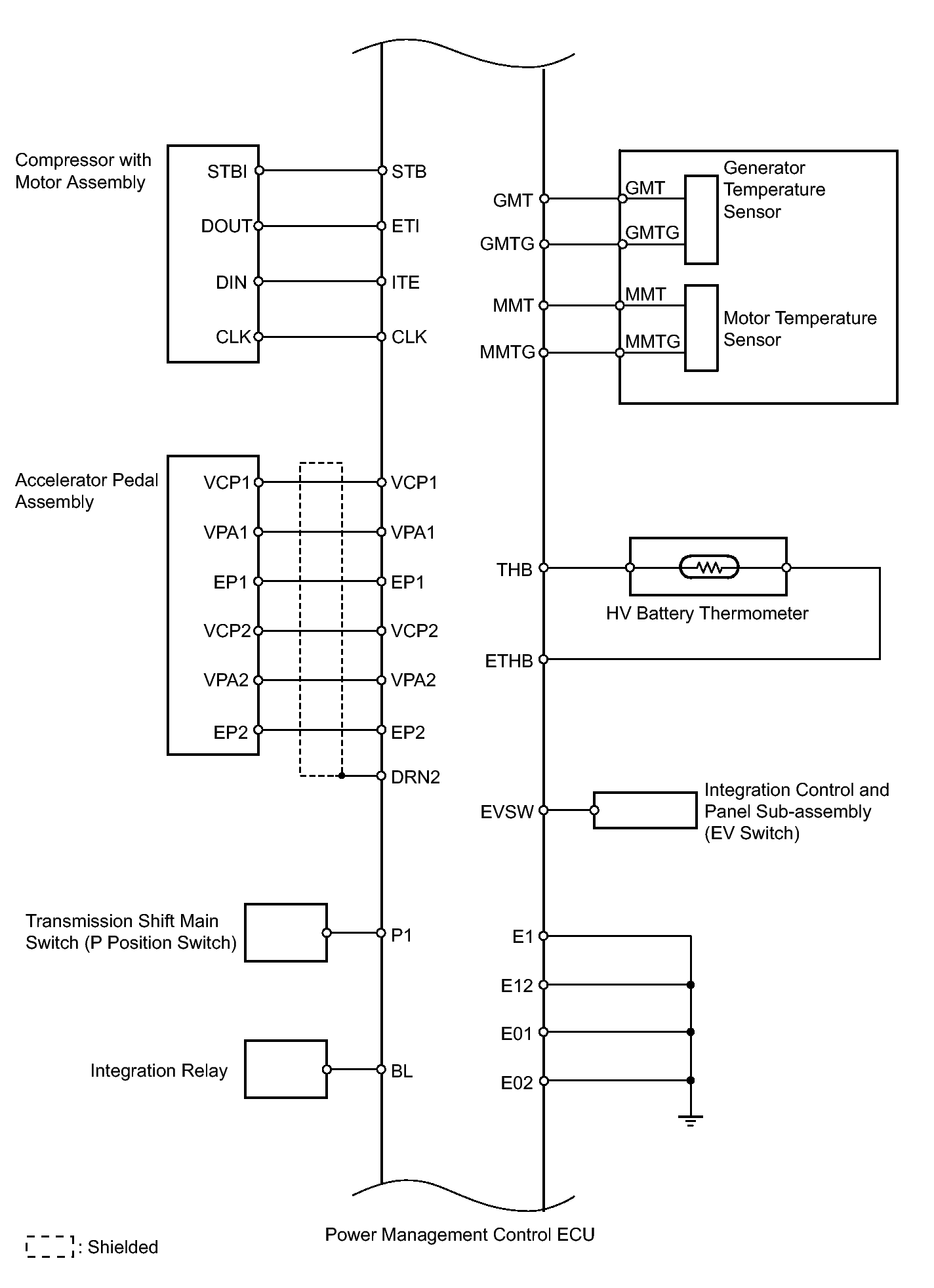

Fig 2: Identifying Hybrid Control System Diagram (2 Of 4)
GTY291919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Hybrid Control System Diagram (3 Of 4)
GTY336427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Hybrid Control System Diagram (4 Of 4)
GTY291704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
