Section 57 (Lighting System (Exterior) (Plug-In) (Service Information))
>>
Rear Combination Light Assembly
>>
Components
>>
Illustration
Rear Combination Light Assembly: Components: Illustration
WARNING:
This page is about a different variant/trim than selected.

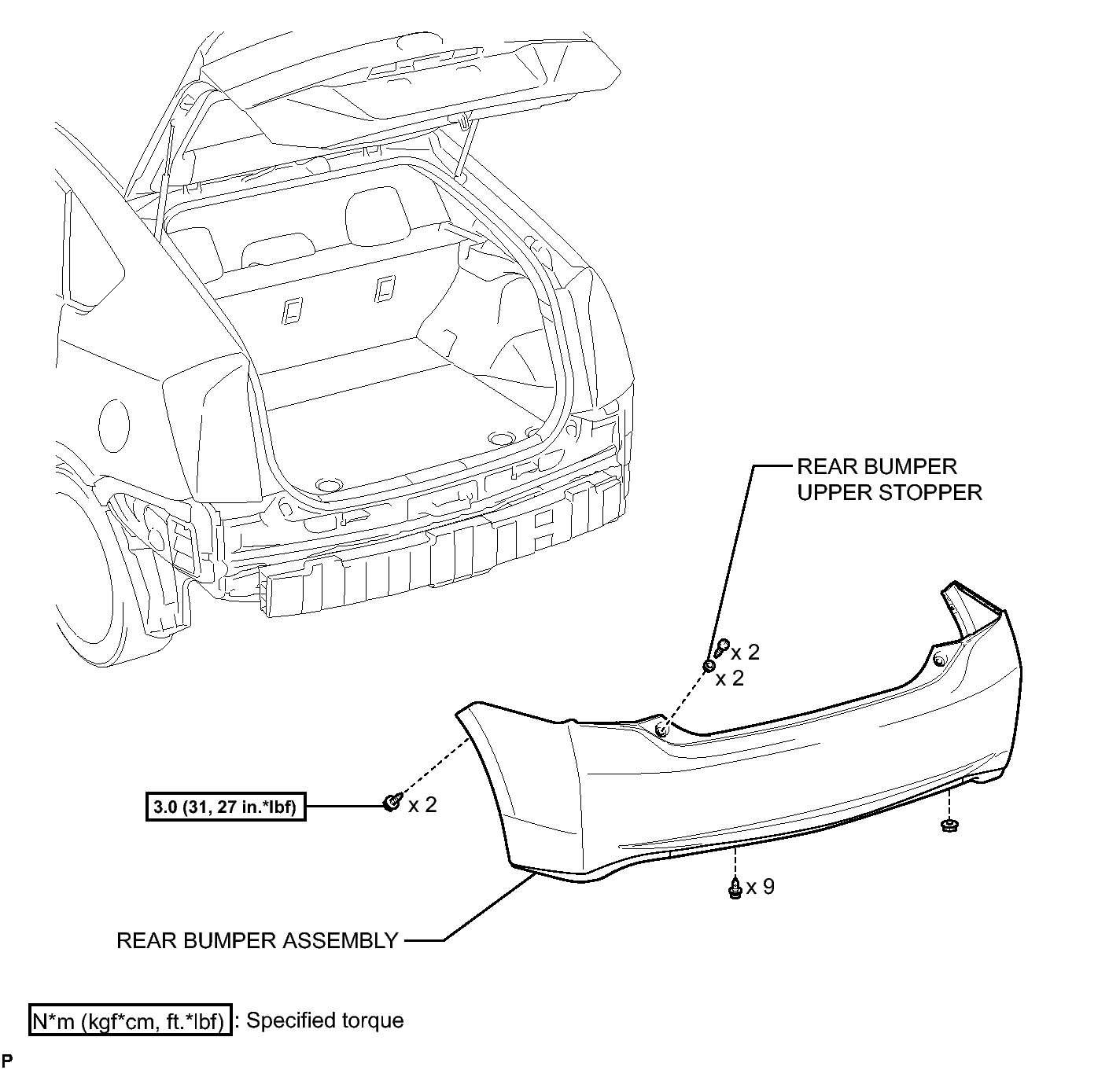

Fig 1: Identifying Rear Combination Light Assembly Replacement Components With Torque Specifications (1 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

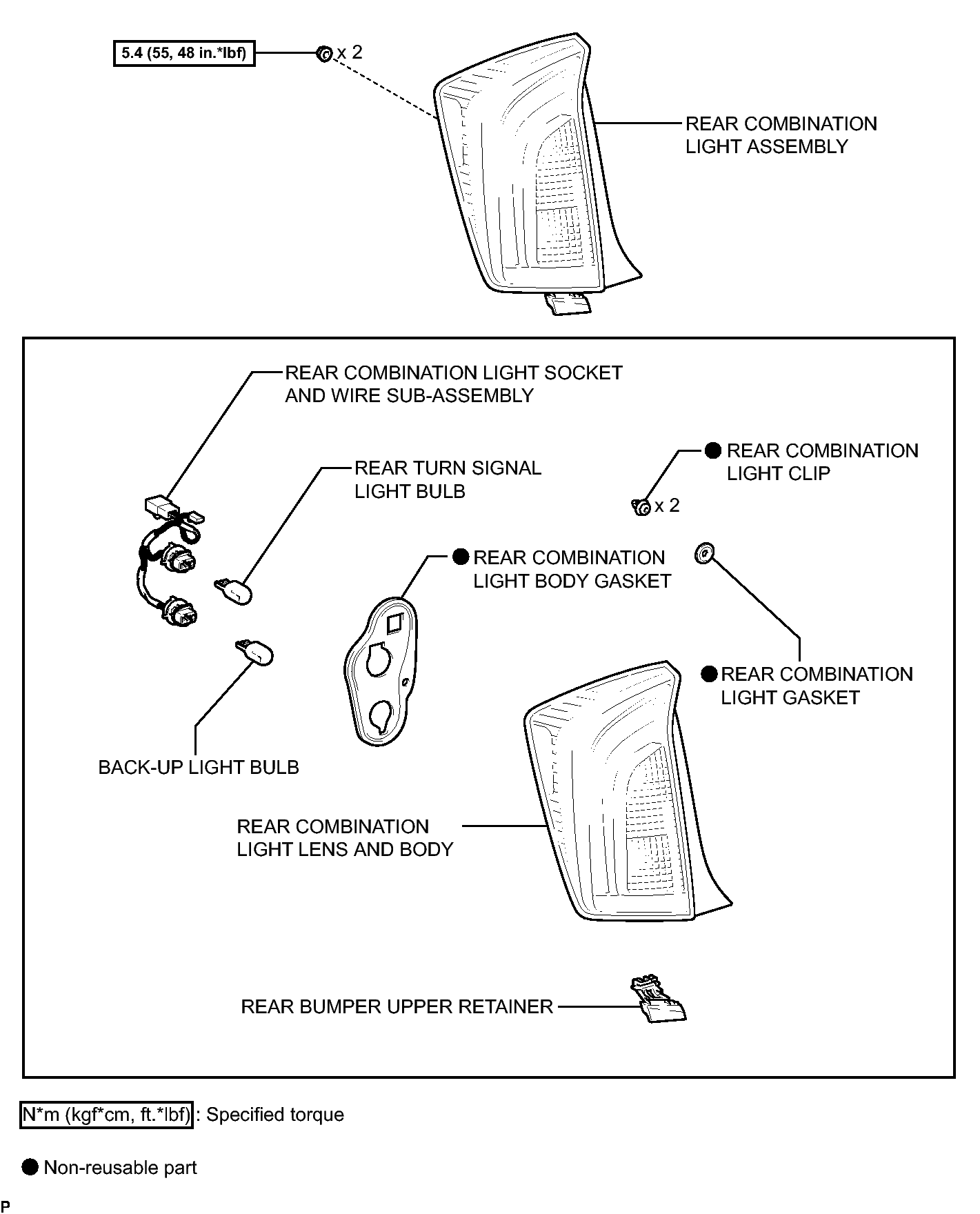

Fig 1: Identifying Rear Combination Light Assembly Replacement Components With Torque Specifications (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Rear Combination Light Assembly Replacement Components (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Rear Combination Light Assembly Replacement Components (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Rear Combination Light Assembly Replacement Components With Torque Specifications (5 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
