High Mounted Stop Light Assembly: Inspection: Inspection

WARNING: This page is about a different variant/trim than selected.

INSPECT CENTER STOP LIGHT SET

Connect a positive (+) lead from the auxiliary battery to terminal 2 and a negative (-) lead to terminal 1.

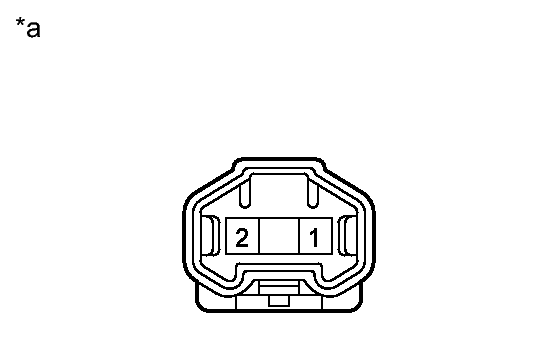

Fig 1: Identifying Center Stop Light Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check that the center stop light comes on.

The light comes on.

TEXT IN ILLUSTRATION

*a	Component without harness connected (Center Stop Light Set)

If the result is not as specified, replace the center stop light set.
