Front Turn Signal Light Assembly: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

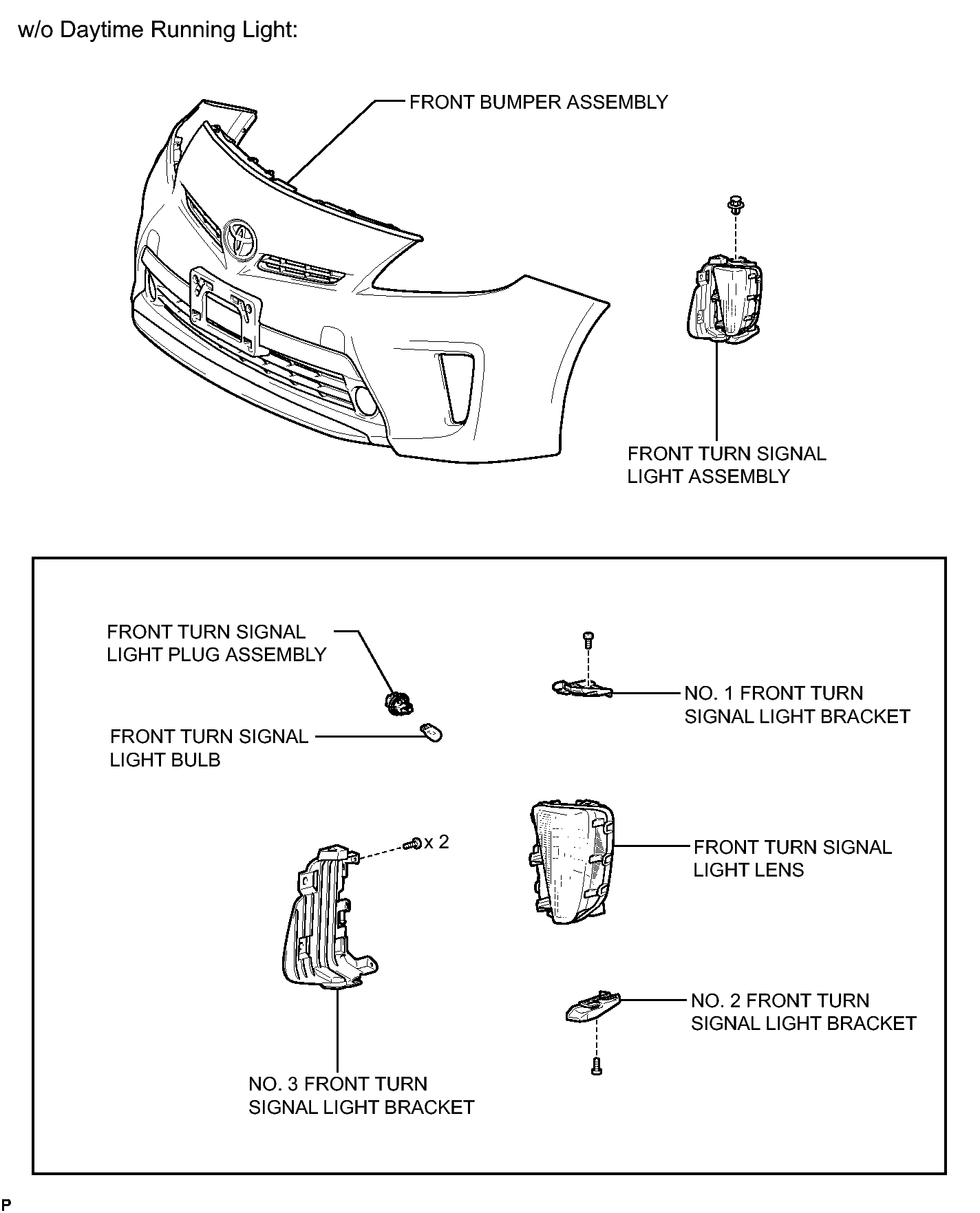

Fig 1: Identifying Front Turn Signal Light Assembly Replacement Components (1 Of 2)
GTY323810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

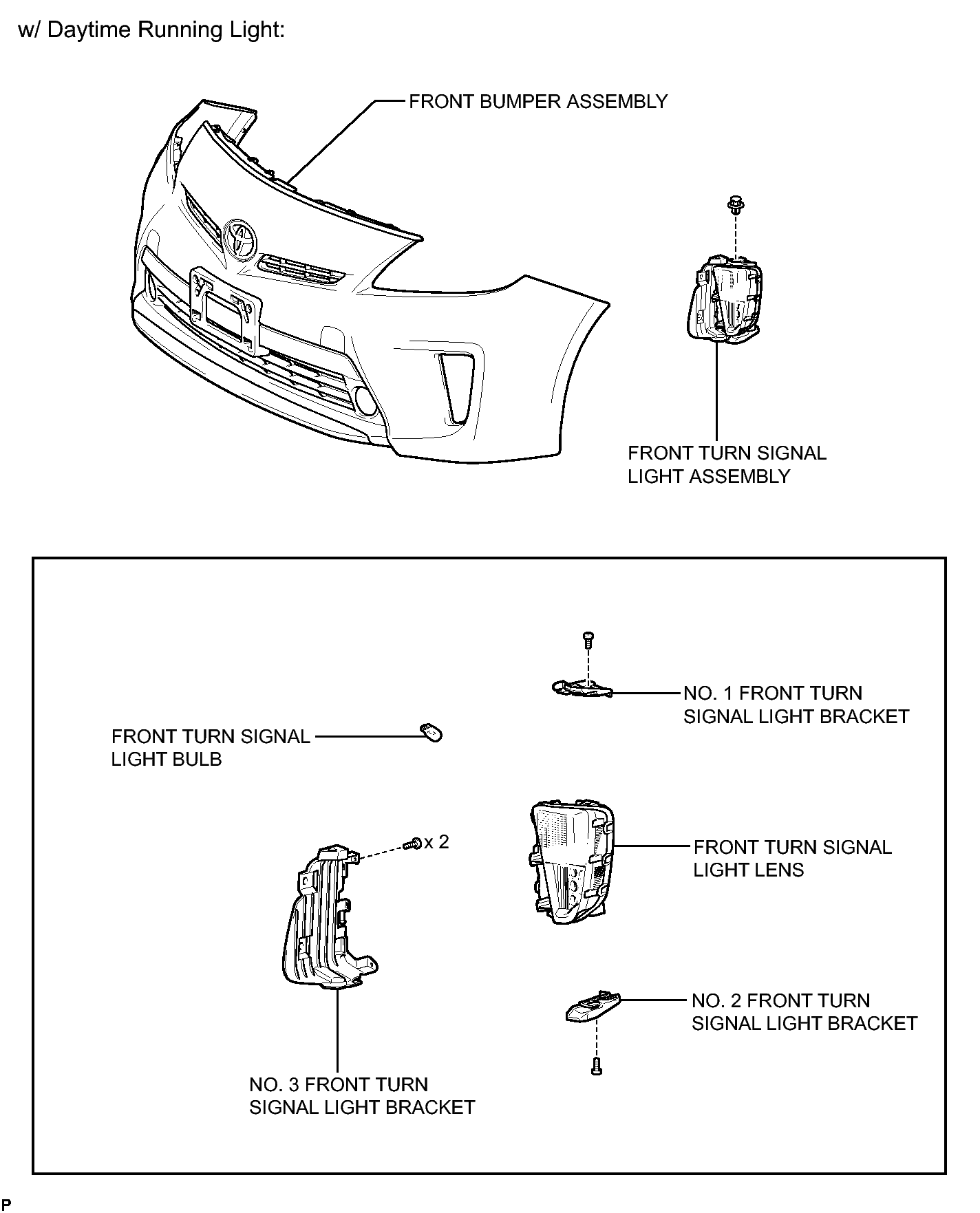

Fig 1: Identifying Front Turn Signal Light Assembly Replacement Components (2 Of 2)
GTY342961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
