Fog Light Assembly: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

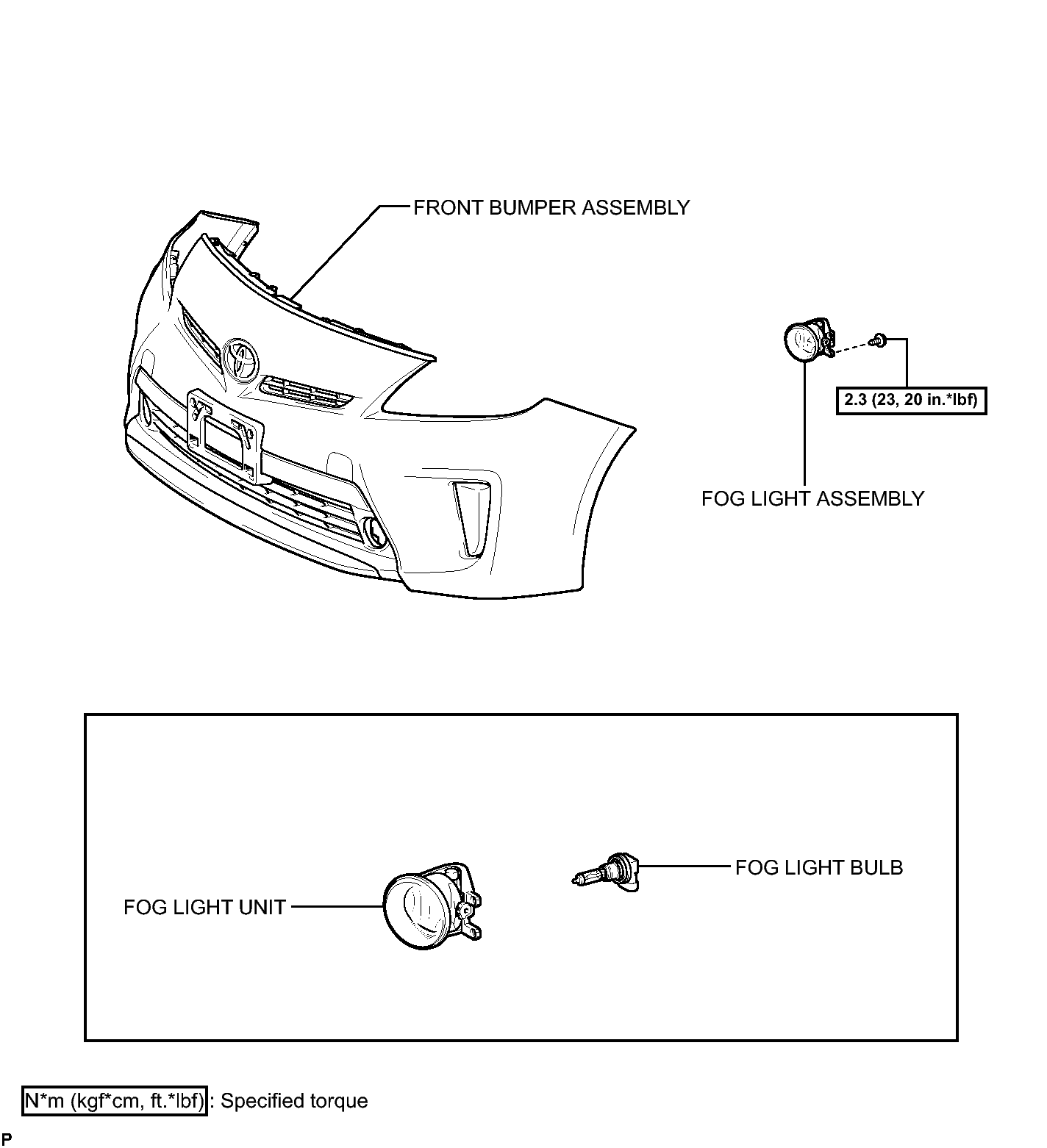

Fig 1: Identifying Fog Light Assembly Replacement Components With Torque Specifications
GTY334438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
