Charge Lid Light: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL SPOT LIGHT ASSEMBLY
1. Engage the 2 claws to install the spot light assembly.

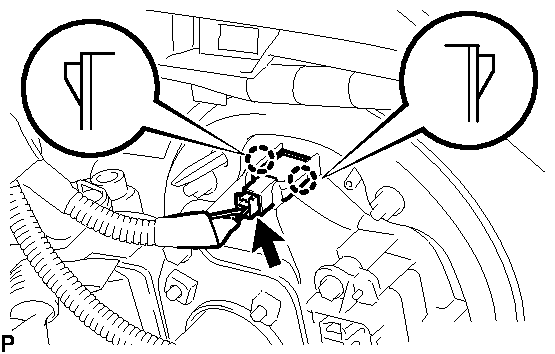

  Fig 1: Identifying Claws & Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector.
INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH . Refer to INSTALLATION - Step 18
INSTALL TONNEAU COVER HOLDER CAP
HINT:

Use the same procedure described for the LH side. Refer to INSTALLATION - Step 15 .
INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY
HINT:

Use the same procedure described for the LH side. Refer to INSTALLATION - Step 16 .
INSTALL REAR DECK TRIM COVER . Refer to INSTALLATION - Step 21
INSTALL DECK TRIM SERVICE HOLE COVER . Refer to INSTALLATION - Step 22
INSTALL REAR NO. 1 FLOOR BOARD . Refer to INSTALLATION - Step 23
INSTALL REAR NO. 1 FLOOR BOARD SUB-ASSEMBLY . Refer to INSTALLATION - Step 24
INSTALL REAR NO. 2 FLOOR BOARD SUB-ASSEMBLY . Refer to INSTALLATION - Step 25
INSTALL DECK FLOOR BOX RH . Refer to INSTALLATION - Step 54
INSTALL REAR NO. 3 FLOOR BOARD . Refer to INSTALLATION - Step 55
INSTALL DECK FLOOR BOX LH . Refer to INSTALLATION - Step 26
INSTALL REAR NO. 4 FLOOR BOARD SUB-ASSEMBLY . Refer to INSTALLATION - Step 27
INSTALL REAR NO. 2 FLOOR BOARD . Refer to INSTALLATION - Step 56
INSTALL TONNEAU COVER ASSEMBLY (w/ Tonneau Cover) . Refer to INSTALLATION - Step 28
INSTALL REAR SIDE SEATBACK ASSEMBLY RH . Refer to INSTALLATION - Step 5
INSTALL REAR SEAT CUSHION ASSEMBLY . Refer to INSTALLATION - Step 7
INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH . Refer to INSTALLATION - Step 47
INSTALL REAR DOOR SCUFF PLATE RH
HINT:

Use the same procedure described for the LH side. Refer to INSTALLATION - Step 38 .
