Exhaust Manifold: Components: Illustration

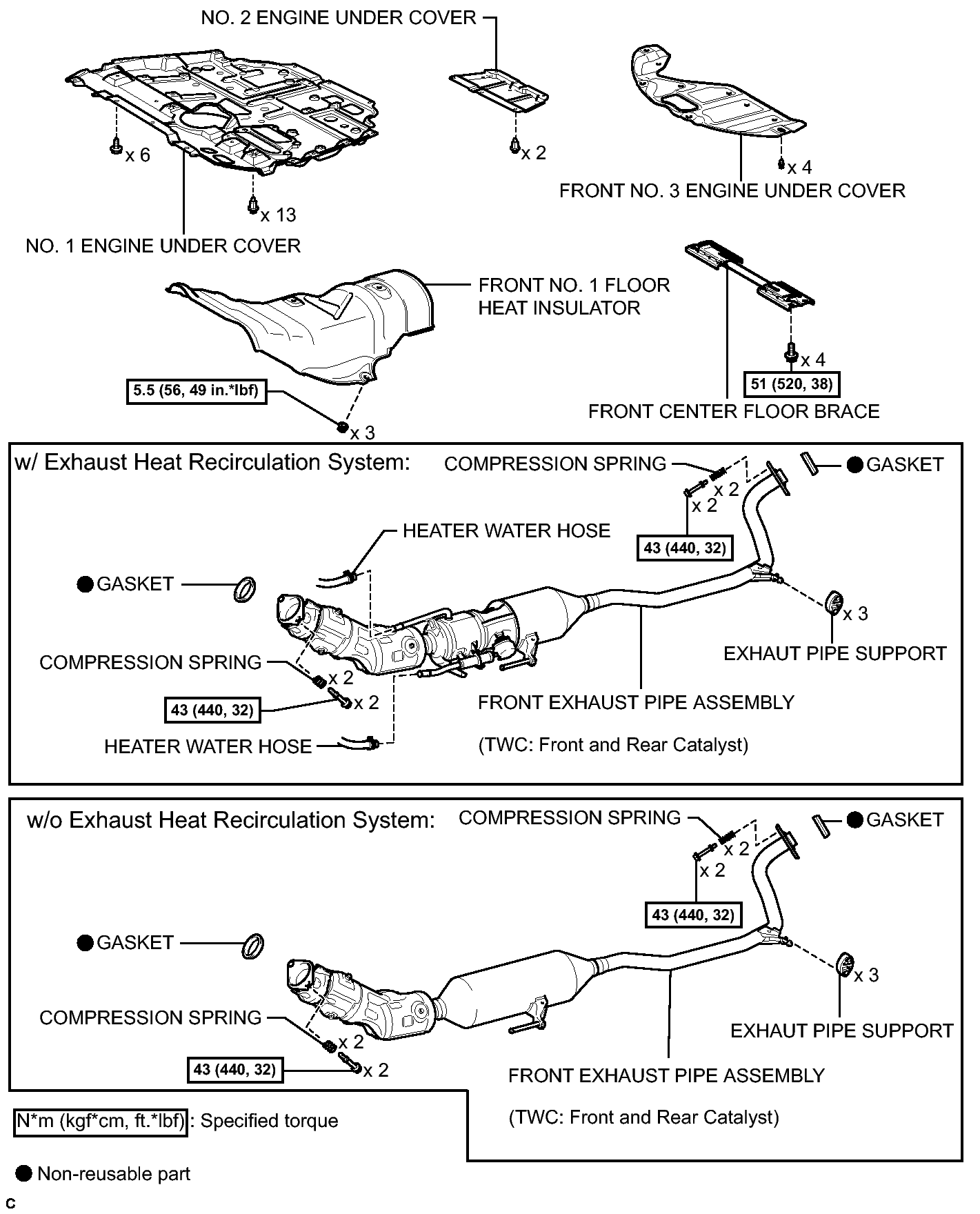

Fig 1: Identifying Exhaust Manifold Replacement Components With Torque Specifications (1 Of 2)
GTY338486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

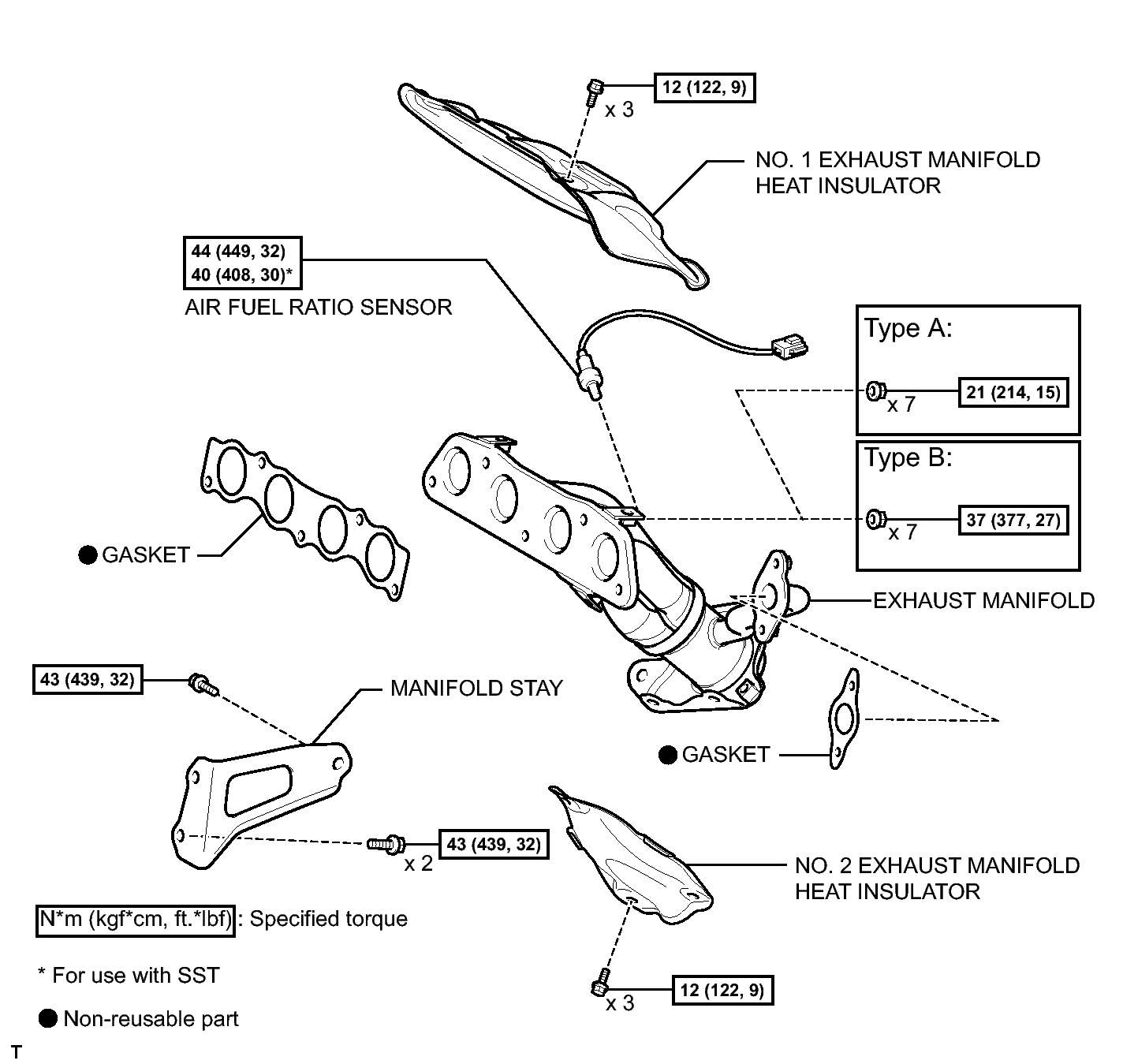

Fig 2: Identifying Exhaust Manifold Replacement Components With Torque Specifications (2 Of 2)
GTY293246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
