Center Power Outlet Socket: Installation: Installation

INSTALL CENTER POWER OUTLET SOCKET COVER
1. Engage the 2 claws to install the center power outlet socket cover.

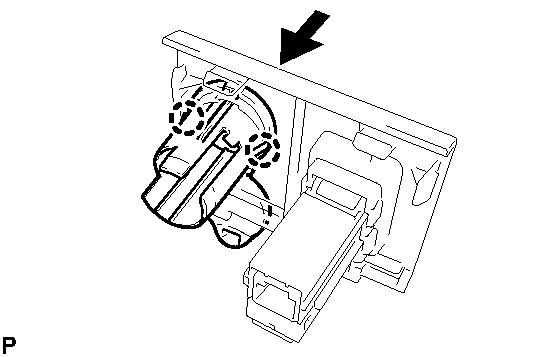

  Fig 1: Identifying Center Power Outlet Socket Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CENTER POWER OUTLET SOCKET ASSEMBLY
1. Engage the claw to install the center power outlet socket assembly.

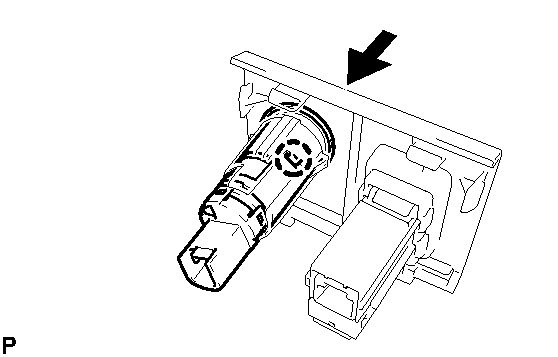

  Fig 2: Identifying Center Power Outlet Socket Assembly & Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT CONSOLE BOX FILLER SUB-ASSEMBLY
1. Engage the 2 guides and 4 claws, to install the front console box filler sub-assembly.
INSTALL REAR CONSOLE BOX ASSEMBLY
Refer to INSTALLATION
