Door Control Switch: Inspection: Inspection

  1. INSPECT DOOR CONTROL SWITCH ASSEMBLY
    1. Measure the resistance according to the value(s) in the table below.

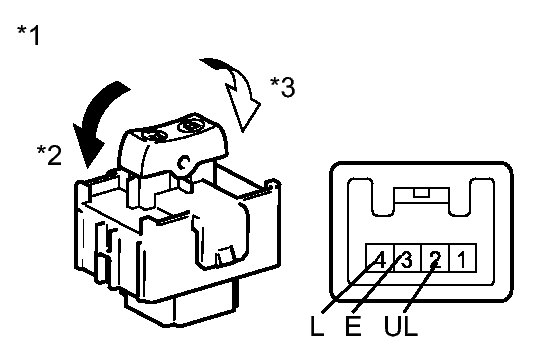

      Fig 1: Inspecting Door Control Switch Assembly
      GTY215072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Condition Specified Condition
      4 (L) - 3 (E) Locked Below 1 Ω
      4 (L) - 3 (E) off 10 kΩ or higher
      2 (UL) - 3 (E) Unlocked Below 1 Ω
      2 (UL) - 3 (E) off 10 kΩ or higher
      TEXT IN ILLUSTRATION

      *1 Component without harness connected
      (Door Control Switch Assembly)
      *2 Unlock
      *3 Lock

      If the result is not as specified, replace the door control switch assembly.
