Shift Control Actuator: Components: Illustration

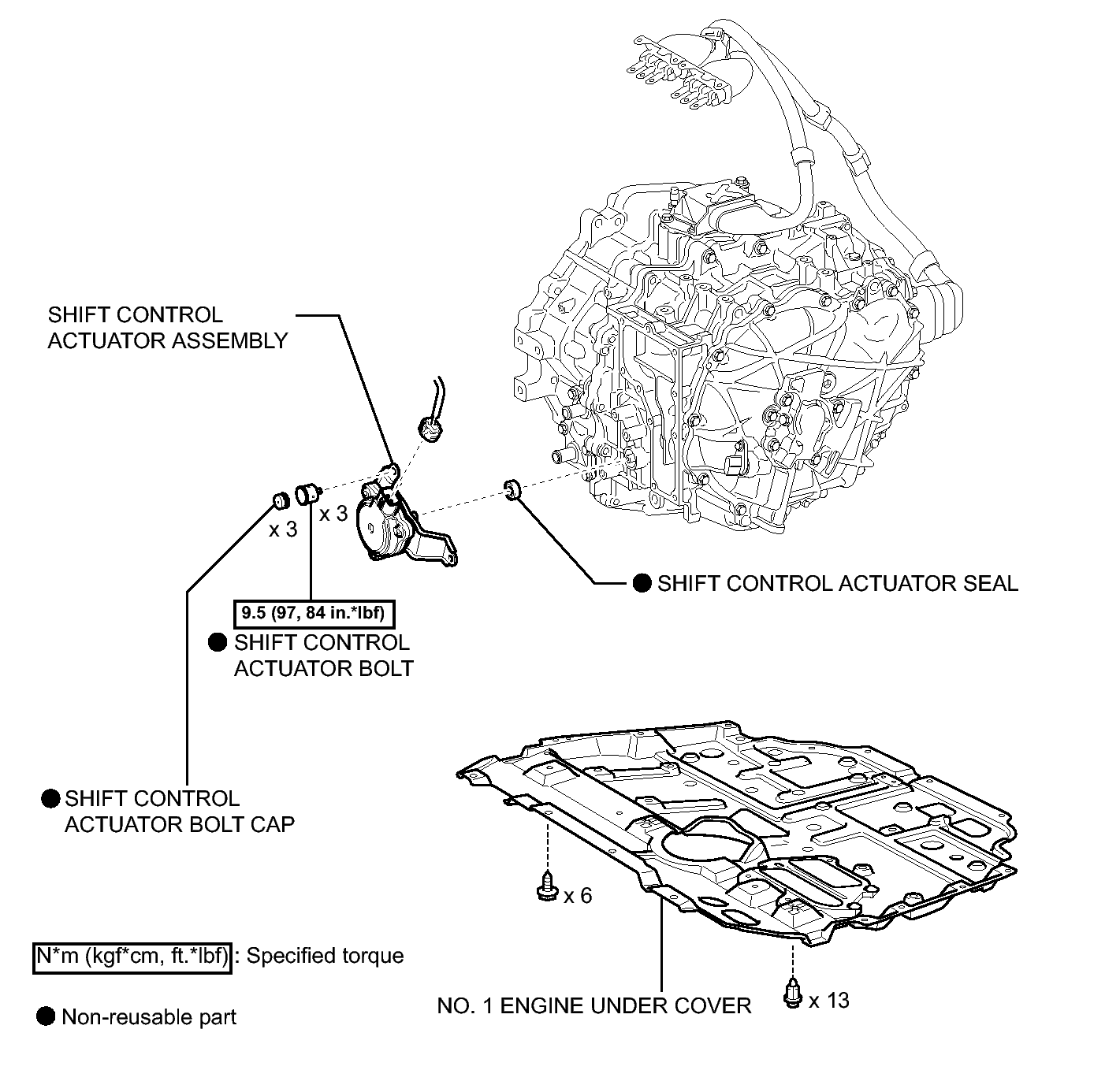

Fig 1: Identifying Shift Control Actuator Replacement Components With Torque Specifications

GTY343278

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
