Motor Cable: Components: Illustration

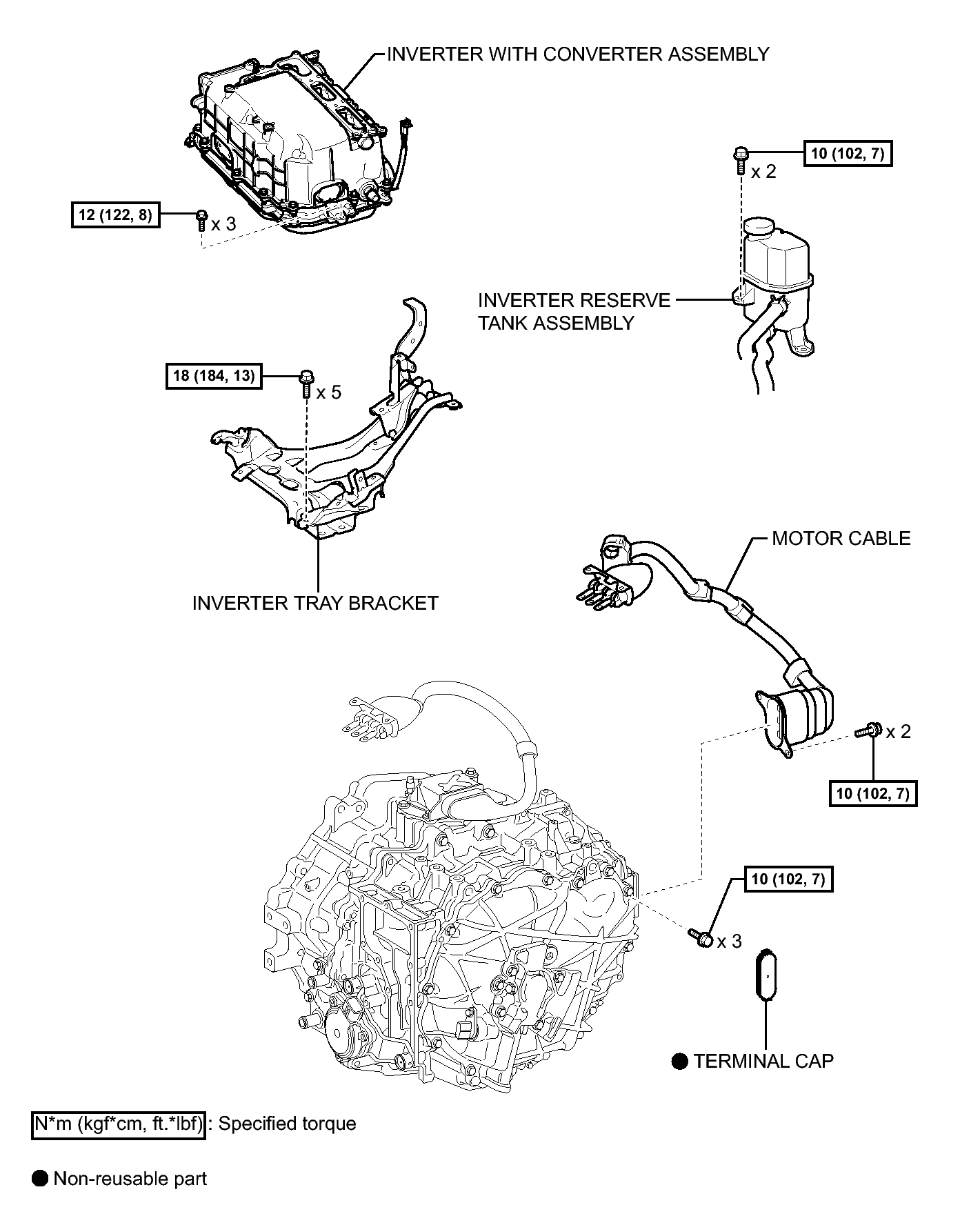

Fig 1: Identifying Motor Cable Replacement Components With Torque Specifications

GTY338988

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
