Generator Cable: Components: Illustration

Fig 1: Identifying Generator Cable Replacement Components With Torque Specifications (1 Of 2)
GTY334985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

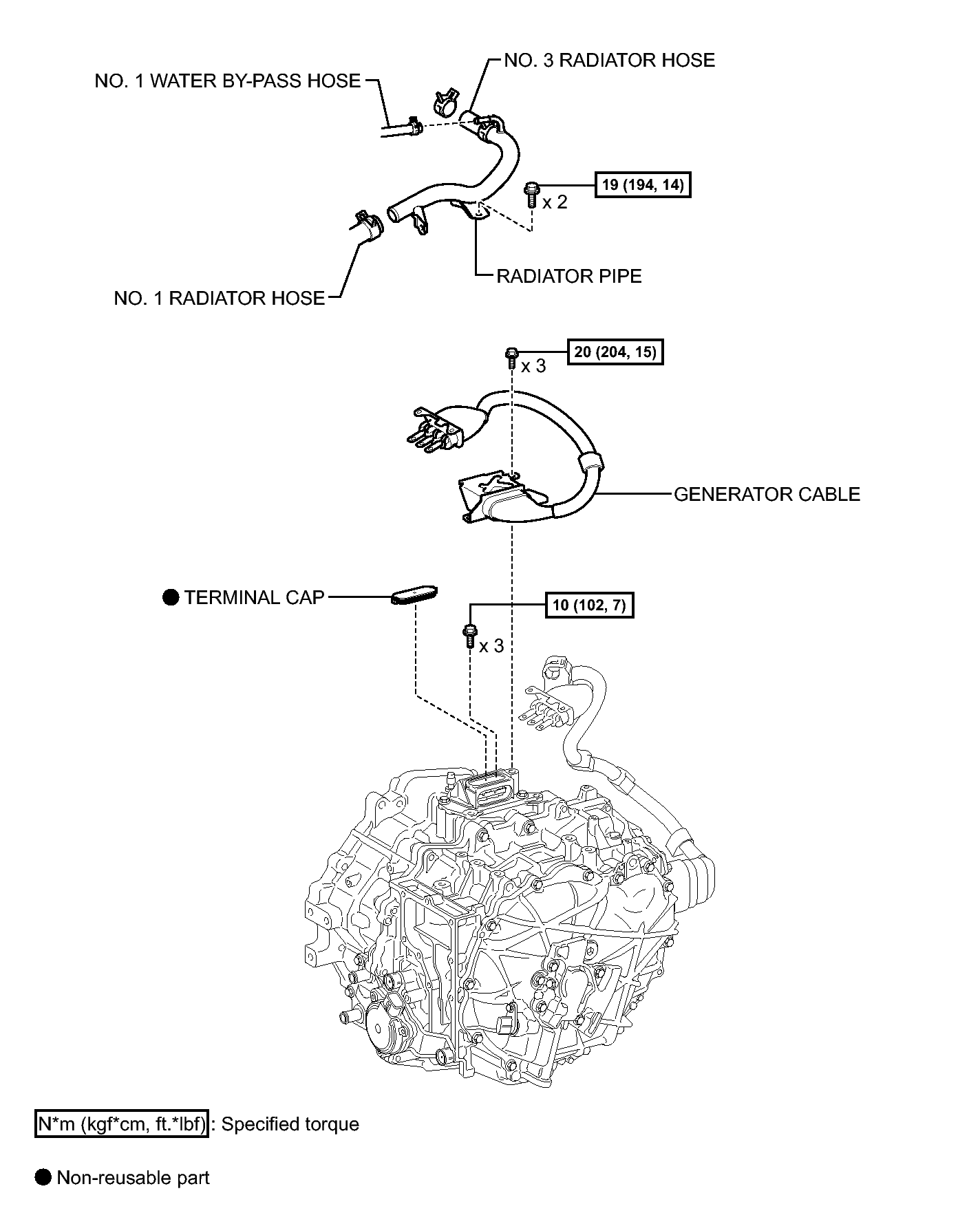

Fig 1: Identifying Generator Cable Replacement Components With Torque Specifications (2 Of 2)
GTY337987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
