DTC B278C: Lost Communication with Power Source Control: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

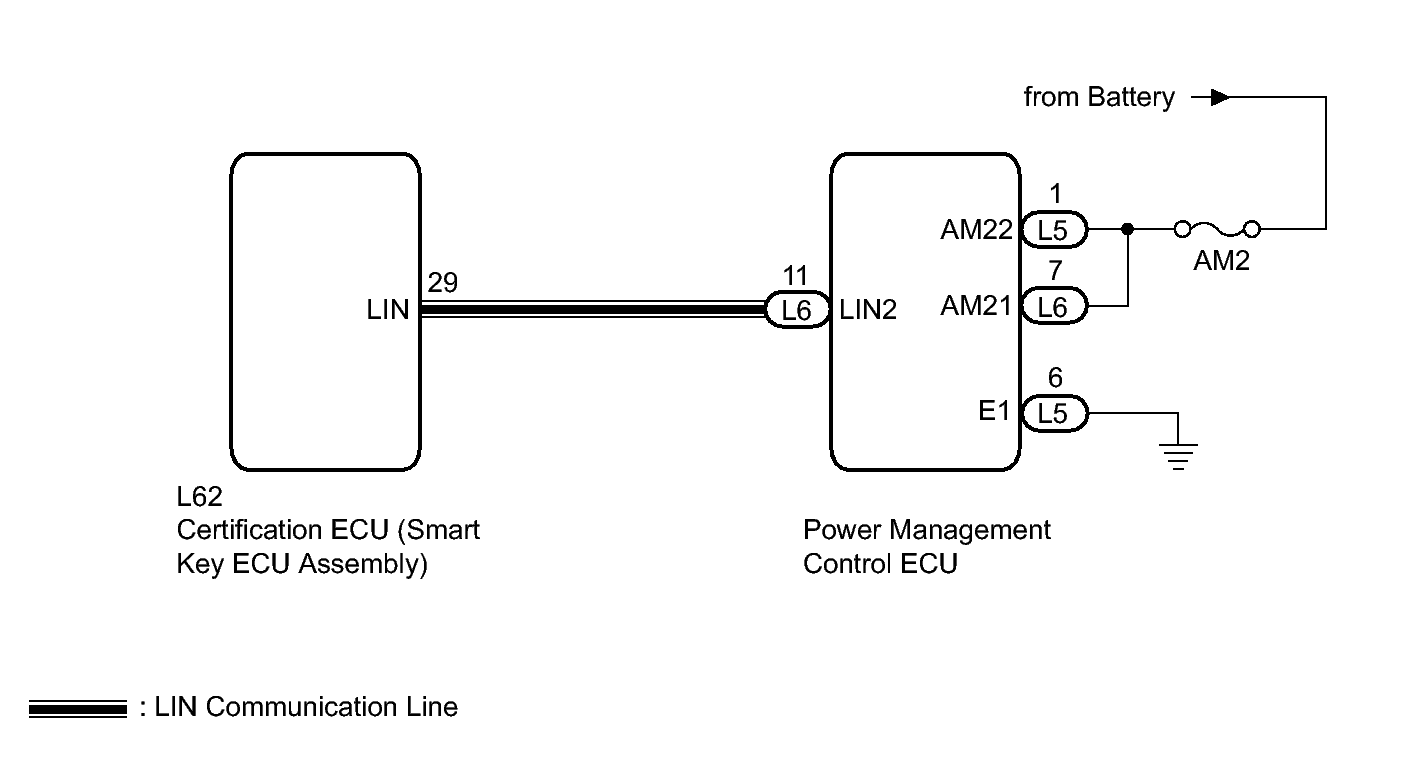

Fig 1: View Of Power Source Control Wiring Diagram
GTY234946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
