Parts Location: Illustration

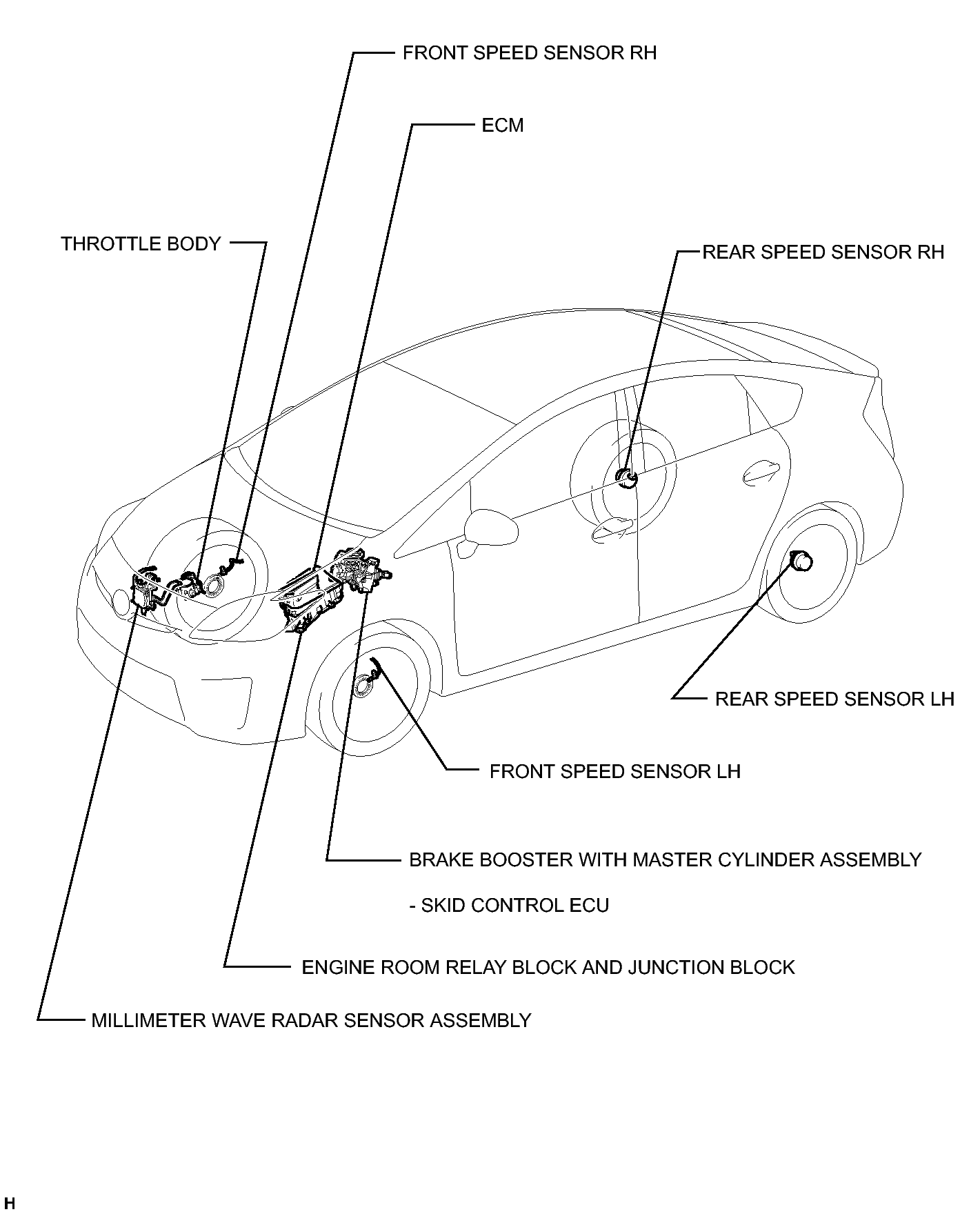

Fig 1: Identifying Dynamic Radar Cruise Control System Components Location (1 Of 2)
GTY341851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

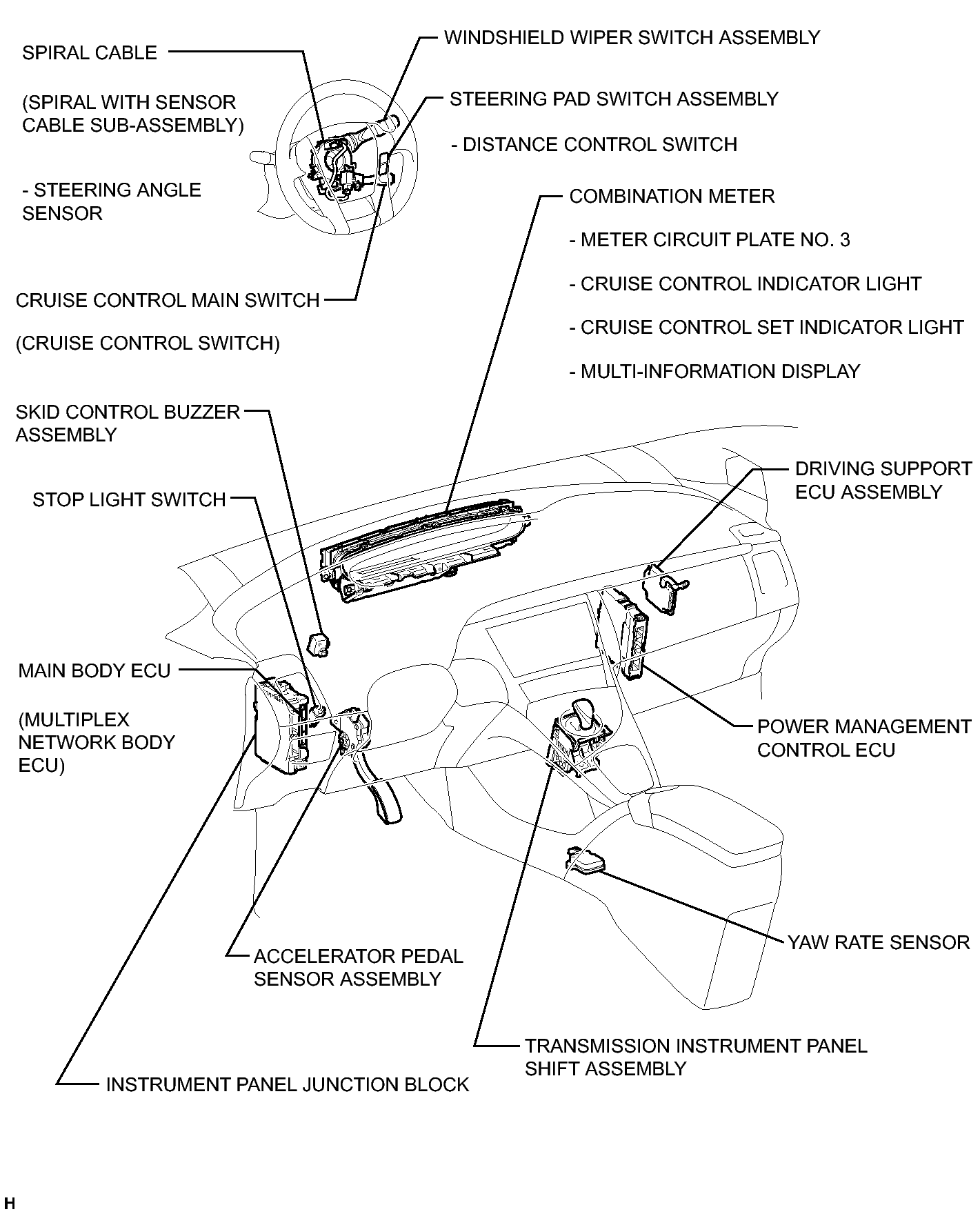

Fig 1: Identifying Dynamic Radar Cruise Control System Components Location (2 Of 2)
GTY329715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
