PTC Heater Assembly: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

REMOVE BLOWER ASSEMBLY
Refer to REMOVAL
REMOVE QUICK HEATER ASSEMBLY
1. Disengage each clamp.

  Fig 1: Identifying Quick Heater Assembly & Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 screws.
3. Remove the quick heater assembly as shown in the illustration.

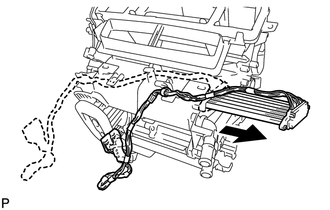

  Fig 2: Removing Quick Heater Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
