Front Evaporator Temperature Sensor: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

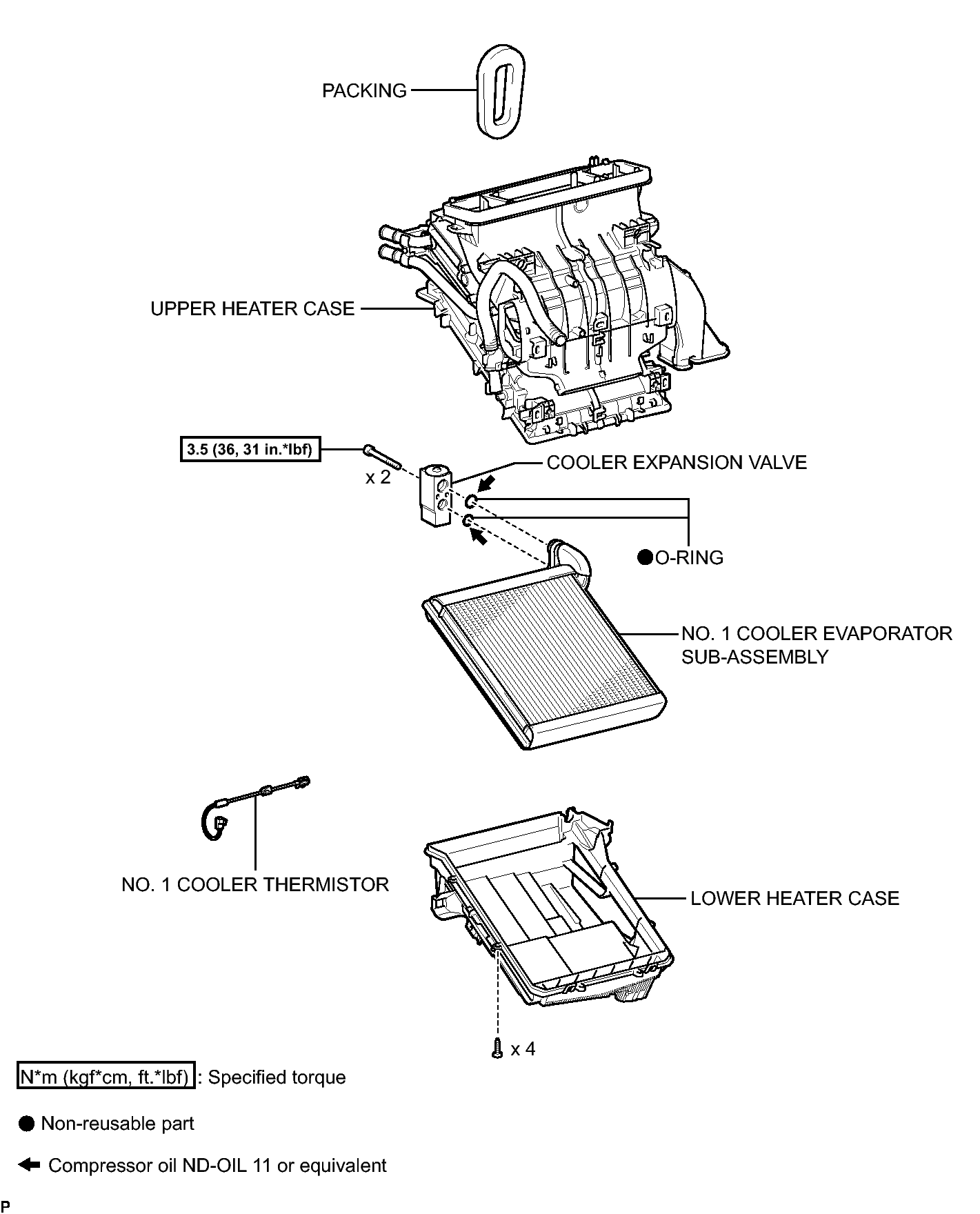

Fig 1: Identifying Front Evaporator Temperature Sensor Replacement Components With Torque Specifications
GTY326811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
