Air Conditioning Amplifier: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY

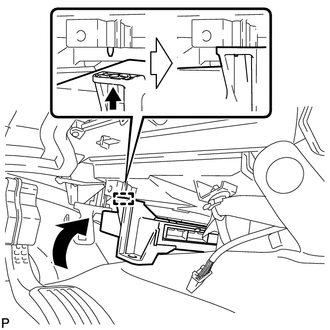

1. Engage the guide as shown in the illustration.

  Fig 1: Engaging Guide
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

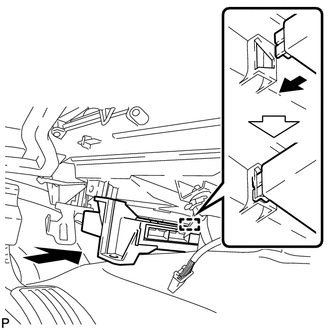

2. Engage the guide and install the air conditioning amplifier assembly as shown in the illustration.

  Fig 2: Installing Air Conditioning Amplifier Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the screw and connect each connector.
INSTALL FRONT NO. 1 CONSOLE BOX INSERT . Refer to INSTALLATION - Step 25
CONNECT CABLE TO AUXILIARY BATTERY NEGATIVE TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
INSTALL DECK FLOOR BOX RH . Refer to INSTALLATION - Step 54
INSTALL REAR NO. 3 FLOOR BOARD . Refer to INSTALLATION - Step 55
INSTALL REAR NO. 2 FLOOR BOARD . Refer to INSTALLATION - Step 56
