INSTALL POWER MANAGEMENT CONTROL ECU
1. Engage the 2 claws to install the power management control ECU.

  Fig 1: Locating Power Management Control ECU And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ECU INTEGRATION BOX
1. Install the ECU integration box with the 2 nuts and bolt.

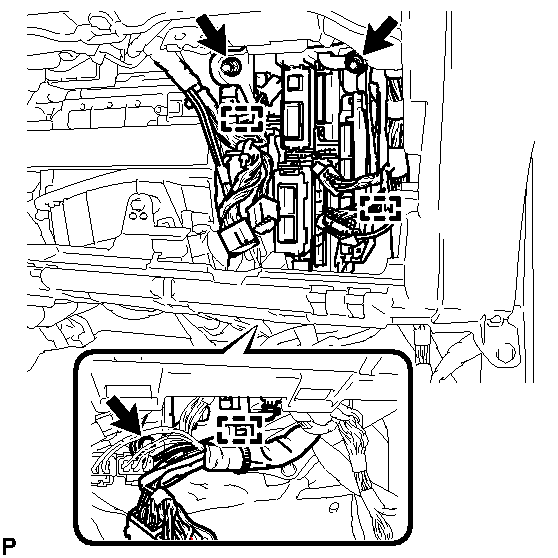

  Fig 2: Locating Clamps, Bolt, Nuts And ECU Integration Box
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 14 N*m (138 kgf*cm, 10 ft.*lbf)
2. Engage the 3 clamps to connect the wire harness.
3. Connect each connector.
INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY . Refer to INSTALLATION - Step 14
INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 15
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
