INSTALL AUXILIARY BATTERY
1. Install the auxiliary battery.
2. Connect the battery ventilation hose to the battery without kinking it.

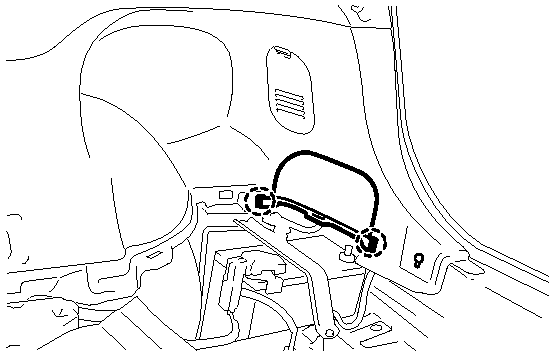

  Fig 1: Identifying Battery Ventilation Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Push in the battery ventilation hose to the battery until a click sound is heard.
3. Install the battery clamp with the bolt and nut.

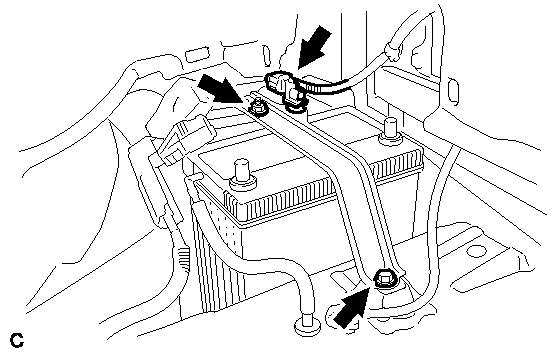

  Fig 2: Identifying Battery Positive Terminal, Thermometer Sensor Connector, Nut & Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Nut

  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  Bolt

  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
4. Install the battery thermometer sensor connector
5. Connect the positive (+) battery terminal with the nut.

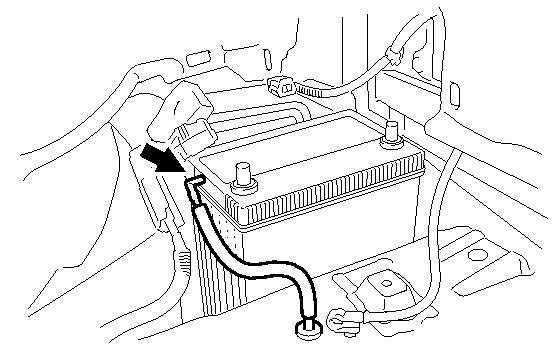

  Fig 3: Identifying Battery Sensor Connector, Positive Battery Terminal & Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
6. Install the battery terminal cap.
7. Engage the 2 claws to install the rear upper No. 3 floor board plate.

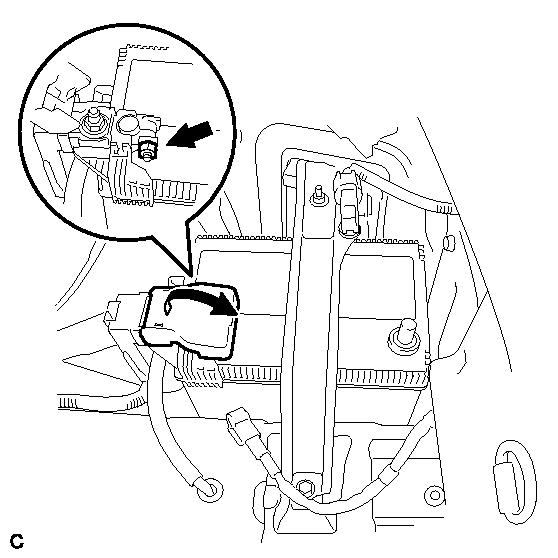

  Fig 4: Identifying No. 3 Rear Floor Board Plate Upper & Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO AUXILIARY BATTERY NEGATIVE TERMINAL
1. Connect the negative (-) battery terminal with the nut.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
INSTALL REAR NO. 3 FLOOR BOARD . Refer to INSTALLATION - Step 58
INSTALL REAR DECK FLOOR BOX . Refer to INSTALLATION - Step 59
INSTALL REAR NO. 2 FLOOR BOARD (for Separate Type) . Refer to INSTALLATION - Step 60
