Door Control Transmitter: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

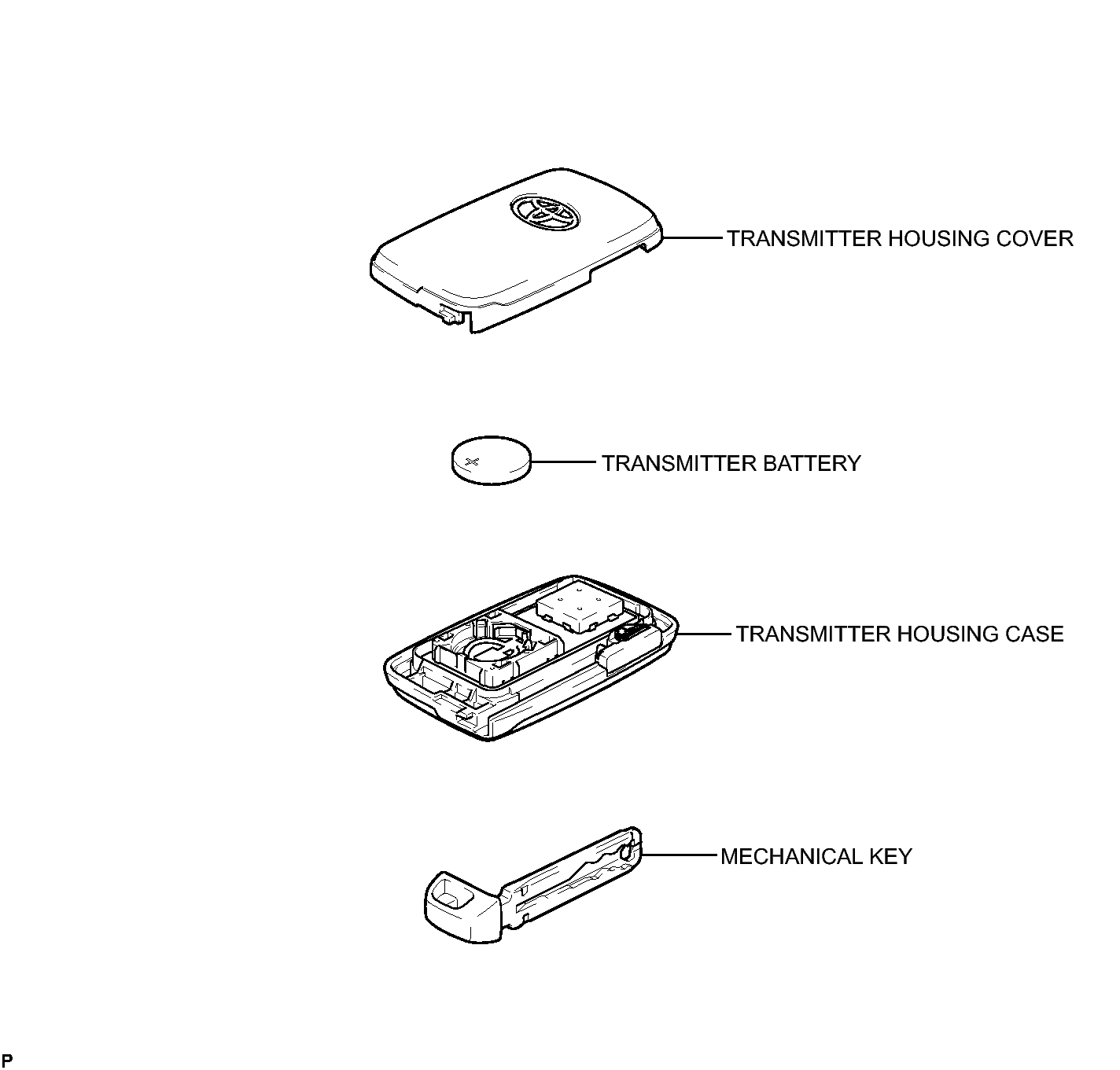

Fig 1: Identifying Door Control Transmitter Replacement Components
GTY332788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
