Cylinder Block: Components: Illustration

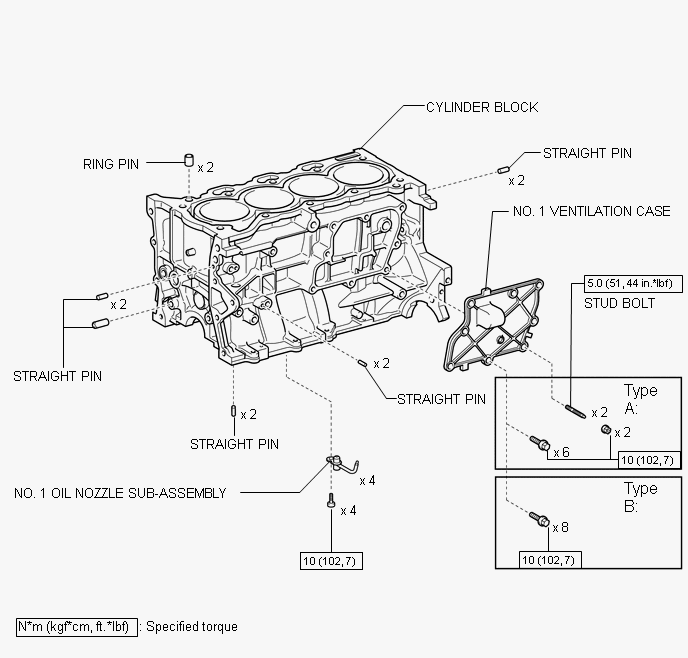

Fig 1: Identifying Cylinder Block Replacement Components With Torque Specifications (1 Of 2)
GTY290183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

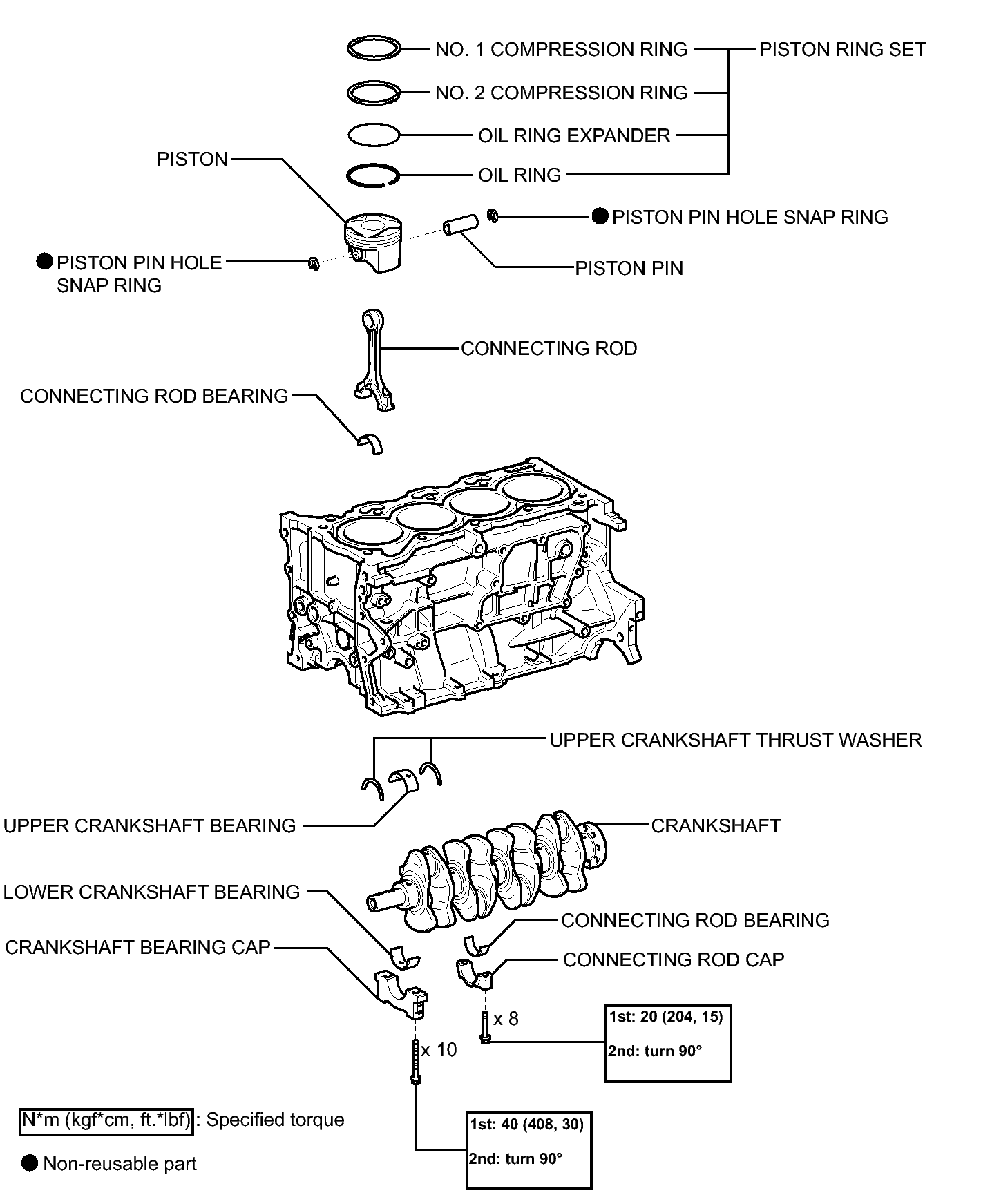

Fig 2: Identifying Cylinder Block Replacement Components With Torque Specifications (2 Of 2)
GTY218959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
