Front Wiper Rubber: Replacement: Replacement

REMOVE FRONT WIPER BLADE
1. Disengage the holder on the front wiper blade.

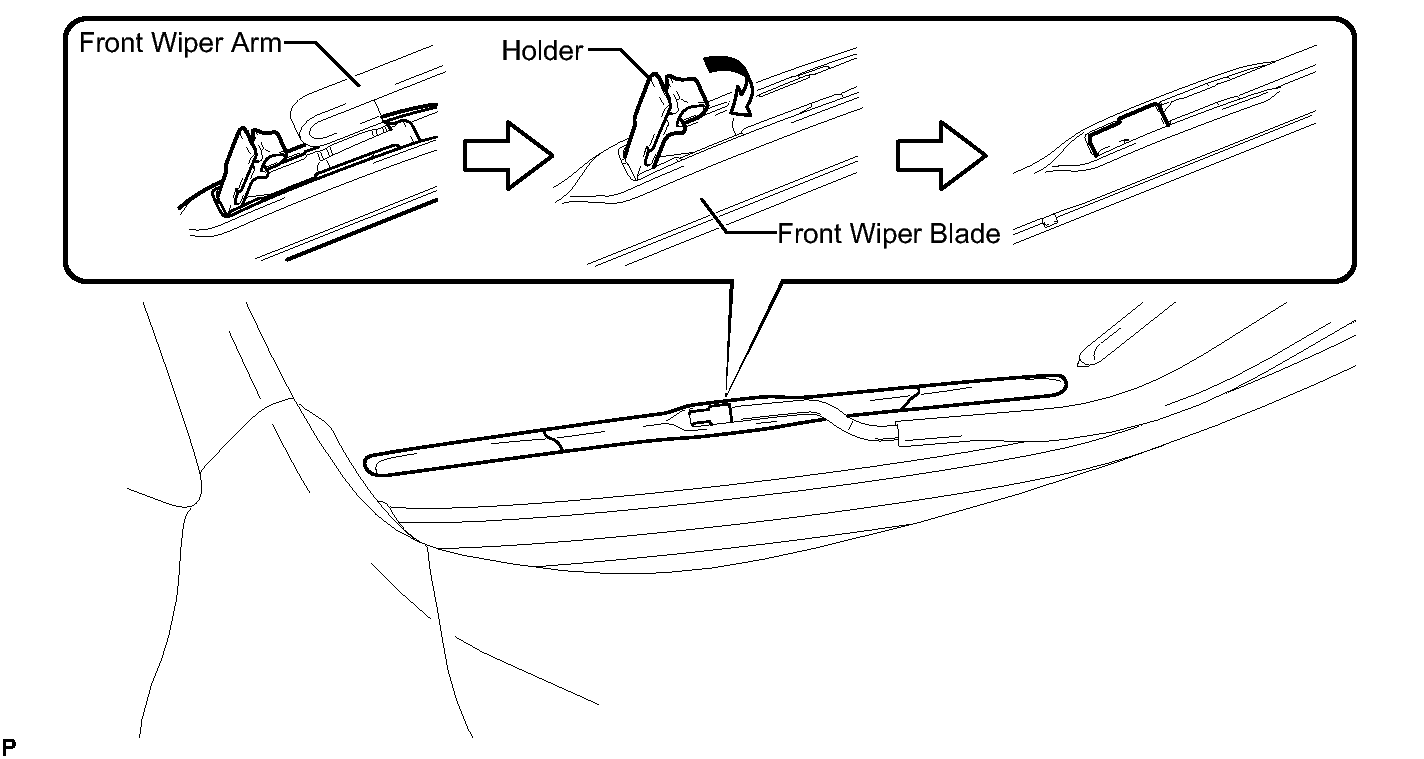

  Fig 1: Disengaging Holder On Front Wiper Blade
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the front wiper blade from the front wiper arm as shown in the illustration.
  NOTE:
  Do not lower the front wiper arm with the front wiper blade removed. The arm tip could damage the windshield surface.
REMOVE WIPER RUBBER
1. Remove the wiper rubber and the 2 wiper rubber backing plates from the front wiper blade.

  Fig 2: Removing Wiper Rubber
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 wiper rubber backing plates from the wiper rubber.

  Fig 3: Removing Wiper Rubber Backing Plates From Wiper Rubber
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL WIPER RUBBER
1. Install the 2 wiper rubber backing plates to the wiper rubber.

  Fig 4: Installing Wiper Rubber Backing Plates From Wiper Rubber
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Align the protrusions on the wiper rubber with the notches in the backing plates.
  - Align the curves of the backing plates with the curve of the glass.
2. Install the wiper rubber and the 2 wiper rubber backing plates to the front wiper blade with the tip of the rubber (curved end) facing the axis of the wiper arm.

  Fig 5: Installing Wiper Rubber To Front Wiper Blade LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Firmly push the wiper rubber into the wiper blade to securely engage them.
INSTALL FRONT WIPER BLADE
1. Install the front wiper blade as shown in the illustration.

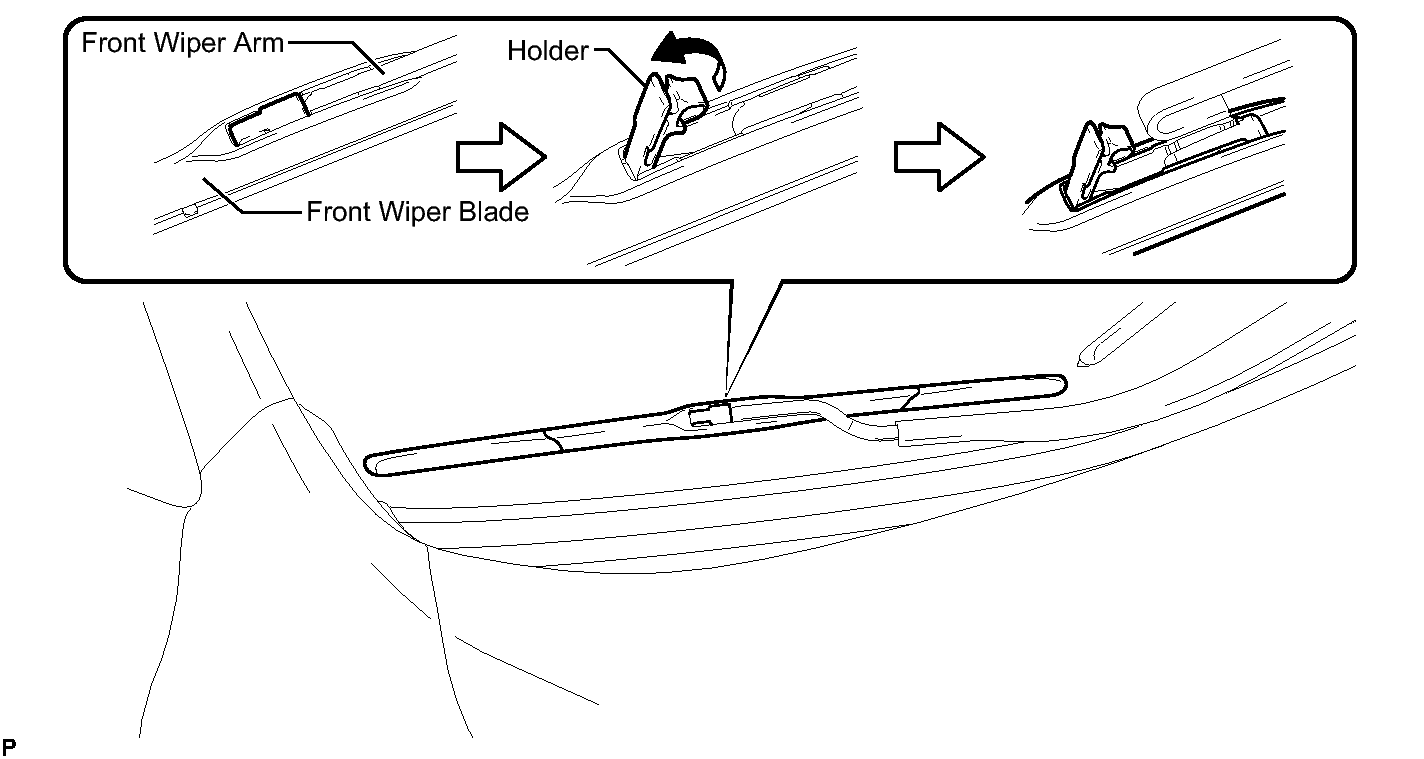

  Fig 6: Installing Front Wiper Blade
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the holder on the front wiper blade.
