DTC P0102: Mass or Volume Air Flow Circuit Low Input; DTC P0103: Mass or Volume Air Flow Circuit High Input: Wiring Diagram

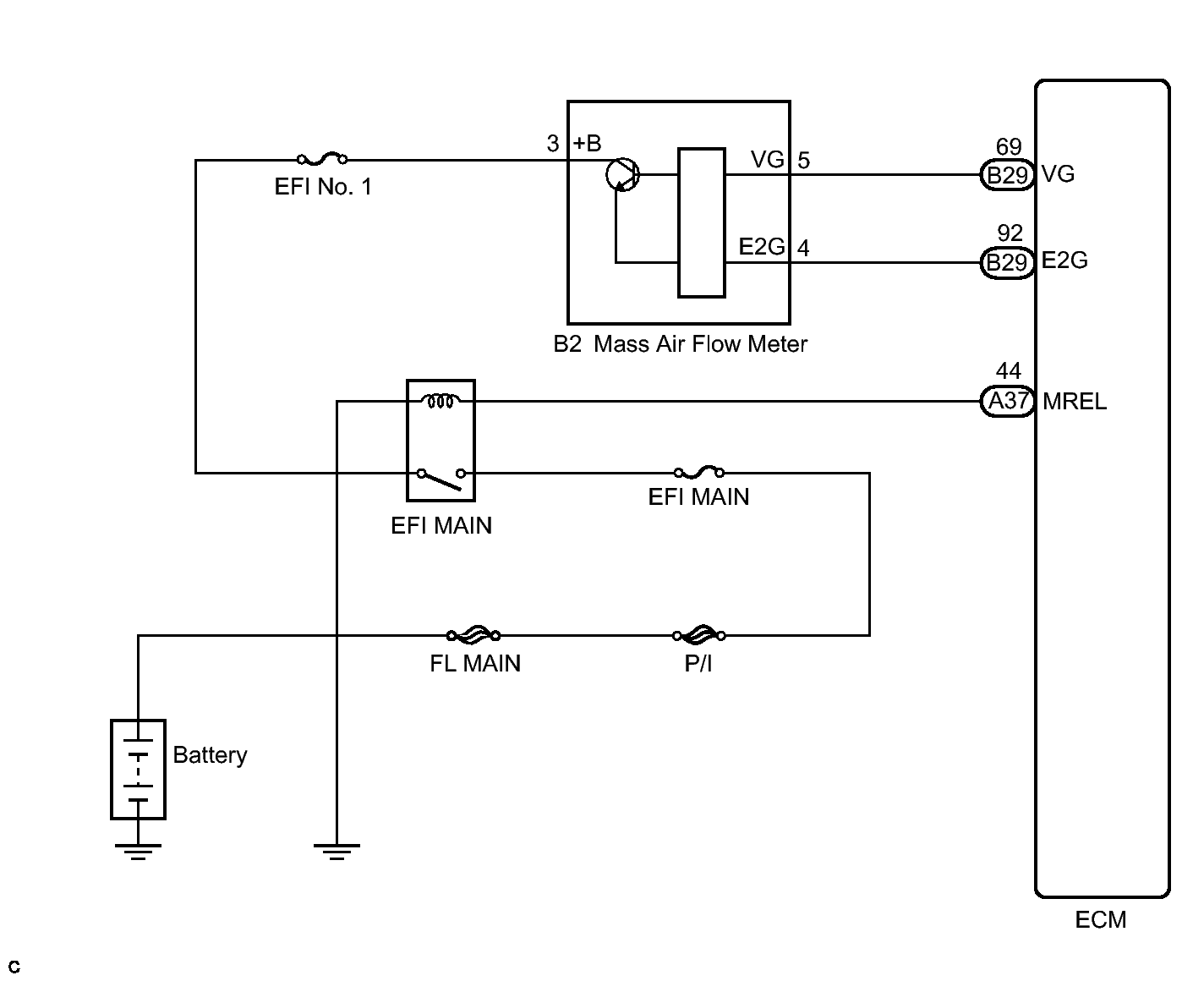

Fig 1: Identifying Mass or Volume Air Flow Circuit Diagram
GTY292417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
