Multiplex Communication System (CAN): Notes

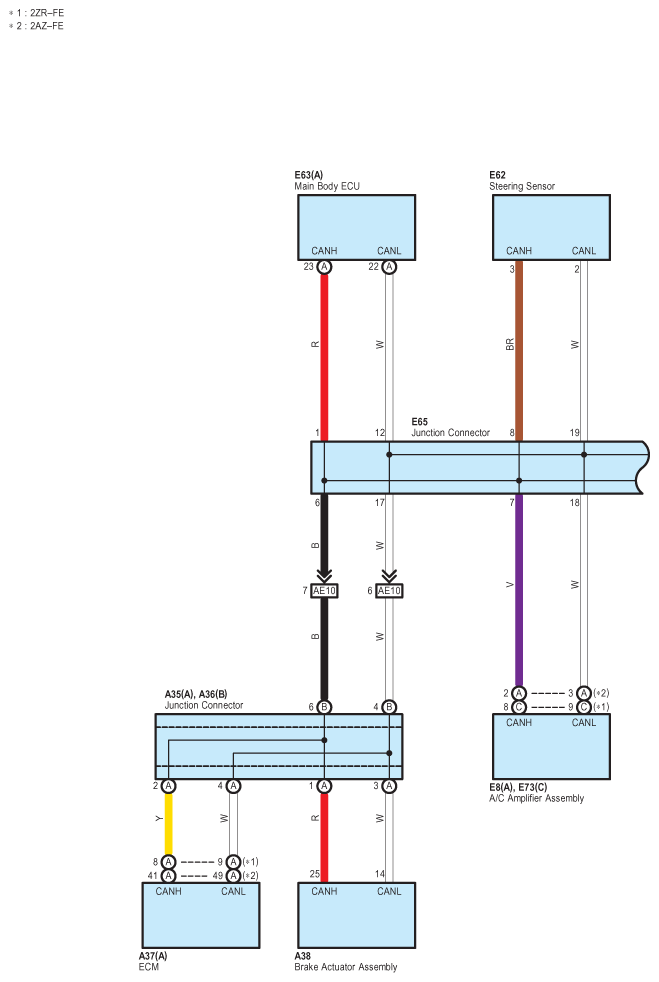

Fig 1: Multiplex Communication System Wiring Diagram (1 Of 2)
G08798890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

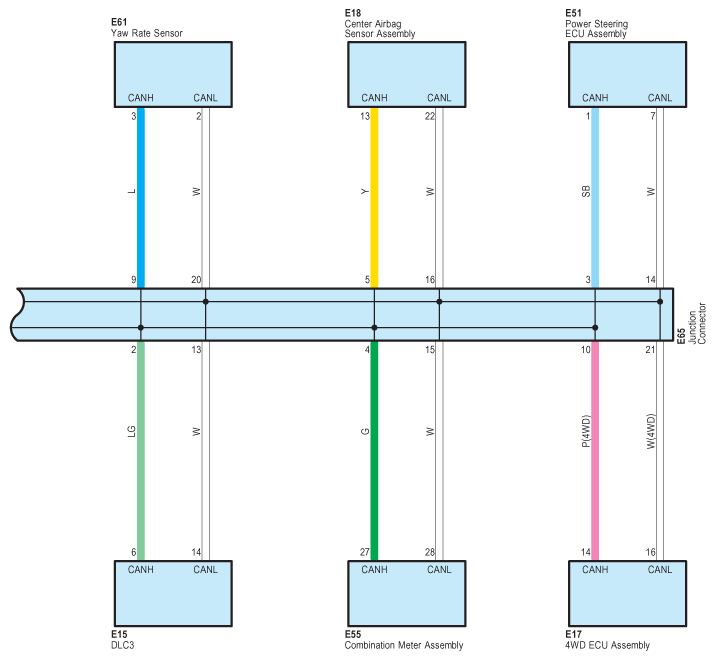

Fig 2: Multiplex Communication System Wiring Diagram (2 Of 2)
G08798891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
