Rear Power Window RH does not Operate with Rear Power Window Switch RH: Wiring Diagram

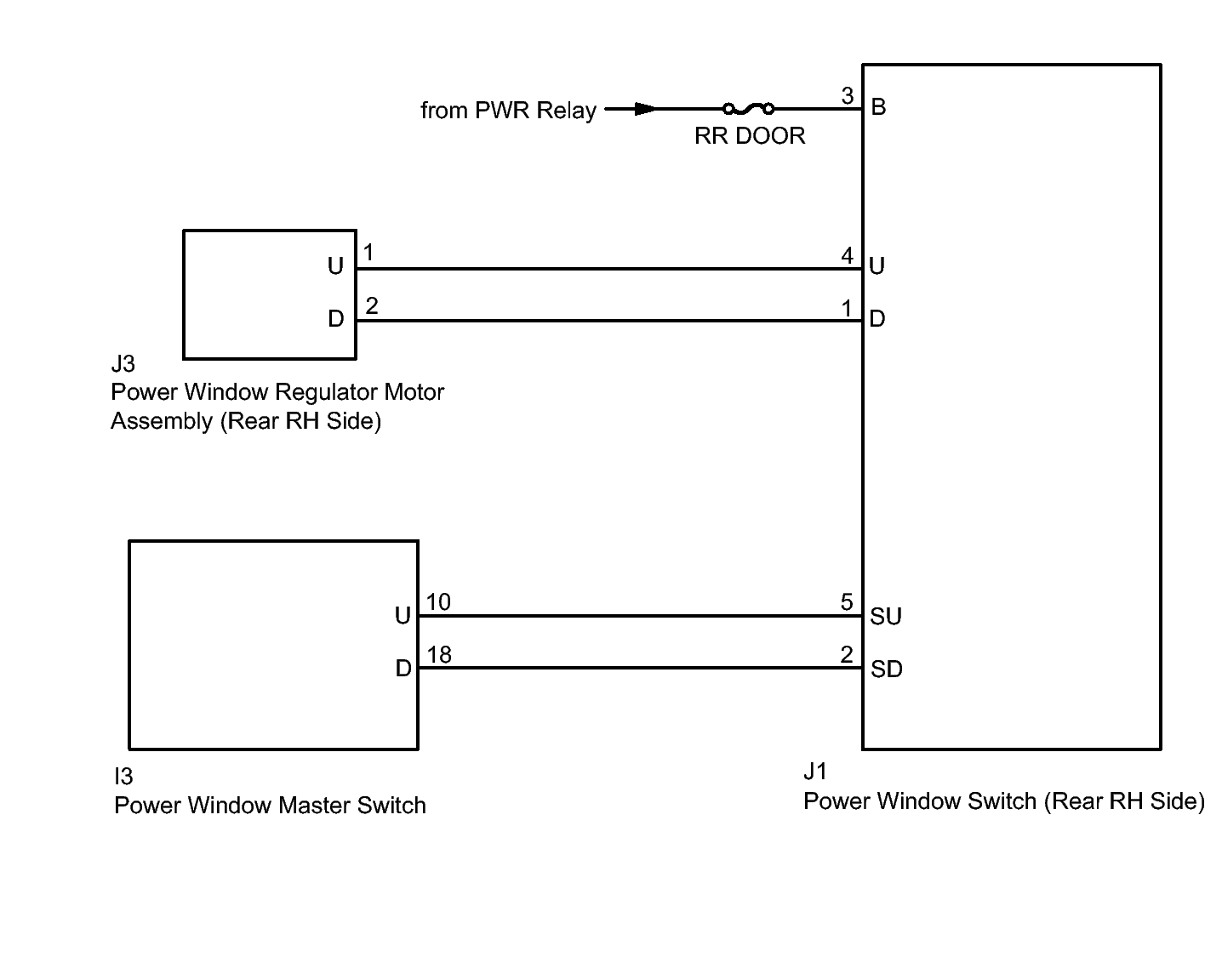

Fig 1: Identifying Rear Power Window Switch RH Circuit Diagram

GTY232207

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
