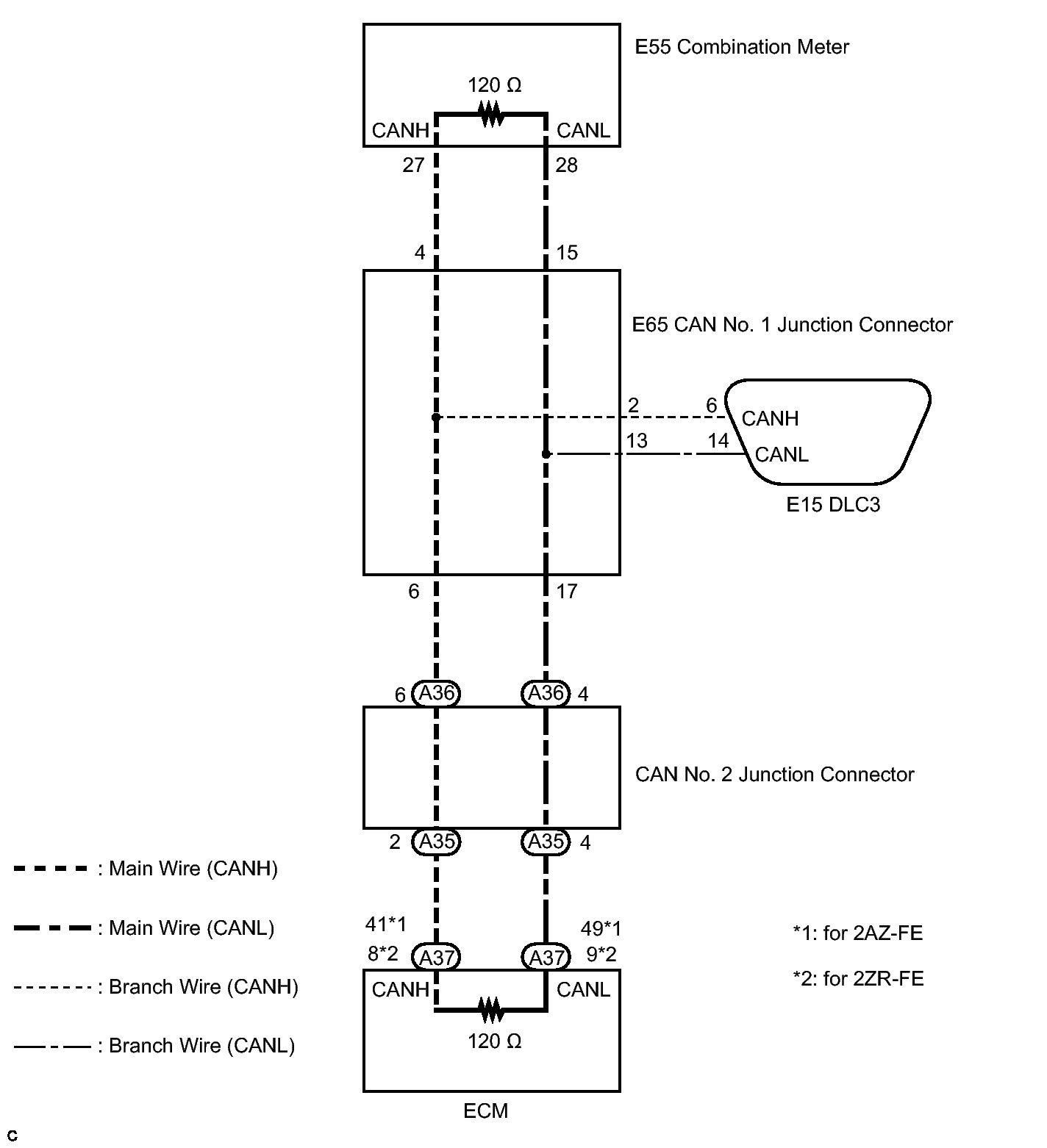

Home >> Toyota >> 2012 >> Matrix Base, Standard Trans >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Communication Devices >> Can Communication System (Diagnostics & Symptom Tests) >> Can Communication System >> Circuit Tests >> Open in CAN Main Bus Line >> Wiring Diagram
