Smart Key System Check During PDS (T-SB-0022-11 REV2)

Publication date: 2012-05-24
Reference number: T-SB-0022-11 REV2

SMART KEY SYSTEM CHECK DURING PDS

TECHNICAL SERVICE BULLETIN

Reference Number(s): T-SB-0022-11 Rev2, Date of Issue: May 24, 2012

TOYOTA:	2012 4Runner, Avalon, Camry, Camry HV, Highlander, Highlander HV, Matrix, Prius, Prius V, RAV4, Sequoia, Sienna, Venza
SERVICE CATEGORY:	General
SECTION:	Pre-Delivery Service
COPYRIGHT:	© 2018 Toyota, USA License Agreement TMS1002

Superceded Bulletin(s): T-SB-0022-11, Date of Issue: October 14, 2011

APPLICABILITY

APPLICABILITY CHART

YEAR(S)	MODEL(S)	ADDITIONAL INFORMATION
2012	4Runner, Avalon, Camry, Camry HV, Highlander, Highlander HV, Matrix, Prius, Prius V, RAV4, Sequoia, Sienna, Venza

SERVICE BULLETIN REVISION NOTICE
May 24, 2012 Rev2:
* Applicability has been updated to include 2012 model year RAV4 EV vehicles.
Any previous printed versions of this service bulletin should be discarded.
October 14, 2011 Rev1:
* Applicability has been updated to include 2012 model year Prius C and Prius PHV vehicles.
Any previous printed versions of this service bulletin should be discarded.

INTRODUCTION

Some 2012 model year vehicles are equipped with a Smart Key system, which allows the customer to enter and start the vehicle without using a mechanical key. To ensure the system is operating properly, the Smart Key functions (Smart Entry and Smart Start) should be inspected during Pre-Delivery Service (PDS). The following inspection procedure has been developed to confirm the proper operation of the Smart Key system prior to vehicle delivery.

NOTE: Check all of the Smart Keys using this procedure.

WARRANTY INFORMATION

OP CODE	DESCRIPTION	TIME	OFP	T1	T2
N/A	Not Applicable to Warranty	-	-	-	-

INSPECTION PROCEDURE

Remove ALL Smart Keys from the vehicle.
NOTE: The remaining keys need to be a minimum of 3 feet (1 meter) away from the vehicle.
Check Smart Entry function at all the doors.

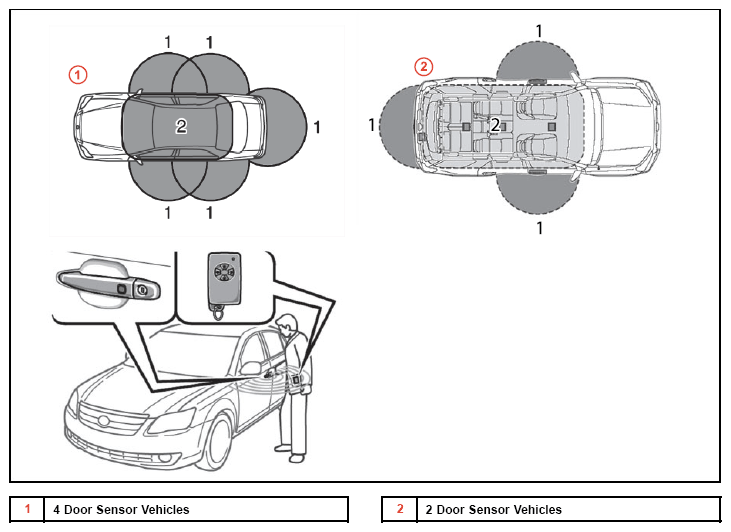

NOTE: Smart Key MUST be in actuation area No. 1 for this check (see below).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Locking operation:
  Push the lock button on the outside door handle. All the doors should lock simultaneously. At this time, one beep will be heard and the turn signal lights will flash once.
2. Unlocking operation:
  NOTE: After checking the lock function, wait at LEAST 3 seconds before checking the unlock function.

  Grasp the outside door handle (sensors are located on the underside of the door handles). At this time, two beeps will be heard and the turn signal lights will flash twice.

  NOTE: Only the driver's door unlocks when the driver's door handle is grasped. All the doors unlock when any door handle other than the driver's door handle is grasped.
Check the Wireless Door Lock function.
Using the remote outside of the vehicle, confirm that all doors can be locked and unlocked using the wireless remote.

Check Smart Start function from inside the vehicle.

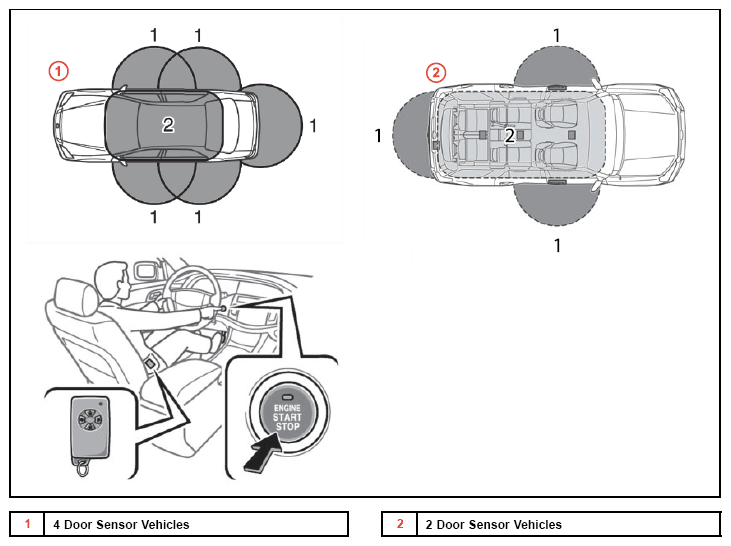

NOTE: Smart Key MUST be in actuation area No. 2 for this check (see below).

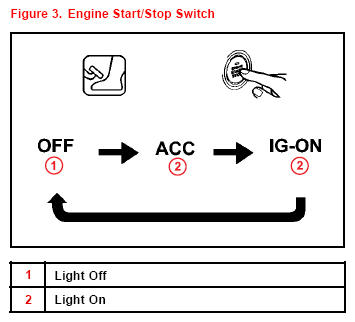

Check for proper activation of the "ENGINE START/STOP" switch.

Make sure the gear selector lever is in the "P" position.

Without depressing the brake pedal, press the "ENGINE START/STOP" switch and confirm the mode changes properly. From the "OFF" mode:

Press once. The power supply mode is in the "ACC" mode.
Press twice. The power supply mode is in the "IG-ON" mode.
Press three times. The power supply mode is in the "OFF" mode.

NOTE: If the "ENGINE START STOP" switch illuminator blinks in amber, refer to the Repair Manual.

Check the engine start/stop operation.
1. Make sure that the gear selector lever is in the "P" position.
2. When depressing the brake pedal, check that the green engine switch illuminator comes on, and push the "ENGINE START/STOP" switch to start the engine.
3. Push the switch again to stop the engine.
  NOTE:
  When the "ENGINE START/STOP" switch is turned OFF with the gear selector lever in a position other than "P," the vehicle electrical system will be in the "ACC" mode. When the door is opened the Smart Key System Warning Buzzer will sound indicating that the electrical system is not "OFF" when exiting the vehicle. This may result in a discharged battery. Be sure to turn OFF the engine AFTER shifting the gear selector lever to the "P" position.
  Checking Procedure:
  - Shift the gear selector lever to the "P" position (or check that the gear selector lever is in the "P" position).
  - Press the Engine Start/Stop switch once and check that the indicator light goes OFF.

Repeat steps 2 - 4 with each Smart Key.
