Automatic Transmission Serial Number Location (TC012-06)

Publication date: 2014-09-30
Reference number: TC012-06
Supersedes refnos: T-SB-0200-08, T-SB-0200-08 REV1, T-SB-0200-08 REV2

AUTOMATIC TRANSMISSION SERIAL NUMBER LOCATION

TECHNICAL SERVICE BULLETIN

Reference Number(s): T-SB-0200-08 Rev2, Date of Issue: September 30, 2014

TOYOTA:	2006 - 2014 4Runner, Avalon, Camry, Corolla, FJ Cruiser, Highlander, Land Cruiser, Matrix, RAV4, Sequoia, Sienna, Solara, Tacoma, Tundra, Venza, Yaris
SERVICE CATEGORY:	Drivetrain
SECTION:	Automatic Transmission/Transaxle
COPYRIGHT:	© 2018 Toyota, USA License Agreement TMS1002

Superceded Bulletin(s): T-SB-0200-08, Date of Issue: October 14, 2009, T-SB-0200-08, Date of Issue: August 07, 2008

APPLICABILITY

YEAR(S)	MODEL(S)	ADDITIONAL INFORMATION
2006 - 2014	4Runner, Avalon, Camry, Corolla, FJ Cruiser, Highlander, Land Cruiser, Matrix, RAV4, Sequoia, Sienna, Solara, Tacoma, Tundra, Venza, Yaris

NOTE: REVISION NOTICE September 30, 2014 Rev2:

Applicability has been updated to include 2011 - 2014 model year vehicles.
The Engine/Transmission Reference section has been updated.

October 14, 2009 Rev1:

Applicability has been updated to include 2010 model year vehicles.

Any previous printed versions of this bulletin should be discarded.

NOTE: SUPERSESSION NOTICE The information contained in this bulletin supersedes SB No. TC012-06.

Applicability has been updated to include 2008 - 2009 model year vehicles.

Service Bulletin No. TC012-06 is Obsolete and any printed versions should be discarded. Be sure to review the entire content of this bulletin before proceeding.

INTRODUCTION

The purpose of this bulletin is to assist in the identification and location of serial numbers on 2006 - 2014 model year automatic transmissions.

NOTE:

When writing a Field Technical and/or Product Report, the serial number MUST be provided.
Warranty policy requires shipment of ALL replaced transmissions to AWTEC, even if the transmission is replaced with a new service unit.
Warranty policy requires the Core Return Credit Request (CRCR) form be filled out correctly and returned with the core.
Per Toyota Warranty Policy & Procedures "Policy 4.23: OEM and Remanufactured Automatic Transmission Replacement":
- Whenever a remanufactured or OEM automatic transaxle/transmission is replaced, the serial number from the back of the failed component must be recorded on the repair order hard copy and entered in the "Transmission Serial Number" field which can be found on the "Additional Information" tab of the warranty claim. Serial numbers listed on the warranty claim are matched to the cores returned to AWTEC. Claims without a matching core will be debited back to the dealer.
- If any non-hybrid OEM or remanufactured automatic transaxles/transmissions and/or torque converters inadvertently appear on the Scrap Report, or if the Part Recovery Request Screen "Scrap Field" indicates "Y," DO NOT SCRAP THESE PARTS. All OEM and remanufactured automatic transaxles/transmissions and torque converters are still required to be shipped to AWTEC for remanufacture.

WARRANTY INFORMATION

OP CODE	DESCRIPTION	TIME	OFP	T1	T2
N/A	Not Applicable to Warranty	-	-	-	-

ENGINE/TRANSMISSION REFERENCE

TRANSMISSION MODEL	MODEL	MODEL YEAR	ENGINE	SERIAL NUMBER
AB60E/F	Land Cruiser	2008 - 2011 2013 - 2014	3UR	Example: 08 B T J 00001 08: Year of Manufacture B: Month of Manufacture (A - M, "I" not used) T: Plant Code J: Line Code 00001: 5-Digit Serial Number Location: Left Rear Section of Transmission Case Above Transmission Pan (as shown)
	Sequoia	2008 - 2014
	Tundra	2007 - 2014
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE/TRANSMISSION REFERENCE

TRANSMISSION MODEL	MODEL	MODEL YEAR	ENGINE	SERIAL NUMBER
A24##	Corolla	2006 - 2008	1ZZ	Example: 06 M Z T 00001 06: Year of Manufacture M: Month of Manufacture (A - M, "I" not used) Z: Plant Code T: Line Code 00001: 5-Digit Serial Number Location: Top Section of Transmission Case Near Vent Tube Transmission Pan (as shown)
A24##	Matrix	2006 - 2008	1ZZ
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE/TRANSMISSION REFERENCE

TRANSMISSION MODEL	MODEL	MODEL YEAR	ENGINE	SERIAL NUMBER
A34#E/F	4Runner	2010 - 2011	2TR	Example: 12 J R 7 00001 12: Year of Manufacture J: Month of Manufacture (A - M, "I" not used) R: Transmission Model Code 7: Line Code 00001: 5-Digit Serial Number Location: Right Rear Section of Transmission Case Above Transmission Pan (as shown)
A34#E/F	Tacoma	2006 - 2014	2TR
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE/TRANSMISSION REFERENCE

TRANSMISSION MODEL	MODEL	MODEL YEAR	ENGINE	SERIAL NUMBER
A750E/F	4Runner	2006 - 2009	2UZ	Example: 06 A T 2 00001 06: Year of Manufacture A: Month of Manufacture (A - M, "I" not used) T: Plant Code 2: Line Code 00001: 5-Digit Serial Number Location: Left Rear Section of Transmission Case Above Transmission Pan (as shown)
	4Runner	2006 - 2014	1GR
	FJ Cruiser	2007 - 2014	1GR
	Land Cruiser	2006 - 2007	2UZ
	Sequoia	2006 - 2014	2UZ
	Tacoma	2006 - 2014	1GR
	Tundra	2006 - 2009	2UZ
	Tundra	2006 - 2014	1GR
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE/TRANSMISSION REFERENCE

TRANSMISSION MODEL	MODEL	MODEL YEAR	ENGINE	SERIAL NUMBER
A760E/F	Sequoia	2010 - 2014	1UR	Example: 11 F TN 03262 11: Year of Manufacture F: Month of Manufacture (A - M, "I" not used) TN: Transmission Model Code 03262: 5-Digit Serial Number Location: Left Rear Section of Transmission Case Above Transmission Oil Pan (as shown)
A760E/F	Tundra	2010 - 2014	1UR
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE/TRANSMISSION REFERENCE

TRANSMISSION MODEL	MODEL	MODEL YEAR	ENGINE	SERIAL NUMBER
U14##	Highlander	2006 - 2007	2AZ	Example: 13 A Y 0 00001 13: Year of Manufacture A: Month of Manufacture (A - M, "I" not used) Y: Transmission Model Code 0: Plant Code 00001: 5-Digit Serial Number Location: Slightly Off-Center to the Left on Top of Bell Housing of Transmission (as shown)
	Matrix	2009 - 2014
	RAV4	2006 - 2008
	RAV4	2009 - 2012	2AR
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE/TRANSMISSION REFERENCE

TRANSMISSION MODEL	MODEL	MODEL YEAR	ENGINE	SERIAL NUMBER
U15## (Japan Built)	Camry	2006	1MZ 3MZ	Example: 11 H D 2 00001 11: Year of Manufacture H: Month of Manufacture (A - M, "I" not used) D: Transmission Model Code 2: Plant Code 00001: 5-Digit Serial Number Location: Slightly Off-Center to the Left on Top of Bell Housing of Transmission (as shown)
	Highlander	2006 - 2007	3MZ
	Highlander	2008 - 2013	2GR
	RAV4	2006 - 2012	2GR
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE/TRANSMISSION REFERENCE

TRANSMISSION MODEL	MODEL	MODEL YEAR	ENGINE	SERIAL NUMBER
U15## (TMMWV Built)	Avalon	2006 - 2007	2GR	Example: 5 12 01 00001 5: Plant Code (TMMWV) 12: Year of Manufacture 01: Month of Manufacture 00001: 5-Digit Serial Number Location: Slightly Off-Center to the Left on Top of Bell Housing of Transmission (as shown)
	Camry	2006	1MZ 3MZ
	Highlander	2008 - 2013	2GR
	Sienna	2006	3MZ
	Sienna	2007 - 2010	2GR
	Solara	2006 - 2008	3MZ
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE/TRANSMISSION REFERENCE

TRANSMISSION MODEL	MODEL	MODEL YEAR	ENGINE	SERIAL NUMBER
U24##	Highlander	2006 - 2007	2AZ	Example: 11 A Y 0 00001 11: Year of Manufacture A: Month of Manufacture (A - M, "I" not used) Y: Transmission Model Code 0: Plant Code 00001: 5-Digit Serial Number Location: Slightly Off-Center to the Left on Top of Bell Housing of Transmission (as shown)
	RAV4	2006 - 2008	2AZ
	RAV4	2009 - 2012	2AR
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE/TRANSMISSION REFERENCE

TRANSMISSION MODEL	MODEL	MODEL YEAR	ENGINE	SERIAL NUMBER
U250E	Camry	2006 - 2009	2AZ	Example: K 13 09 00001 K: Plant Code (K or T) 13: Year of Manufacture 09: Month of Manufacture 00001: 5-Digit Serial Number Location: Center of Transmission Case Behind Bell Housing Near Vent Hose (as shown)
	Corolla	2009 - 2013
	Matrix	2009 - 2013
	Solara	2006 - 2008
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE/TRANSMISSION REFERENCE

TRANSMISSION MODEL	MODEL	MODEL YEAR	ENGINE	SERIAL NUMBER
U250E	Camry	2008 - 2009	2AZ	Example: 08 A D 2 00001 08: Year of Manufacture A: Month of Manufacture (A - M, "I" not used) D: Transmission Model Code 2: Plant Code 00001: 5-Digit Serial Number Location: Center of Transmission Case Towards the Rear (as shown)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE/TRANSMISSION REFERENCE

TRANSMISSION MODEL	MODEL	MODEL YEAR	ENGINE	SERIAL NUMBER
U34##	Matrix AWD	2006	1ZZ	Example: 6 F E0001 6: Year of Manufacture A: Month of Manufacture (A - M, "I" not used) E0001: 5-Digit Alpha-Numeric Serial Number Location: Left side of Transmission Bell Housing Roughly 3/4 Up (as shown)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE/TRANSMISSION REFERENCE

TRANSMISSION MODEL	MODEL	MODEL YEAR	ENGINE	SERIAL NUMBER
U34##	Corolla	2009 - 2014	2ZR	Example: 13 A E0001 13: Year of Manufacture A: Month of Manufacture (A - C or 1 - 9) E0001: 5-Digit Alpha-Numeric Serial Number Location: On Top of Transmission Case Above Differential on Case Half Flange or Center of Transmission Case Behind Bell Housing Near Vent Hose (as shown)
	Matrix	2009 - 2014	2ZR
	Yaris	2007 - 2014	1NZ

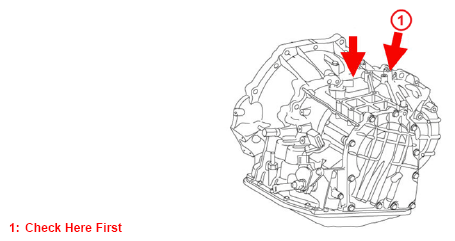

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 1: Check Here First

ENGINE/TRANSMISSION REFERENCE

TRANSMISSION MODEL	MODEL	MODEL YEAR	ENGINE	SERIAL NUMBER
U660#	Avalon	2008 - 2014	2GR	Example: 2 A 14 C 2 00001 2: Plant Code A: Transmission Model Code 14: Year of Manufacture C: Month of Manufacture 2: Line Code 00001: 5-Digit Serial Number Location: Top of Bell Housing Towards Front of Transmission - Serial Number will be Stamped in Transmission Case (as shown)
	Camry	2007 - 2014
	Venza	2009 - 2014
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE/TRANSMISSION REFERENCE

TRANSMISSION MODEL	MODEL	MODEL YEAR	ENGINE	SERIAL NUMBER
U760E	Camry	2010 - 2014	2AR	Example: 2 0 T 14 C 00001 2: Plant Code 0: Transmission Model Code T: Line Code 14: Year of Manufacture C: Month of Manufacture 00001: 5-Digit Serial Number Location: Top of Bell Housing Towards Front of Transmission - Serial Number will be Stamped in Transmission Case (as shown)
	Highlander	2009 - 2014	1AR
	RAV4	2013 - 2014	2AR
	Venza	2009 - 2014	1AR
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE/TRANSMISSION REFERENCE

TRANSMISSION MODEL	MODEL	MODEL YEAR	ENGINE	SERIAL NUMBER
K313	Corolla	2014	2ZR	Example: 2 B 14 H 1 00001 2: Plant Code B: Transmission Model Code 14: Year of Manufacture H: Month of Manufacture 1: Line Code 00001: 5-Digit Serial Number Location: Top of Bell Housing Towards Front of Transmission or Center of Transmission Case Behind Bell Housing Near Vent Hose (as shown)
