DTC C1298/98: Linear Solenoid Circuit: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

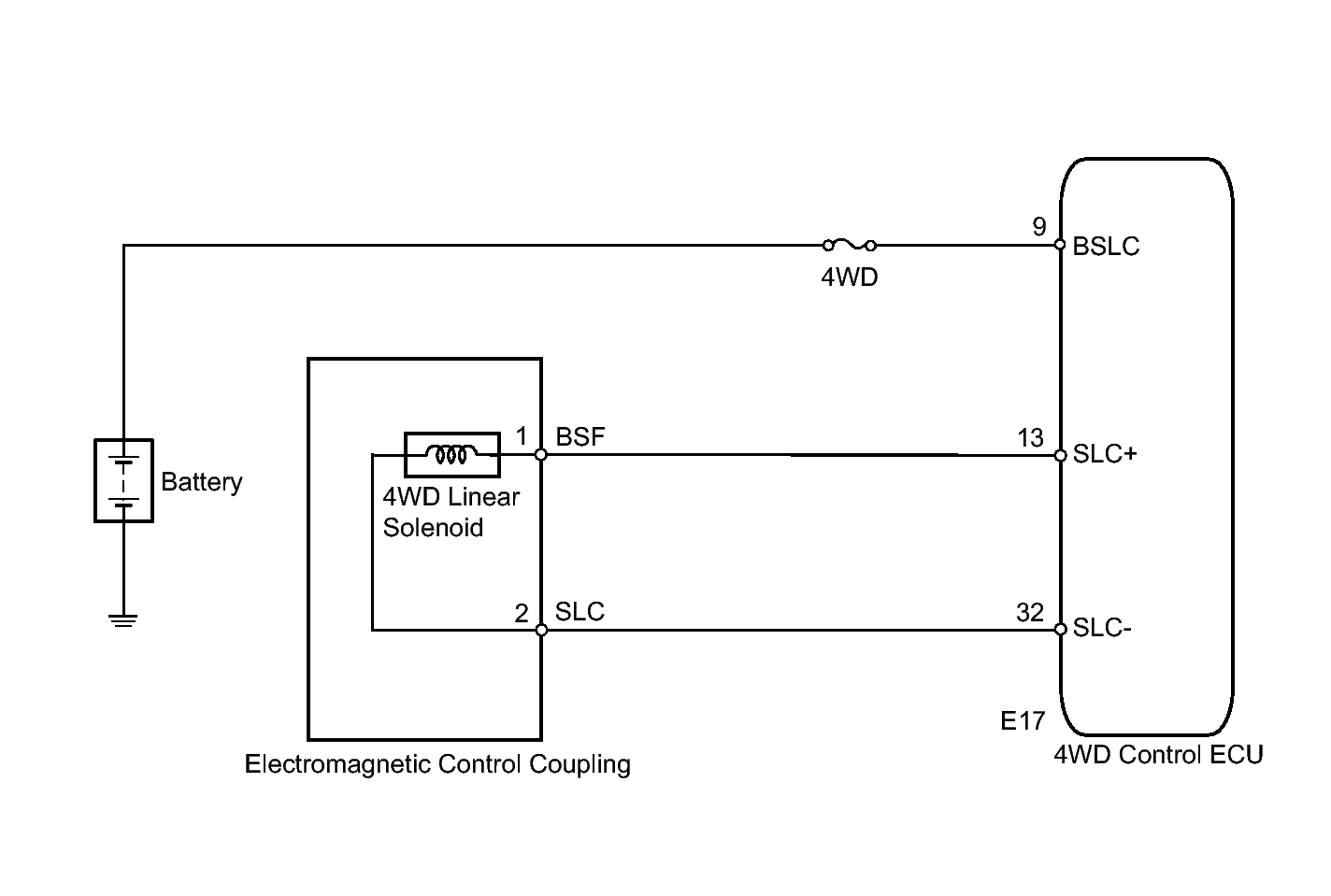

Fig 1: Linear Solenoid Circuit - Wiring Diagram
GTY236018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
