4WD Control Ecu: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

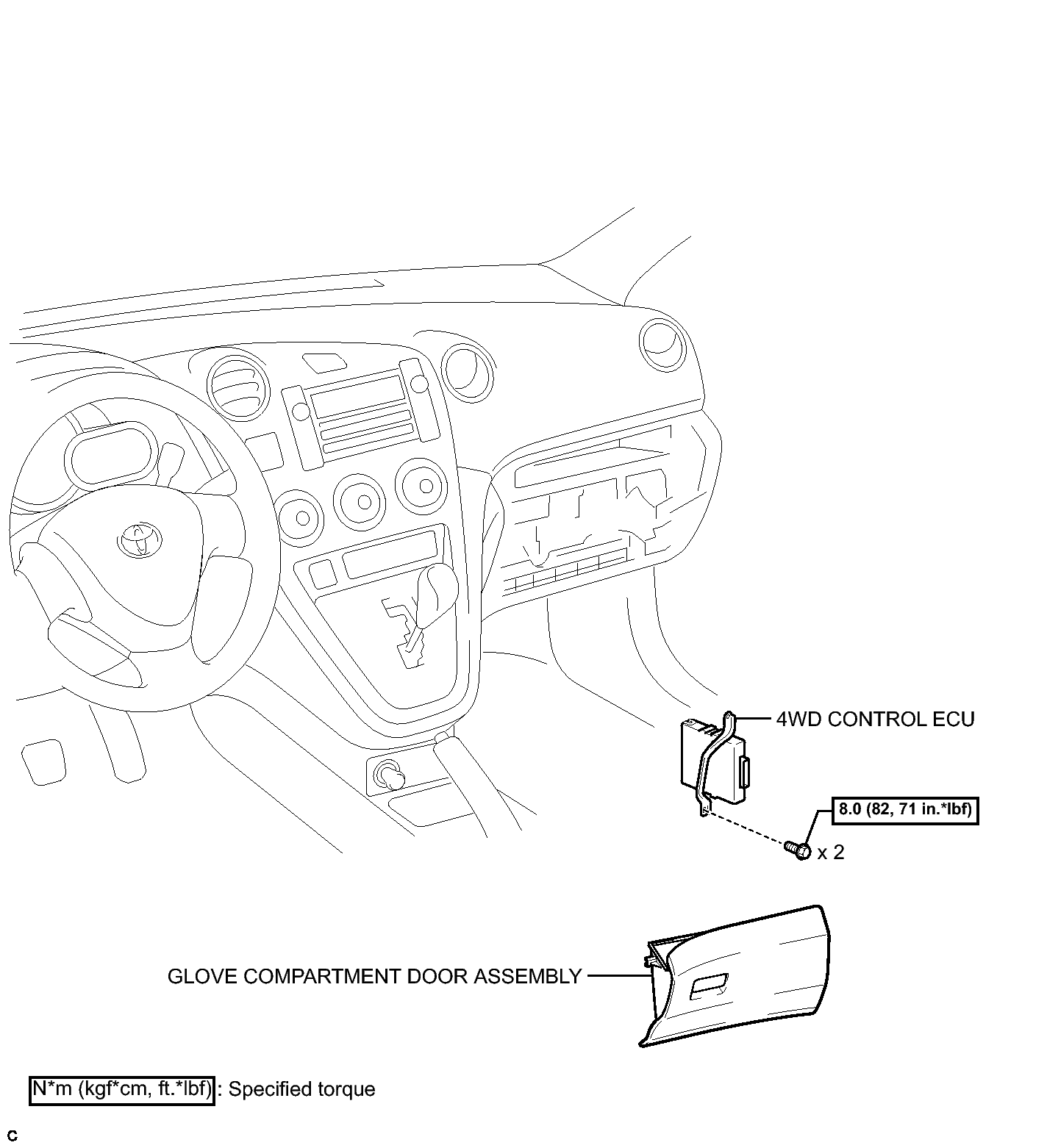

Fig 1: Identifying 4WD Control ECU Replacement Components With Torque Specifications
GTY245223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
