Power Window Master Switch: Inspection: Inspection
WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

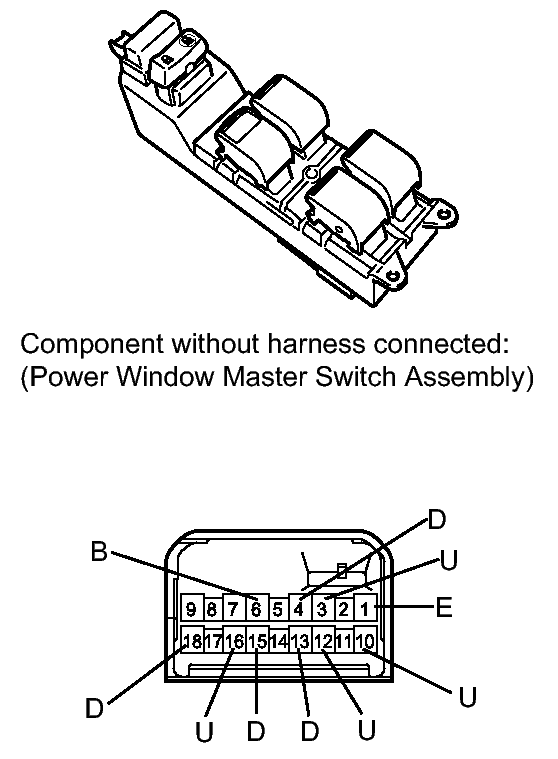

- INSPECT POWER WINDOW MASTER SWITCH ASSEMBLY
- Measure the resistance according to the value(s) in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard Resistance
Tester Connection Switch Condition Specified Condition 1 (E) - 4 (D)
3 (U) - 6 (B)UP (Driver side) Below 1 Ω 1 (E) - 3 (U)
6 (B) - 4 (D)DOWN (Driver side) Below 1 Ω 1 (E) - 3 (U)
6 (B) - 4 (D)AUTO DOWN (Driver side) Below 1 Ω 6 (B) - 16 (U)
15 (D) - 1 (E)UP (Passenger side) Below 1 Ω 6 (B) - 15 (D)
16 (U) - 1 (E)DOWN (Passenger side) Below 1 Ω 6 (B) - 12 (U)
13 (D) - 1 (E)UP (Rear LH) Below 1 Ω 6 (B) - 13 (D)
12 (U) - 1 (E)DOWN (Rear LH) Below 1 Ω 6 (B) - 10 (U)
18 (D) - 1 (E)UP (Rear RH) Below 1 Ω 6 (B) - 18 (D)
10 (U) - 1 (E)DOWN (Rear RH) Below 1 Ω If the result is not as specified, replace the power window master switch assembly.
- Measure the resistance according to the value(s) in the table below.
