Section 55 (Air Conditioning System (Service Information)): Condenser: Components: Illustration

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Condenser Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

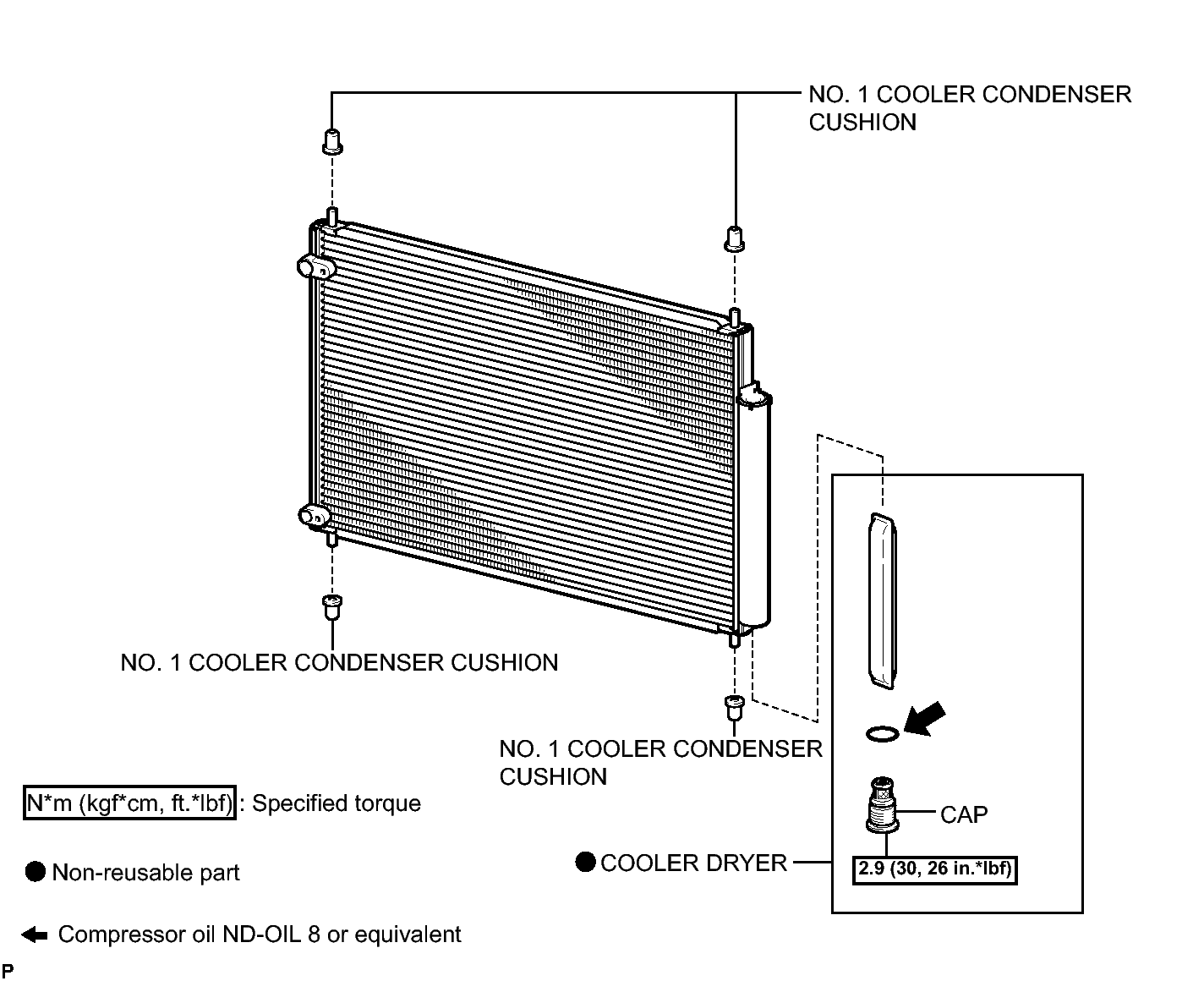

Fig 1: Identifying Condenser Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

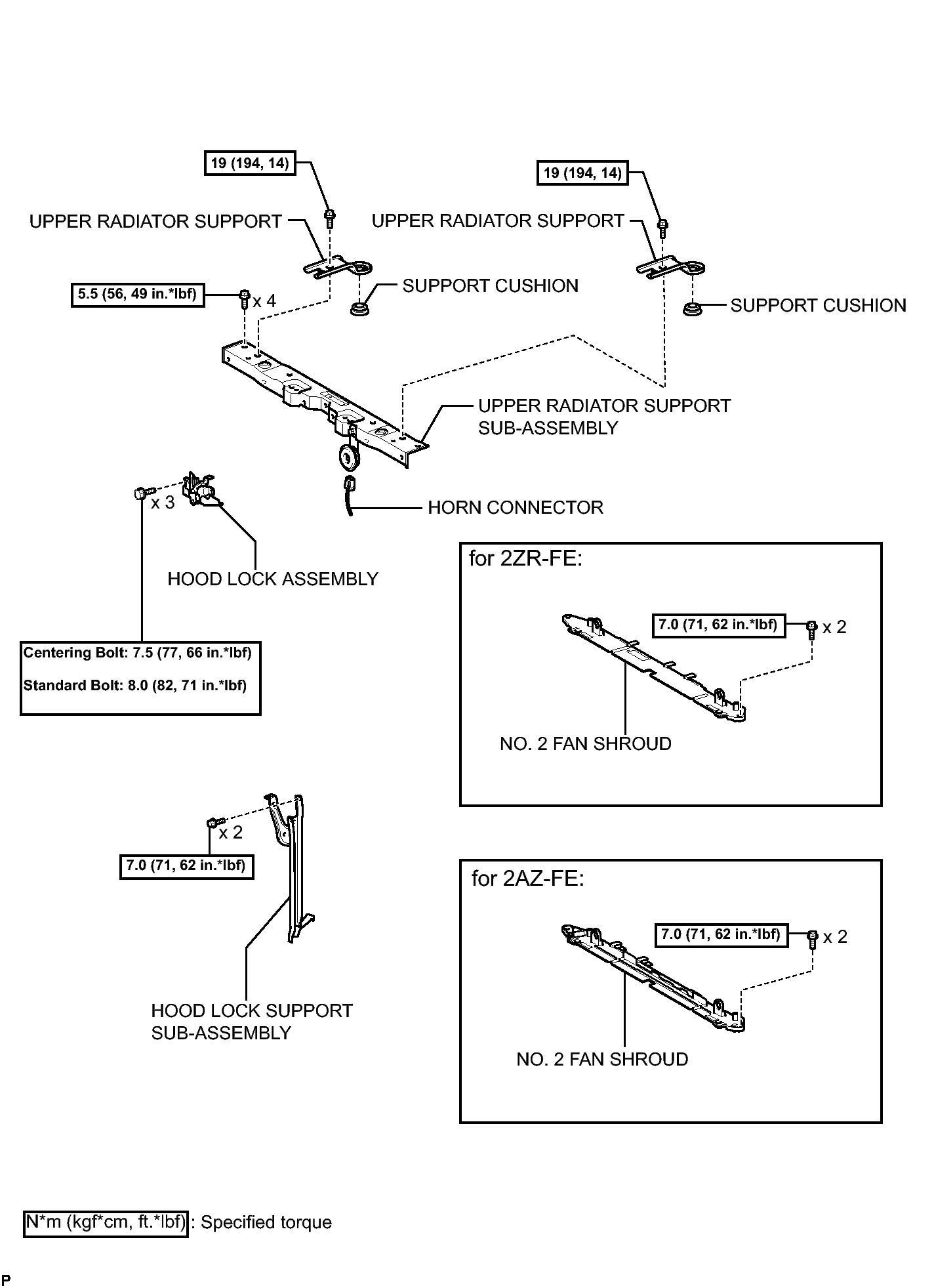

Fig 1: Identifying Condenser Replacement Components With Torque Specifications (3 Of 4)

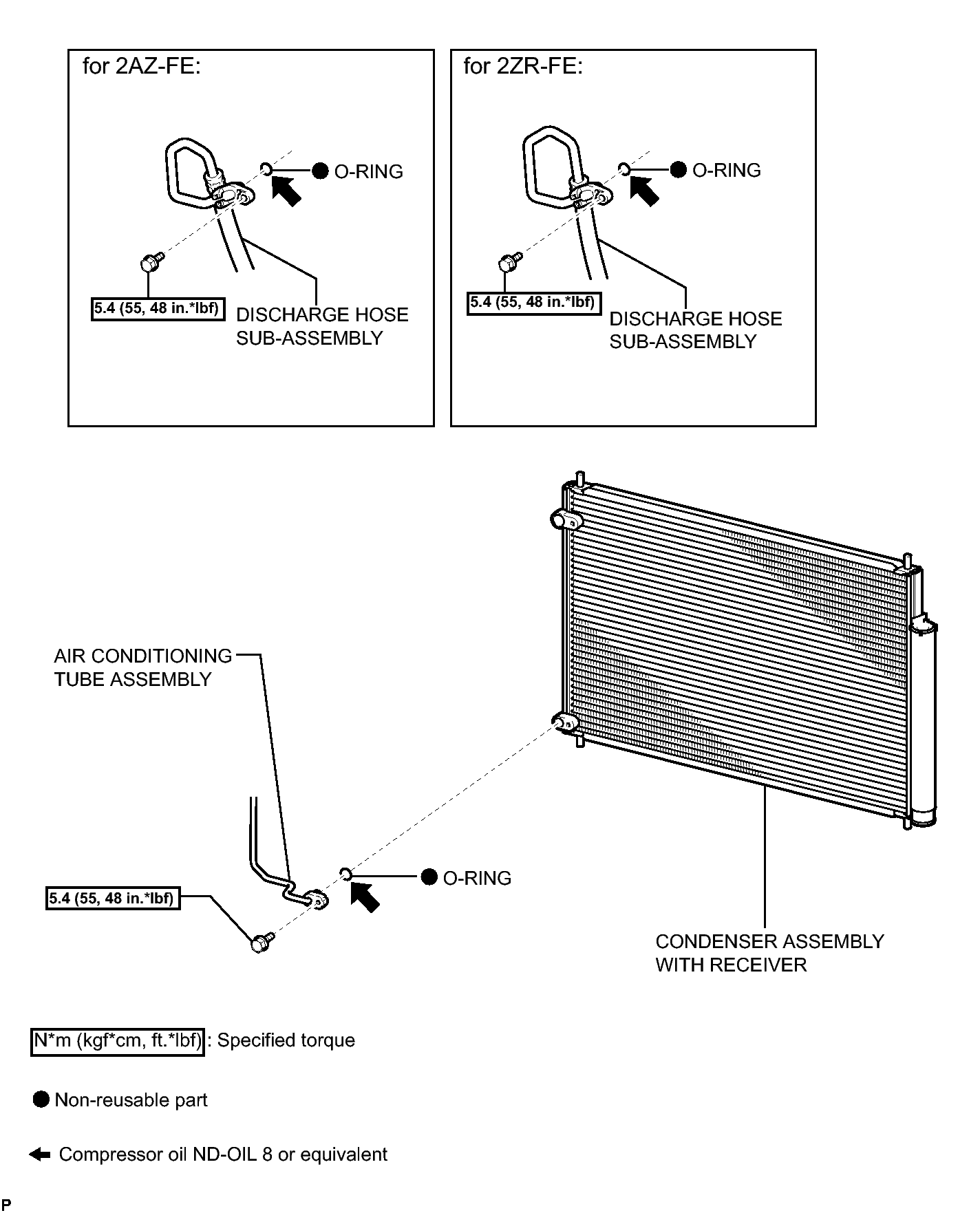

Fig 1: Identifying Condenser Replacement Components With Torque Specifications (4 Of 4)
