Accelerator Pedal: Installation: Installation
WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL ACCELERATOR PEDAL ASSEMBLY

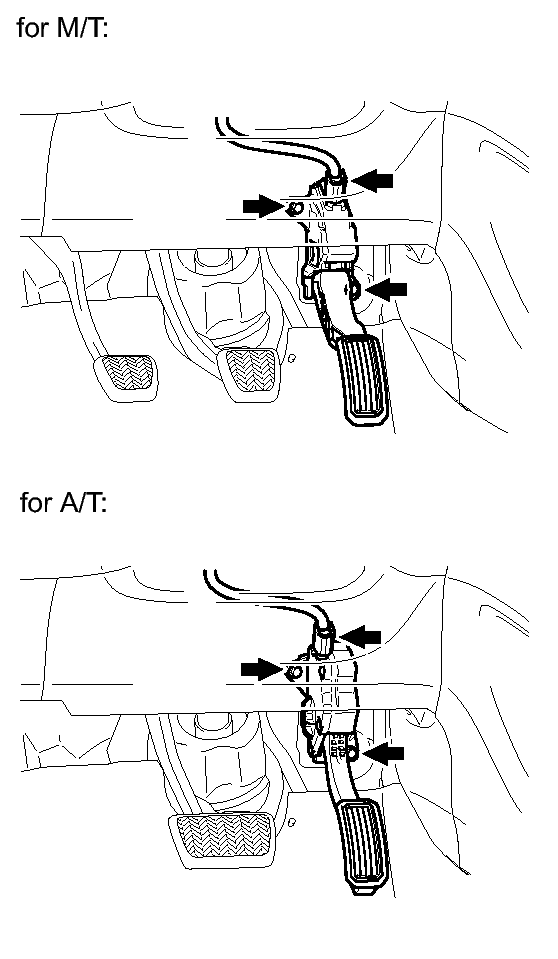

- Install the accelerator pedal assembly with the 2 bolts.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)
- Install the accelerator pedal assembly connector.
