ELECTRICAL KEY OSCILLATOR (for Front Side): Installation: Installation

WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL ELECTRICAL KEY OSCILLATOR
    1. Disconnect the connector.

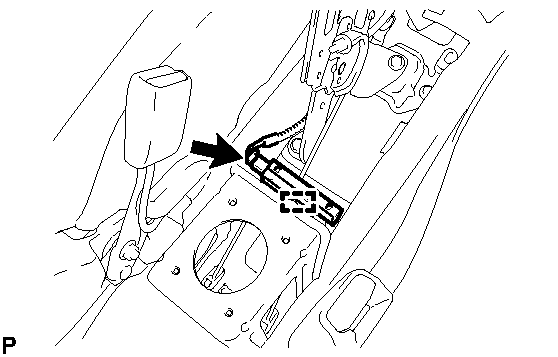

      Fig 1: Locating Electrical Key Oscillator Connector
      GTY200235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and the indoor electrical key oscillator.
  2. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 5
  3. INSTALL INSTRUMENT PANEL BOX ASSEMBLY  . Refer to INSTALLATION - Step 20
  4. INSTALL CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Automatic Transaxle)  . Refer to INSTALLATION - Step 22
  5. INSTALL CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Manual Transaxle)  . Refer to INSTALLATION - Step 21
  6. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle)  . Refer to INSTALLATION - Step 24
  7. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)  . Refer to INSTALLATION - Step 23
  8. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH  . Refer to INSTALLATION - Step 15
  9. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL RH  . Refer to INSTALLATION - Step 16
