Exhaust Manifold: Removal: Removal

WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE AIR FUEL RATIO SENSOR
Refer to REMOVAL
REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR
1. Remove the 4 bolts and No. 1 exhaust manifold heat insulator.

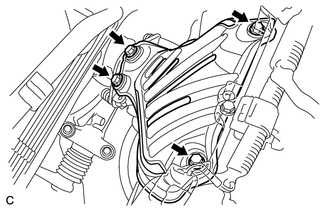

  Fig 1: Identifying No. 1 Exhaust Manifold Heat Insulator & 4 Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT EXHAUST PIPE ASSEMBLY
1. Disconnect the heated oxygen sensor connector.
2. Remove the 4 bolts and 4 compression springs.

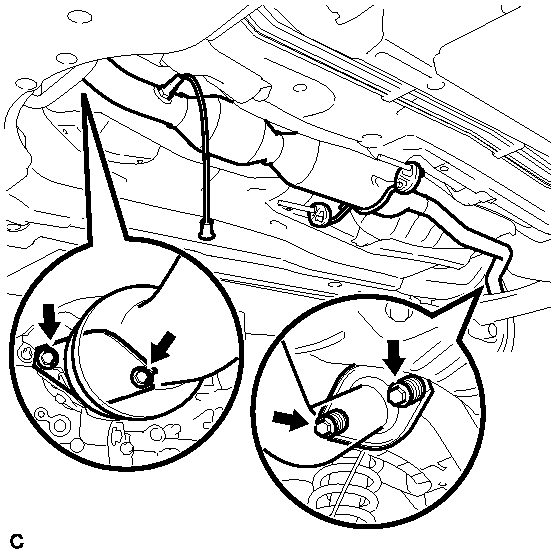

  Fig 2: Locating Bolts And Compression Springs
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the front exhaust pipe assembly from the 2 exhaust pipe supports.
4. Remove the 2 gaskets.
REMOVE MANIFOLD STAY
1. Remove the 2 nuts and 2 drive shaft heat insulator sub-assemblies.

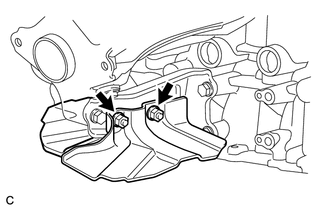

  Fig 3: Identifying 2 Drive Shaft Heat Insulator Sub-Assemblies & 2 Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 3 bolts and manifold stay.

  Fig 4: View Of Manifold Stay & Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE EXHAUST MANIFOLD
1. Remove the 5 nuts and exhaust manifold.

  Fig 5: View Of Exhaust Manifold Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the exhaust manifold gasket.
REMOVE NO. 2 EXHAUST MANIFOLD HEAT INSULATOR
1. Remove the 3 bolts and No. 2 exhaust manifold heat insulator.

  Fig 6: Identifying No. 2 Exhaust Manifold Heat Insulator & 3 Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
