Turn Signal and Hazard Warning Light: Notes

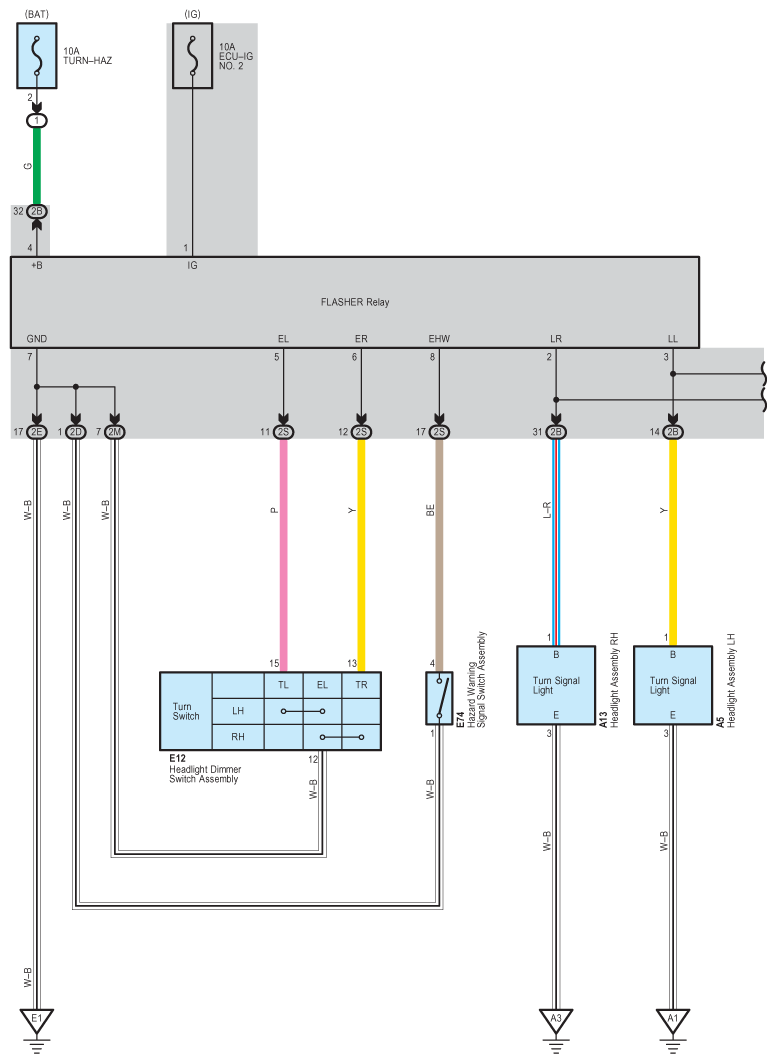

Fig 1: Turn Signal And Hazard Warning Light Wiring Diagram (1 Of 2)
G08798899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

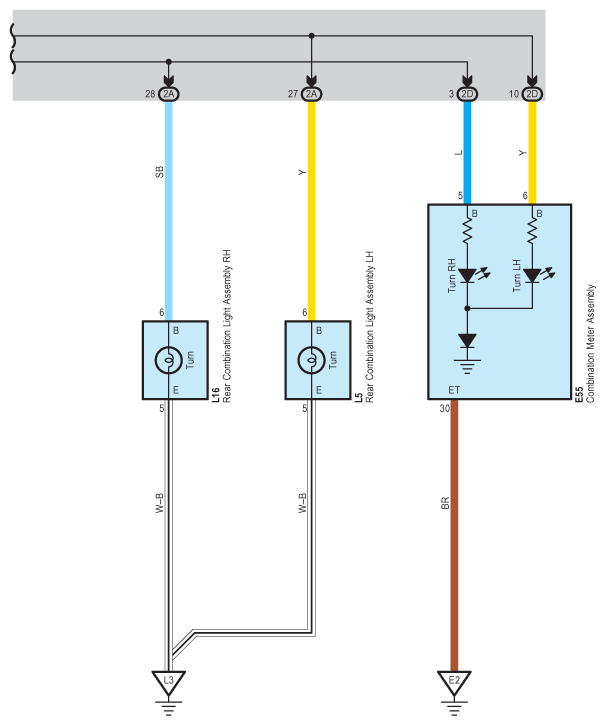

Fig 2: Turn Signal And Hazard Warning Light Wiring Diagram (2 Of 2)
G08798900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
