Center Airbag Sensor Assembly: Components: Illustration

Fig 1: Identifying Center Airbag Sensor Assembly Replacement Components (1 Of 2)
GTY293450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

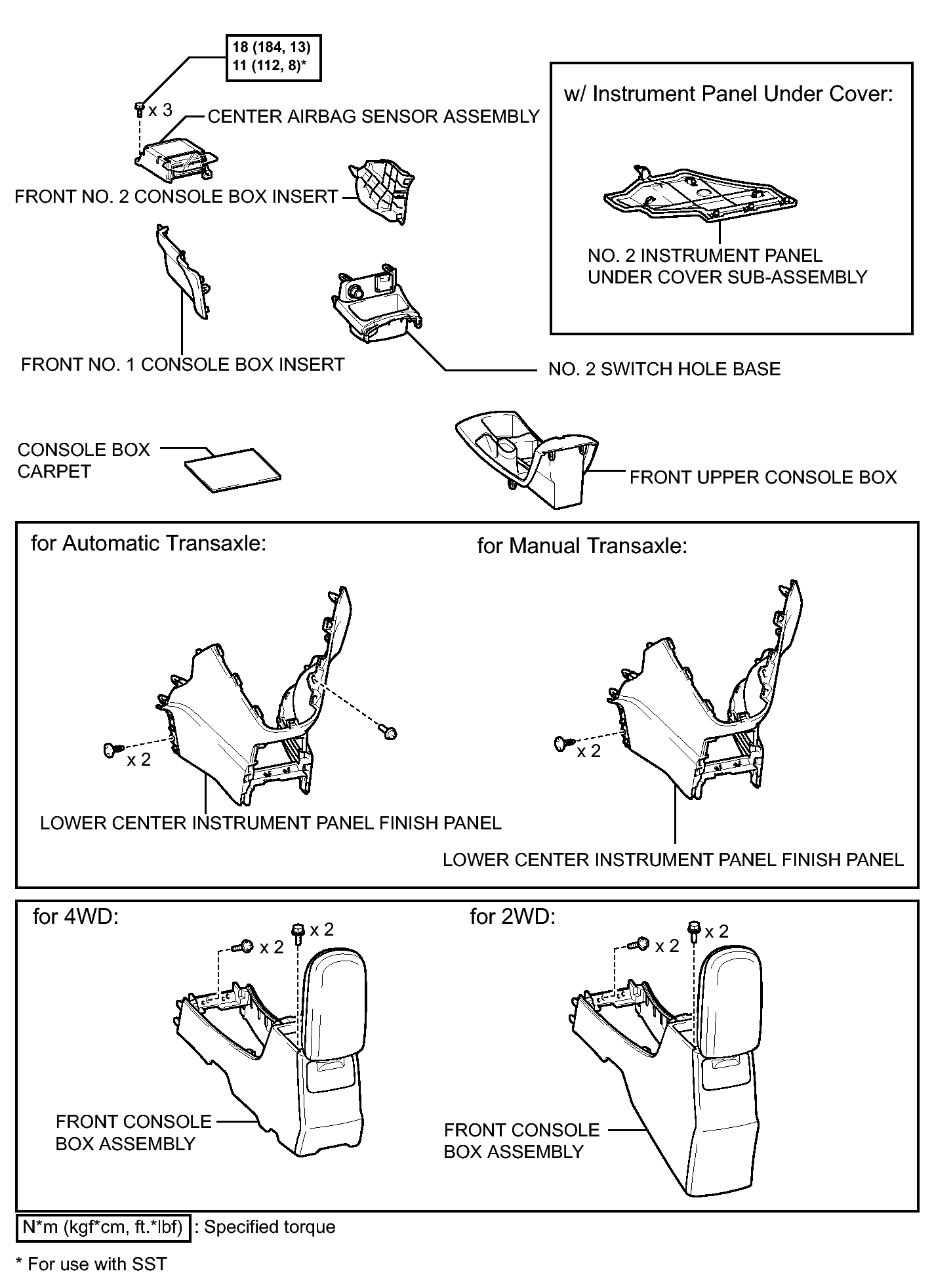

Fig 1: Identifying Center Airbag Sensor Assembly Replacement Components With Torque Specifications (2 Of 2)
GTY244878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
