Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch: Wiring Diagram

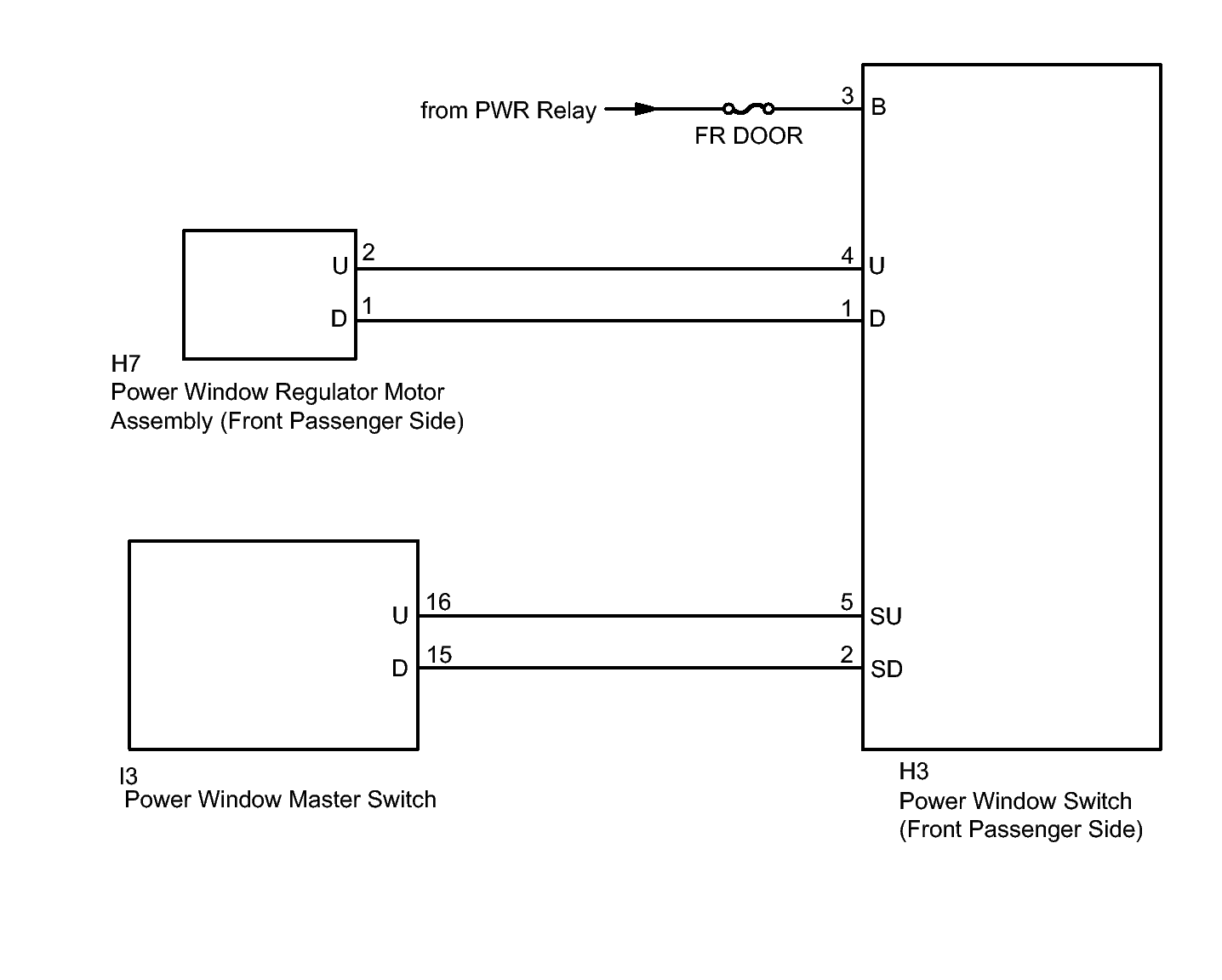

Fig 1: Identifying Power Window Switch (Front Passenger Side) Circuit Diagram
GTY290408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
